High Efficiency Low Noise Online UPS
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
EH5000 series |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Model Number: |
Eh5000 Series |
| Panel: |
LCD or LED, or Open New Case |
| Wide Input Voltage: |
145-275VAC |
| Output Voltage: |
220V 230V 240V Availble |
| 2kVA 3kVA: |
We Can Do 72VDC( with 6PCS Batteries Inside) |
| Power Factor: |
0.8 |
| High Efficiency: |
Yes Over 89% |
| Long Backup Time: |
Yes |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Most of Power Problems |
Product Description
High efficiency low noise online ups
EH5000 online UPS
1, power factor 0.8
2, bypass function
3, USB or RS232
4, 220V/230V/240V
5, single or three phase
1, wide input 160-300V
2, O transfer time
3, 1000va to 20kVA
4, LED or LCD display
5, tower or rack outlook
1, rack mounted UPS
2, IEC or universial sockets
3, protect against all power problems
4, on-battery power-on function
5, intelligent slot

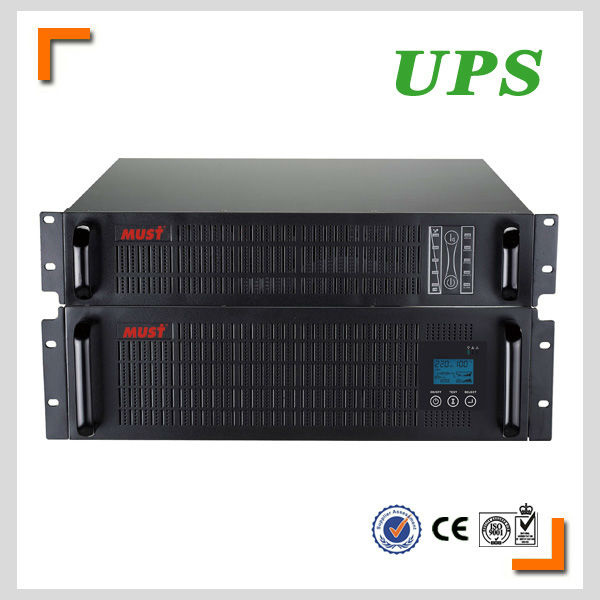

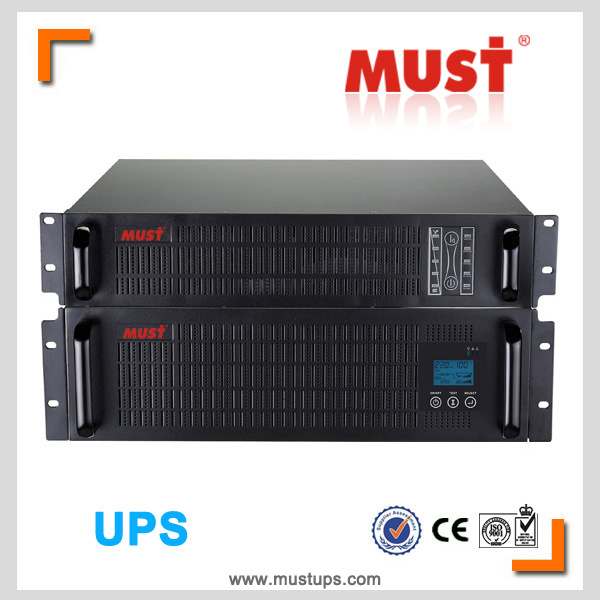

UPS PICTURES:
| Model | H1K(S) | H1.5K(S) | H2K(S) | H3K(S) |
| CAPACITY | 1000 VA/700 W | 1500 VA/1050 W | 2000 VA/1400 W | 3000 VA/2100 W |
| INPUT |
| Voltage Range | Low Line Transfer | 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or |
| 80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 % |
| (based on load percentage 100% - 80% / 80% - 70% / 70% - 60%/60% -0) |
| LowLine Comeback | 175 VAC ± 5 % or 85 VAC ± 5 % |
| High Line Transfer | 300 VAC ± 5 % or 150 VAC ± 5 % |
High Line
Comeback | 290 VAC ± 5 VAC or 143 VAC ± 3 VAC |
| Frequency Range | 40 Hz ~ 70 Hz |
| Phase | Single phase with ground |
| Power Factor | ≥ 0.99 @ 220-230 VAC (input voltage) |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ±3% |
Frequency Range
(Synchronized Range) | 47 ~ 53 Hz or 57 Hz ~ 63 Hz |
| Frequency Range (Bat. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load) | <= 4 % THD (Linear Load) |
| <= 6 % THD(Non-linear Load) | <= 7 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Bat. Mode) | Pure Sine Wave |
| EFFICIENCY |
| To AC Mode | 85% | 88% |
| To Battery Mode | 83% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH | 12 V / 7 AH | 12 V / 7 AH |
| Numbers | 3 | 3 | 8 | 8 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 41.0 VDC ± 1% | 102.1 VDC ± 1% |
| Long-run Model | Battery Type/Numbers | Depending on the capacity of external batteries |
| Charging Current (max.) | 8.0 A |
| Charging Voltage | 41.0 VDC ± 1% | 102.1 VDC ± 1% |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension DXWXH (mm) | 390 X145 X 210 | 455 X 190 X 330 |
| Net Weight (KGS) | 13 | 14 | 26 | 28 |
| Long-run Model | Dimension,DXWXH (mm) | 397 X 145 X 220 | 421 X 190 X 318 |
| Net Weight (KGS) | 7 | 13 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 45dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
