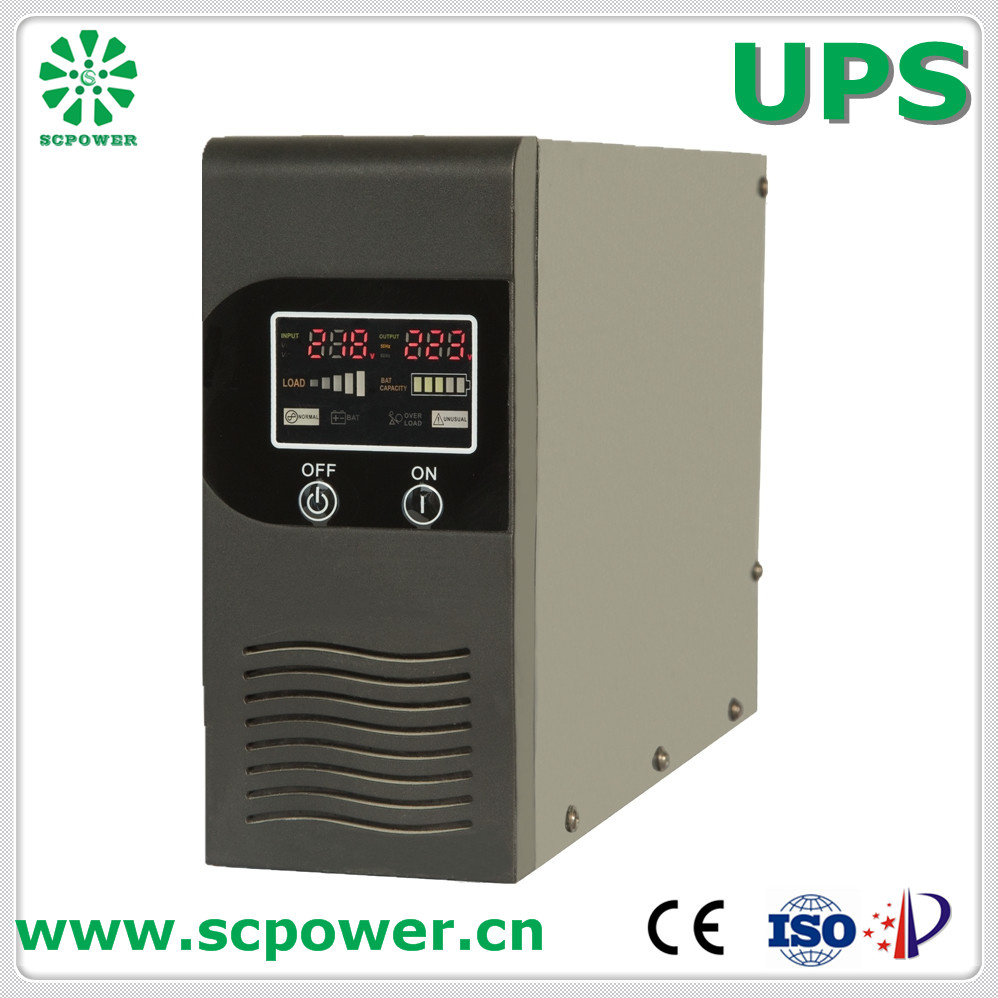

| Prod Model: |
REVE600VA |
| Color: |
Black |
| Certification: |
Ce,ISO,Patent |
| Output Voltage: |
Output Voltage |
| Frequency: |
50Hz ~ 60Hz |

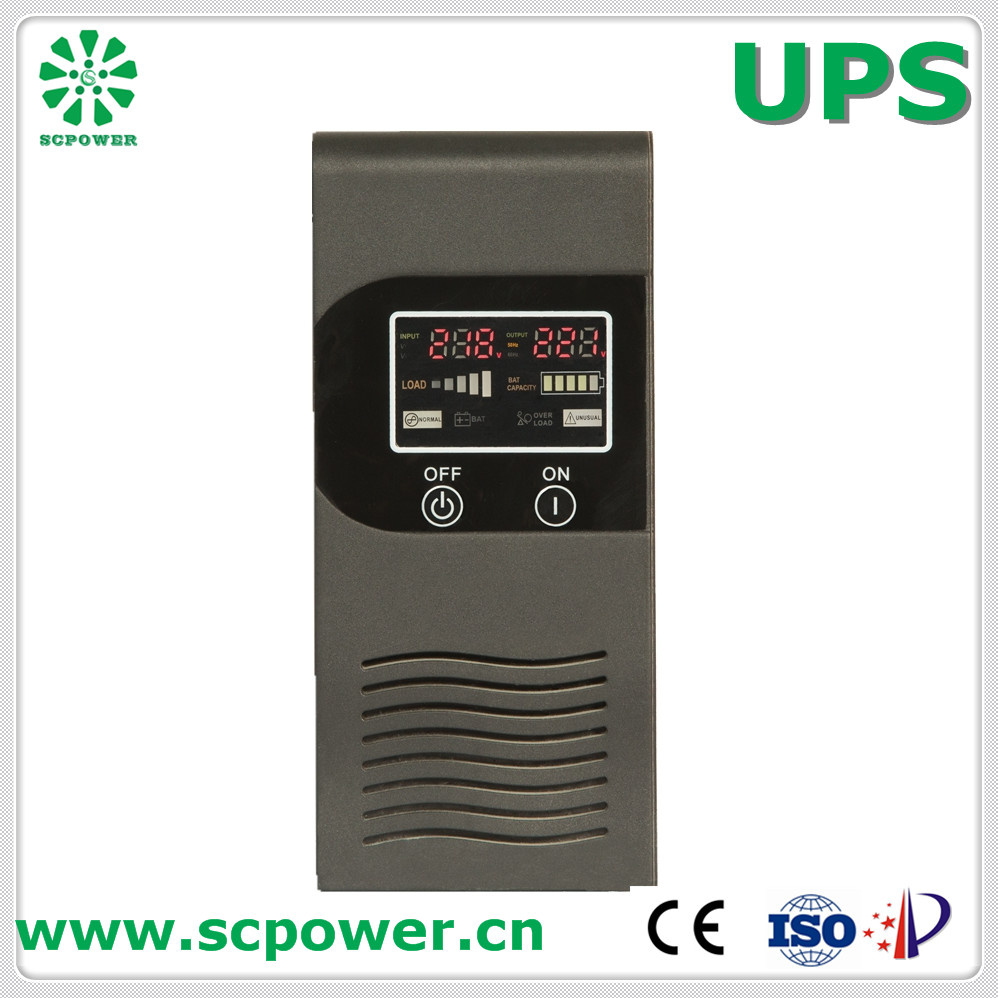

| Display: |
LCD or LED Optional |
| Battery Type: |
Lead-Acid Maintenance-Free Battery |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overvoltage |
| Brand: |
Sc Power |
Product Description
The Feature of our product.Excellent microprocessor control guarantees superior quality and reliability

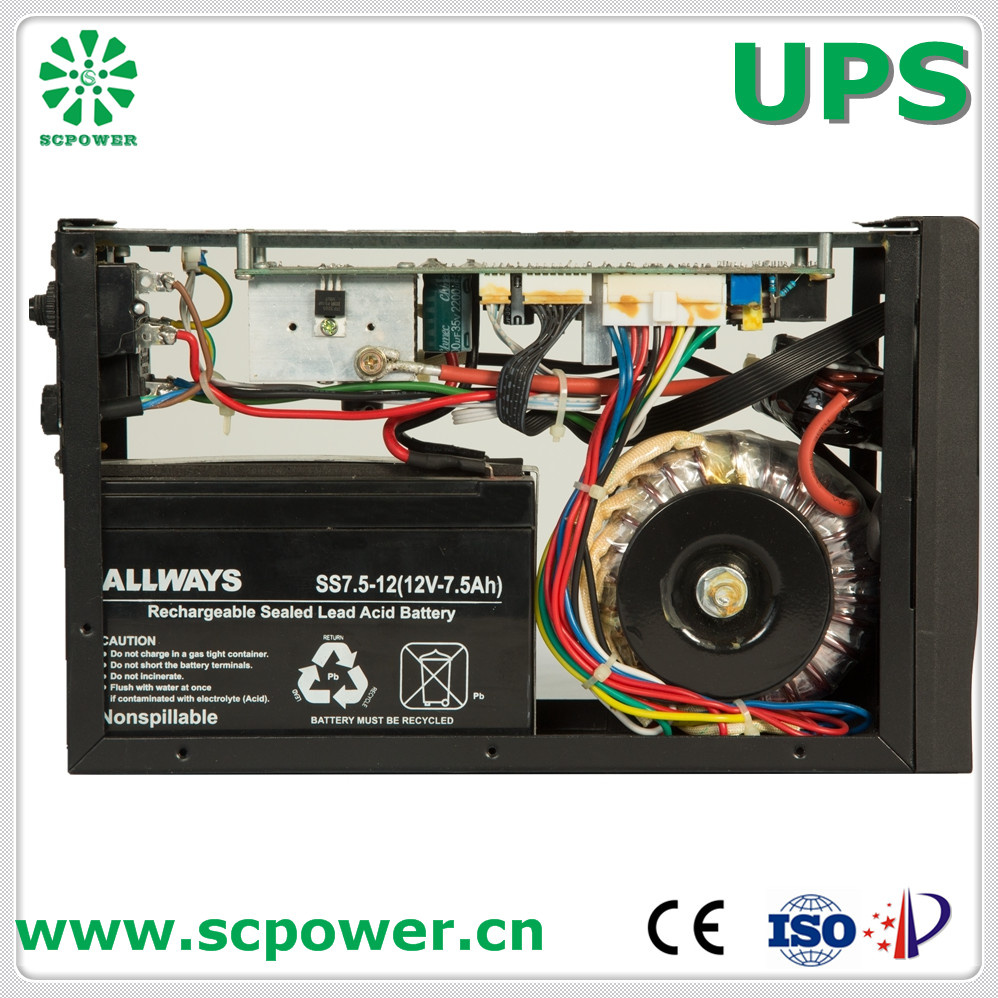

.High efficiency C.R.G.O. technology with output isolation transformer
.100% unbalance load design with lower energy loss
.Built-in super smart charger with battery capacity real-time auto-detection & auto-adapt
.Auto-adjustable 1~20A charging current
.DC cold start function
.ECO mode operation for energy saving
.Communication port on RS232 / RS485, SNMP adapter (optional)
.Adaptable with harsh environment of electric power, and compatible with generator mode
The Function Description of our product1.Single phase with pure sine wave
2.300VA-2KVA
3.Input voltage 110/120VAC or 220/230/240VAC
4.THD<3%
5.Complete in all respects with all protection devices for operation
| MODEL | | REVE 300 | REVE 600 | REVE 800 | REVE 1K | REVE 1.5K | REVE 2K |
| Phase | | Single phase with ground |
| Capacity | | 300VA/180W | 600VA/360W | 800VA/480W | 1000VA/600W | 1500VA/900W | 2000VA/1200W |
| Display | | LCD or Graphic LED |
| Casing Material | | Plastic |
| INPUT | | | | | | | |
| Voltage | | 110/120VAC or 220/230/240VAC |
| Voltage Range | | 81-145 VAC / 162 - 290 VAC |
| Frequency Range | | 50/60Hz (Auto sensing) |
| OUTPUT | | | | | | | |
| AV Voltage Regulation (Batt. Mode) | ± 10% |
| Frequency Range (Batt. Mode) | | 50Hz or 60Hz ± 1% |
| Transfer Time | | ≤4ms |
| Waveform (Batt. Mode) | | Pure Sinewave |
| BATTERY | | | | | | | |
Standard Model
built in battery | Battery Type | Lead-Acid Maintenance-Free Battery |
| Battery Type & Number | 12V/7Ah x 1 | 12V/7Ah x 2 | 12V/7Ah x 2 | 12V/7Ah x 4 | 12V/7Ah x 4 |
| Voltage | 13.8Vdc ± 1% | 27.5Vdc ± 1% | 55Vdc ± 1% |
| Charging Current | Default: 1.0A ± 10%; Max: 2.0A ± 10% |
| Typical Recharge Time | 4 hrs recover to 90% capacity | 6 hrs recover to 90% capacity |
Long-run Model
external battery | Battery Type & Number | Depending on application |
| Charging Current | 1A ~ 20A (Can adjust with software and LCD/LED control button) |
| Backup Time | Depends on Capacity and Volume of External Batteries |
| Charging Voltage | 13.8Vdc ± 1% | 27.5Vdc ± 1% | 55Vdc ± 1% |
| INDICATORS | | | | | | | |
| LCD or Graphic LED Display | | UPS Status, Load Level, Input/Output Voltage, Discharge Timer, and Fault Conditions |
| PROTECTION | | | | | | | |
| Full Protection | | Overload, discharge, and overcharge protection |
| ALARM | | | | | | | |
| Battery Mode | | Sounding every 4 seconds |
| Low Battery | | Sounding every second |
| Overload | | Sounding twice every second |
| Fault | | Continously sounding |
| PHYSICAL | | | | | | | |
| Dimension D x W x H (mm) | | 328 x 80 x 182 | 328 x 80 x 182 | 397 x 146 x 205 |
| Net Weight (kgs) | | 3.2 | 4.1 | 4.8 | 5.6 | 12.2 | 13.7 |
| ENVIRONMENTAL | | | | | | | |
| Humidity | | 20-90% RH @ 0-40ºC (Non-condensing) |
| Noise Level | | Less than 40dB | Less than 45dB | Less than 55dB |
| MANAGEMENT | | | | | | | |
| Smart RS-232 | | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC |
| USB | |
