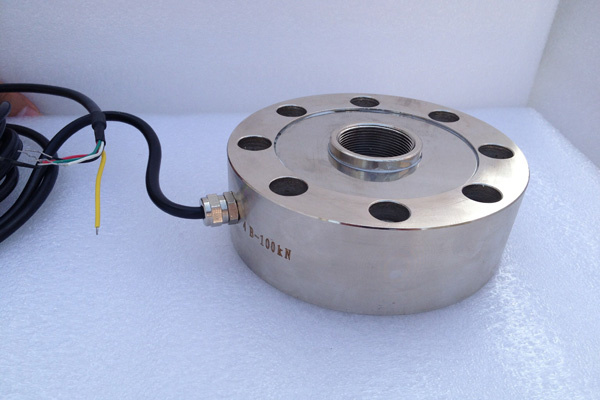

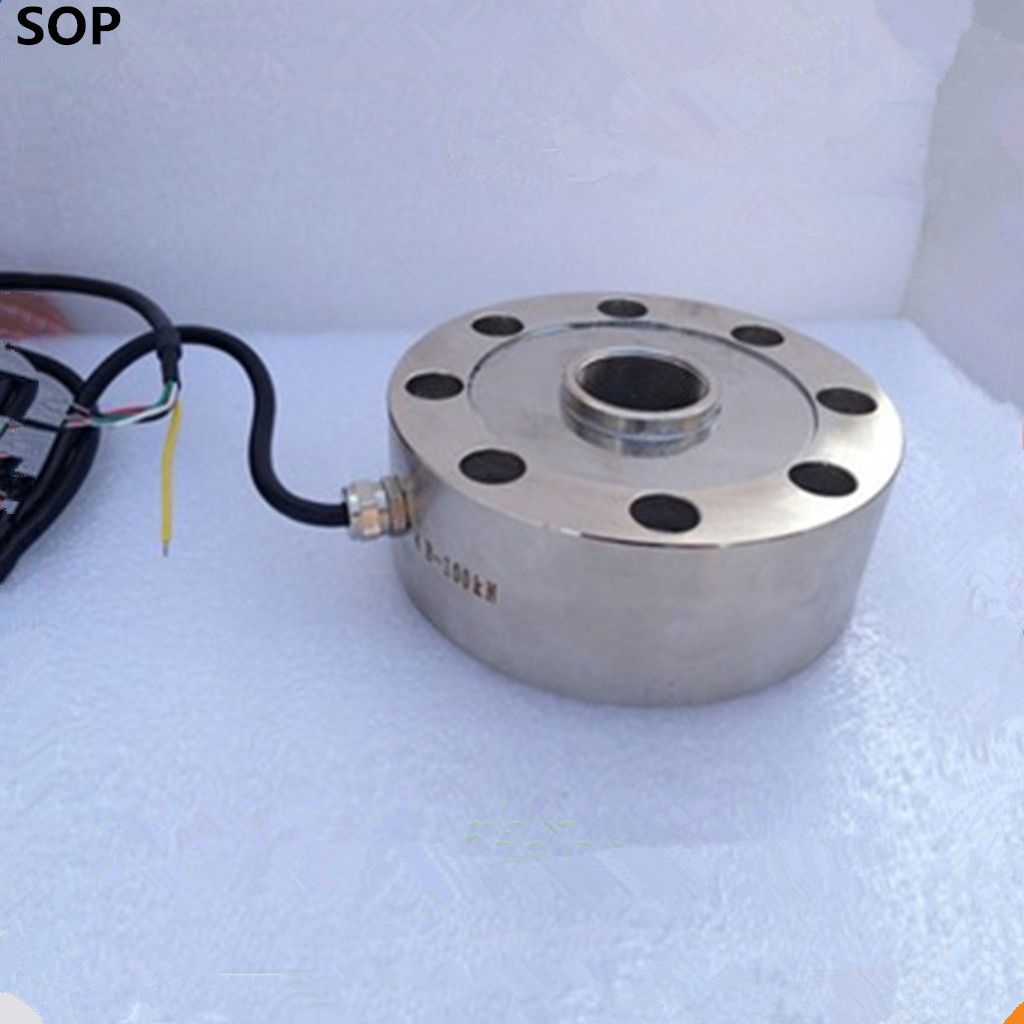

High Efficiency Stainless Steel Spoke Type Load Cell for Distributors

Name: High Efficiency Stainless Steel Spoke Type Load Cell for Distributors
Brand: all-electronics-online.com
SKU: 825384645
Availability: InStock
Rating: 4.3 (22 reviews)

Price:	US $ 500-600/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLP204-100kib
Accuracy Class:	C1
Excitation Voltage:	9-12VDC
Temperature:	-35~+65
Type:	Spoke Type
Warranty:	12 Months
Usage:	Capacitive Pressure Transmitter
Measuring Medium:	Steam, Gas, Liquid

Product Description

High Efficiency Stainless Steel Spoke Type Load Cell for Distributors

Parameter Table:

Scale Range	25T 50T 50kib 100kib
Accuracy Class	C1
Comprehensive Error	±0.05%FS
Sensitivity	3.0±0.01mv/v
Need To Change	±0.03%FS/30min
Zero Output	1.0%FS
Input Impdance	700±10Ω
Insulation Resistance	700±5Ω
Temperature Sensitivity	≤500MΩ (100VDC)
Temperature Effect Zero	±0.05%FS10ºC
Temperature Make Up	-10~±40ºC
Temperature	-35~±65ºC
Excitation Voltage	9-12VDC
Safe Overload	150%
Ultimate Overload	200%
Degree Of Protection	IP66

Spoke Load Cell Feature:
high-quality stainless steel material
simple structure
convenient to install and maintenance
high comprehensive precision
low setting height
Protection grate is IP65
good long -term stability

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Common Problems and solutions:

1. insufficient power supply capacity Zhao-----electronic ruler shows fluctuations to provide a stable power supply capacity

2. FM interference and electrostatic disturbance----electronic device displays the number fluctuation signal lines and electric lines to separate on-line slot

3. display data regularly beat, or fail to display data----check that the line is broken or shorted

4. caused by poor installation will display digital watches----install need for neutral linear displacement sensor is very good, but parallelism can allow +-0.5MM errors, point can allow +-12 of error

5. sensor wiring error----correctly connect the power cord and output lines.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
