| Prod Model: |
30va 100va 250va 750va 1000va 3000va 5000va 7000va |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
3va 6000va Toroidal Core Power Transformer |
| Coil Structure: |
CE UL Toroidal Transformer |
| Coil Number: |
Autotransformer |
| Toroidal Transformer Type: |
500va Copper Wire Toroidal Transformer |
| Transformer For Solar Equipment: |
Low Rise High Efficiency Toroidal Transformer |
| Leads - Length And Insulation: |
Secondary Windings Connections |
| 95% Efficiency: |
Transformer Toroidal Price Design Manufacture |
| Design Manufacture 500V Solar Transforme: |
24V 194va 25va 6000va Toroidal Transformer |
| Short-Circuit-Proof Safety: |
Isolating Transformer |
| Test Process1: |
Iinductive Voltage Test, Temperature Rise Test |
| Application: |
Electronic |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Coil: |
Toroid Core |
| Certification: |
CE |
| Usage: |
Solar Enenrgy,Solar Inverter Toroidal Transformer |
| Brand: |
Grewin Solar Inverter Toroidal Transformer |
Product Description
Name:

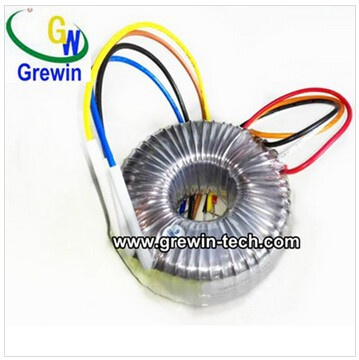

High Efficiency Transformer Custom Made Transformer 300va 500va
1. technical parameters.
<| Toroidal Transformer |
| Power | Dimension (mm) | Efficiency % | Current | Weight |
| GWB20VA | 60*25 | >82 | 10mA | 1.200.45kgs |
| GWB30VA | 65*35 | >84 | 10mA | 1.200.50kgs |
| GWB50VA | 70*40 | >88 | 20mA | 1.151.30kgs |
| GWB100VA | 85*60 | >90 | 30mA | 1.151.50kgs |
| GWB120VA | 90*75 | >93 | 40mA | 1.102.00kgs |
| GWB200VA | 110*80 | >93 | 100mA | 1.102.80kgs |
| GWB300VA | 120*80 | >94 | 150mA | 1.083.50kgs |
| GWB500VA | 130*80 | >94 | 150mA | 1.085.00kgs |
| GWB800VA | 140*85 | >94 | 200mA | 1.086.50kgs |
| GWB1000VA | 140*85 | >95 | 300mA | 1.058.50kgs |
| GWB1500VA | 160*90 | >95 | 400mA | 1.0512.0kgs |
| GWB2000VA | 180*90 | >95 | 400mA | 1.0515.0kgs |
| GWB4000VA | 220*95 | >95 | 500mA | 1.0520.0kgs |
| GWB6000VA | 250*95 | >95 | 500mA | 1.0525.0kgs |
<| Toroidal Transformer I |
| Power | Thermal Fuse | Current Fuse | Dimension (mm) | Approval Mark |
| GWB25VA | 135ºC 250V 2A | 250V T 2A | 80*35 | CE UL TUV CQC |
| GWB30VA | 135ºC 250V 2A | 250V T 2A | 83*35 | CE UL TUV CQC |
| GWB40VA | 135ºC 250V 2A | 250V T 2A | 87*35 | CE UL TUV CQC |
| GWB50VA | 135ºC 250V 2A | 250V T 2A | 93*34 | CE UL TUV CQC |
| GWB60VA | 135ºC 250V 2A | 250V T 2A | 93*35 | CE UL TUV CQC |
| GWB80VA | 135ºC 250V 2A | 250V T 2A | 102*35 | CE UL TUV CQC |
| GWB105VA | 135ºC 250V 2A | 250V T 2A | 114*38 | CE UL TUV CQC |
| GWB120VA | 135ºC 250V 2A | 250V T 2A | 113*41 | CE UL TUV CQC |
| GWB140VA | 135ºC 250V 2A | 250V T 2A | 114*42 | CE UL TUV CQC |
| GWB150VA | 135ºC 250V 2A | 250V T 2A | 117*43 | CE UL TUV CQC |
| GWB160VA | 135ºC 250V 5A | 250V T 5A | 120*43 | CE UL TUV CQC |
| GWB180VA | 135ºC 250V 5A | 250V T 5A | 125*42 | CE UL TUV CQC |
| GWB200VA | 135ºC 250V 5A | 250V T 5A | 124*49 | CE UL TUV CQC |
| GWB220VA | 135ºC 250V 5A | 250V T 5A | 127*50 | CE UL TUV CQC |
| GWB240VA | 135ºC 250V 5A | 250V T 5A | 129*48 | CE UL TUV CQC |
| GWB250VA | 135ºC 250V 5A | 250V T 5A | 130*52 | CE UL TUV CQC |
| GWB260VA | 135ºC 250V 5A | 250V T 5A | 130*53 | CE UL TUV CQC |
| GWB280VA | 135ºC 250V 5A | 250V T 5A | 138*45 | CE UL TUV CQC |
| GWB300VA | 135ºC 250V 5A | 250V T 10A | 138*54 | CE UL TUV CQC |
| GWB320VA | 135ºC 250V 5A | 250V T 10A | 138*54 | CE UL TUV CQC |
| GWB340VA | 135ºC 250V 5A | 250V T 10A | 138*54 | CE UL TUV CQC |
| GWB360VA | 135ºC 250V 5A | 250V T 10A | 142*55 | CE UL TUV CQC |
| GWB380VA | 135ºC 250V 5A | 250V T 10A | 146*54 | CE UL TUV CQC |
| GWB400VA | 135ºC 250V 5A | 250V T 10A | 148*56 | CE UL TUV CQC |
| GWB420VA | 135ºC 250V 5A | 250V T 10A | 148*56 | CE UL TUV CQC |
| GWB440VA | 135ºC 250V 5A | 250V T 10A | 148*60 | CE UL TUV CQC |
| GWB460VA | 135ºC 250V 5A | 250V T 10A | 149*64 | CE UL TUV CQC |
| GWB480VA | 135ºC 250V 5A | 250V T 10A | 153*59 | CE UL TUV CQC |
| GWB500VA | 135ºC 250V 5A | 250V T 10A | 155*62 | CE UL TUV CQC |
2. We have abtained VDE,UL,CE,ISO9000 approval .we guarantee quality is the first.
Test process1 .No-load test (included no-load voltage,no load current and no load loss)
2.iInductive voltage test
3. Load test (load voltage and temperature rise
4. Temperature rise test .
5.Insulated resistance
6.Hi-pot test
7.Leakage indutance test
8.DC resistance test
9.Surface inspection.
3.customized audio toroidal transformer and solar energy transformer Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .
1). Application:
1. audio equipment
2. electric control
3. computer
4. solar device
5.telecommunications
6.high-end and middle-end vedio etc
2). Advantages:
1.High quality 100% copper core
2.a full range of toroidal transformer3.Specially sales and technical services:5-10Years
4.With 14 years' producing history in transformer induatry
5.our company have cooperated with many customers around the world and gained good reputation at home and abroad.
3).Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products by customer design. And the specification is for reference, if has the change further, please take the material object as the standard.
4).GREWIN'S Dimension :
External diameter: 40mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)

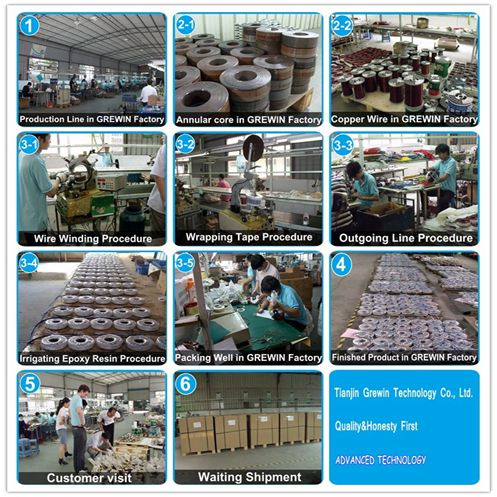

4.product procedure
The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:
