| Prod Model: |
UPS transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Transformer |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Grewin Toroidal Transformer |
Product Description

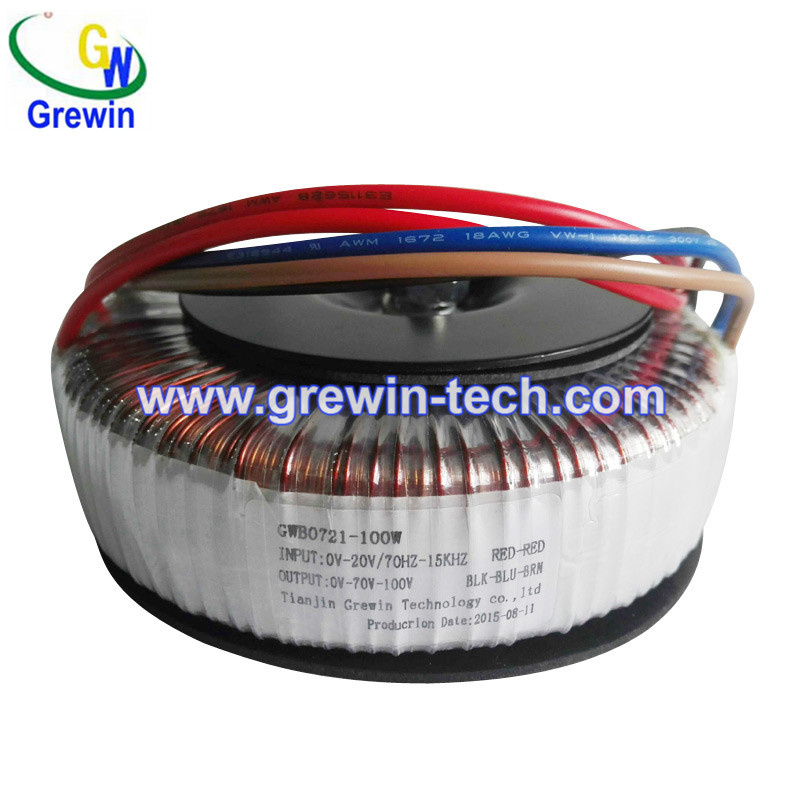

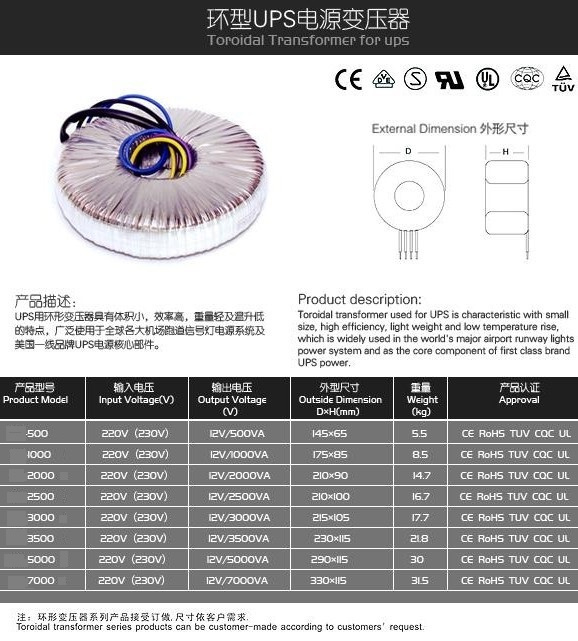

UPS toroidal transformer :
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .
Be used widely such as audio equipment,communication,new energy areas,Electrical control,Cable TV network etc.

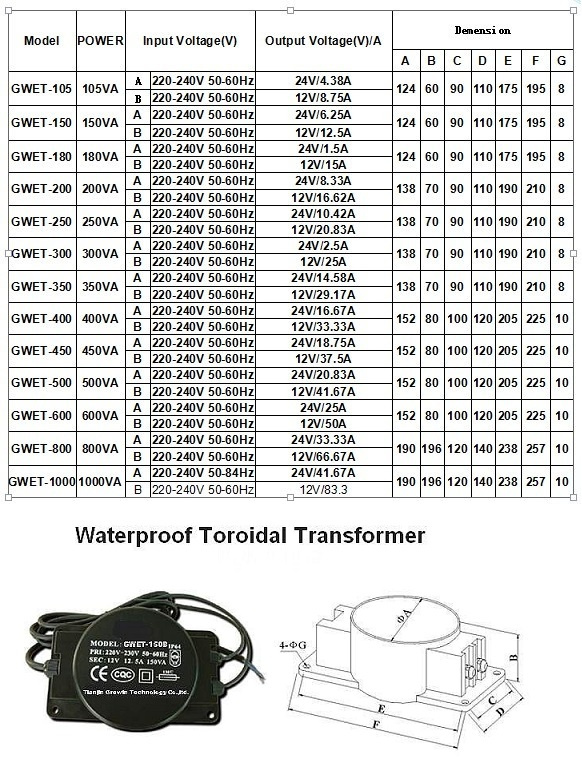

Waterproof Encapsulated transformer Application:
1. Garden light
2. LED underwater lamp
3.LED Ground light
4.Outdoor power Supply
5.Audio sound field
6.Stage lighting
7.Outdoor lighting
8.Christmas Lights
Advantages:
1.100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:25VVA-6KVA
| 20VA | Φ 60 | H25 | >82 | 10mA | 1.2 0.45kgs |
| 30VA | &Phi65 | H35 | >84 | 10mA | 1.20 0.50kgs |
| 50VA | &Phi70 | H40 | >88 | 20mA | 1.15 0.80kgs |
| 60VA | &Phi75 | H50 | >88 | 20mA | 1.15 1.00kgs |
| 80VA | &Phi80 | H55 | >90 | 30mA | 1.15 1.30kgs |
| 100VA | &Phi85 | H60 | >90 | 30mA | 1.15 1.50kgs |
| 120VA | &Phi90 | H75 | >93 | 40mA | 1.10 2.00kgs |
| 150VA | &Phi100 | H75 | >93 | 50mA | 1.10 2.30kgs |
Installation:
PCB mounting type with epoxy resin
Power range: 6VA-15VA
Application: UPS power supply
Certificate
The certificate of our transformer has CE CQC RoHs UL .
