FUAN XINRUI MACHINERY CO., LTD. >> High Efficiency Ye3 Cast Iron Induction Electric Motor

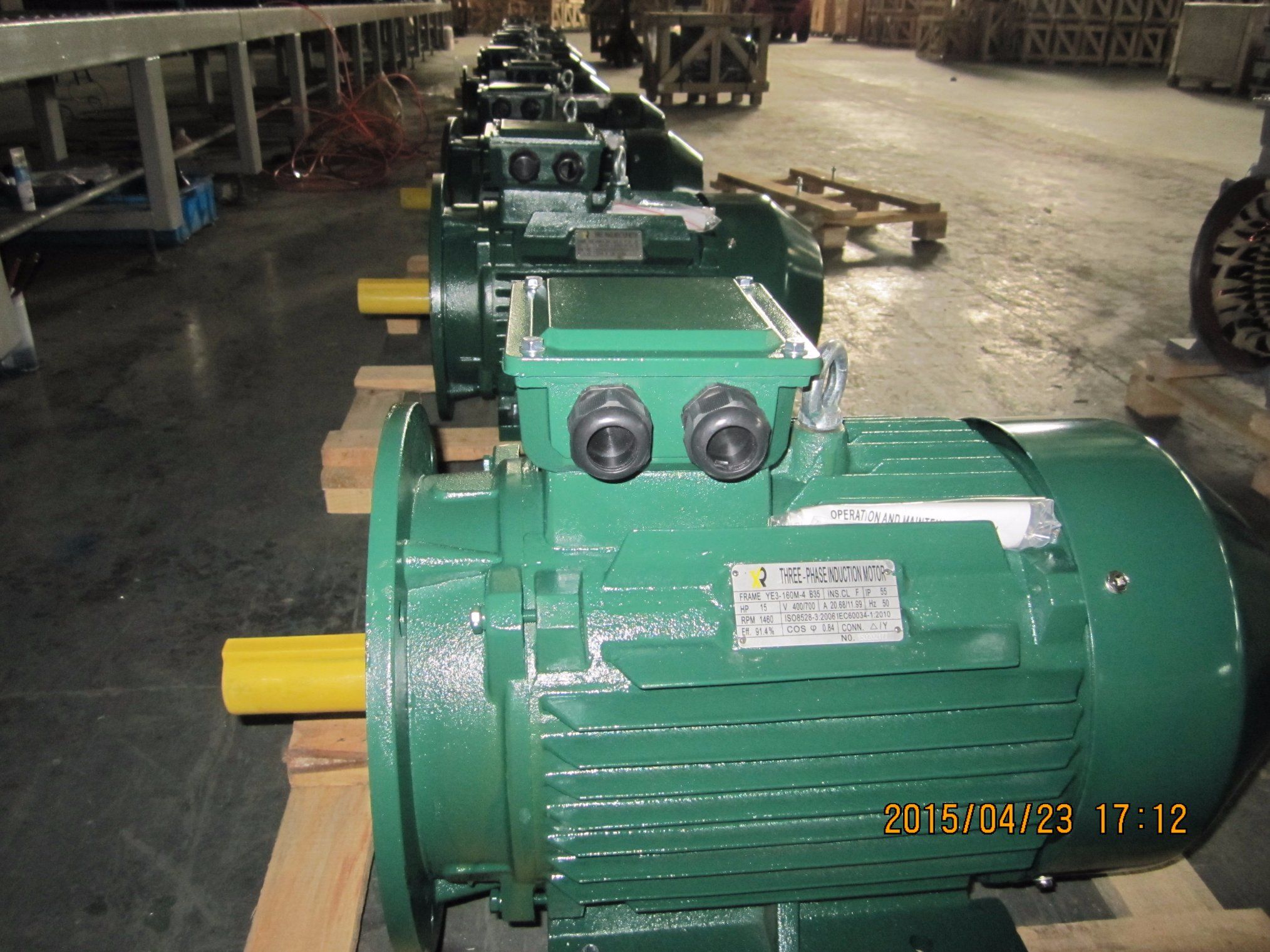

High Efficiency Ye3 Cast Iron Induction Electric Motor

High Efficiency Ye3 Cast Iron Induction Electric Motor
Price: Negotiable/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P
Prod Model: YE3-160M-4
Number Of Stator: Three-Phase
Function: Driving
Brand: Xinrui

Product Description

Product Description
YE3 motors are three phase Asynchronous squirrel-cage induction motors, in cast iron execution, totally enclosed fan cooled (TEFC).

YE3 motors are available in frame size H 80-355 in 2-4-6 and 8 poles, 10 pole on request, various combinations of two- and multi speed in frame size H80-280, unwounded size H80-132 in 2-4-6 and 8 poles, including spare parts. The terminal box is standard top mounted.

Grease lip: H180-315 motor with grease lip for regrease.

Performance: EFF2, INS. CL. F, IP55. IMB3, B5, B14, V1.

Option: Motor can add PTC to well protect the motor on request.

OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 220/380V, 380/660V, 400V, 415V
Rated frequency: 50Hz / 60 Hz

Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411

FUAN XINRUI MACHINERY Co., Ltd., founded in 2010, is a high efficiency motor manufacturer which combines researching, producing and marketing. After 6 years of development, the total area has reached 80, 000 square meters; And the total number of staff reaches more than 400 persons. Company continues to explore innovation, takes variety of advantages, and seizes every opportunity to increase marketing for many countries and areas which including Italy, Germany, UK, Belgium, Russia, Egypt, Iran, Thailand, and Malaysia, and the yearly turnover has exceeded 30 million US dollars. At present, the company has obtained the certificates including ISO 9001: 2008, ISO 14001: 2004, CCC, CE, and so on. Among our products, the IE2, IE3 high efficiency motor has been widely recognized by our overseas customers. By the high-end customer driven the entire product brand and quality improvement, company forms a strong competitiveness in the same industry, and also plays a leading role for the entire industry upstream and downstream chain upgrading. Nowadays, with great enthusiasm and persistence efforts, we are working toward a stable quality and good service oriented enterprise for customer benefits. We are expecting your kind attention, thank you.
