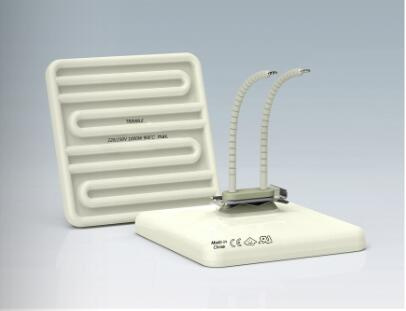

High Efficient Ceramic Infrared Heater for Vacuum Forming

High performance Ceramic Infrared Heater Panel Heater for Vacuum Forming:

Ceramic Infrared Heater Panel Heaters for Vacuum Forming are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.

Construction and material of Ceramic Infrared Heater Panel Heater for Vacuum Forming:

Insulator: High thermal shock resistance ceramic material

Resistance wire: High quality Ni80Cr20

Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.

Reference standard sizes of Ceramic Infrared Heater Panel Heater for Vacuum Forming:

1.   60*60mm;60mm*120mm;120mm*120mm;240mm*60mm;240mm*80mm

2.   Other sizes, power and voltage can be customized

3.   Built in thermocouple available

Features of Ceramic Infrared Heater Panel Heater for Vacuum Forming:

1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.

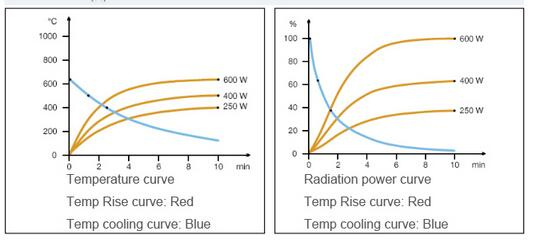

2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature

3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.

4.     The radiation surface temperature uniformity: ≤15%

5.     Power error: ≤5%

6.     Cold insulation resistance: 500V mega meter >2m

7.     Thermal insulation resistance: 500V megameter >0.5m

8.     The service life of >3000 hours



Applications of Ceramic Infrared Heater Panel Heater for Vacuum Forming:

In Thermoforming & Vacuum Forming Machines

In PVC Pipe Belling / Socketing Machines

In Hot Stamping Machines

As Heat Therapy Equipment

In Shrink Packaging

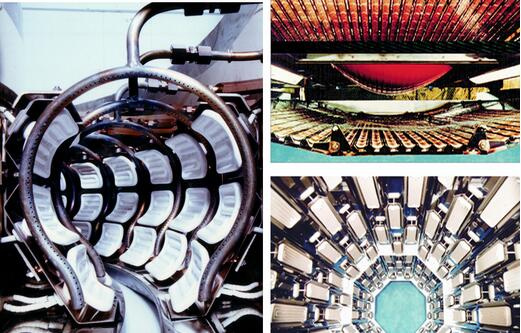

Application Cases of Ceramic Infrared Heater Panel Heater for Vacuum Forming:
