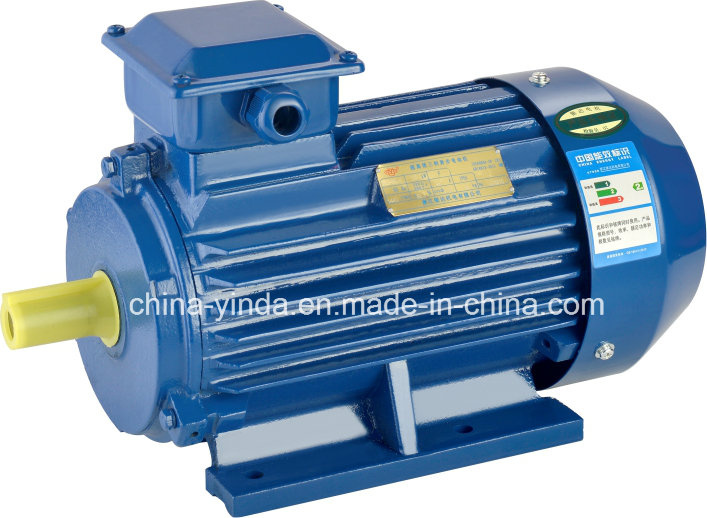

High Efficient Ie2 Ie3 Induction Electrical Motor (YE2, YE3, 0.75KW-315KW)

Name: High Efficient Ie2 Ie3 Induction Electrical Motor (YE2, YE3, 0.75KW-315KW)
Brand: all-electronics-online.com
SKU: 717645412
Availability: InStock
Rating: 4.5 (134 reviews)

Price:	US $ 45-49/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	IE2 IE3
Voltage:	Special Voltages Available
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce

Product Description

TEFC -IP54 Three-Phase Fan Motor

( Electric Motor, Three-phase Motor, Motor, induction motor, Electrical Motor, Asynchronous Motor)

Standard features:

Three-phase, 50Hz

Voltage: 380-415V (50Hz)

Frame: 63-315
Mounting type: B3
Power: 0.12kw(0.18HP)- 200kw(270HP)
Totally Enclosed Fan Cooled TEFC (IP54)
Squirrel cage rotor/Aluminium die cast
Continous duty: S1
Class "F" insulation
Voltage: 380V

Optical features:

Mounting type: B5/B14
Special voltages and Frequency
Double shaft end

Applications:
Fans, pumps, pulleys, cranes,
Conveyor belts, mills, grinders,
Crushers, drilling machinery, blowers, compressors,
Food processing machines etc.

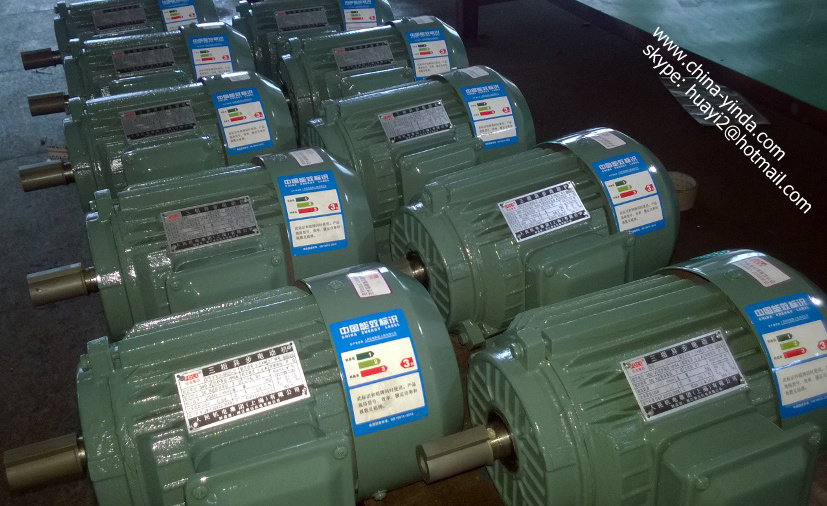

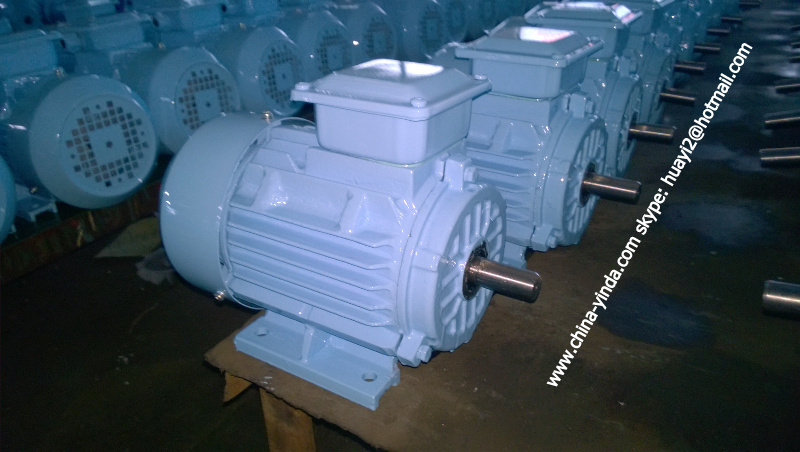

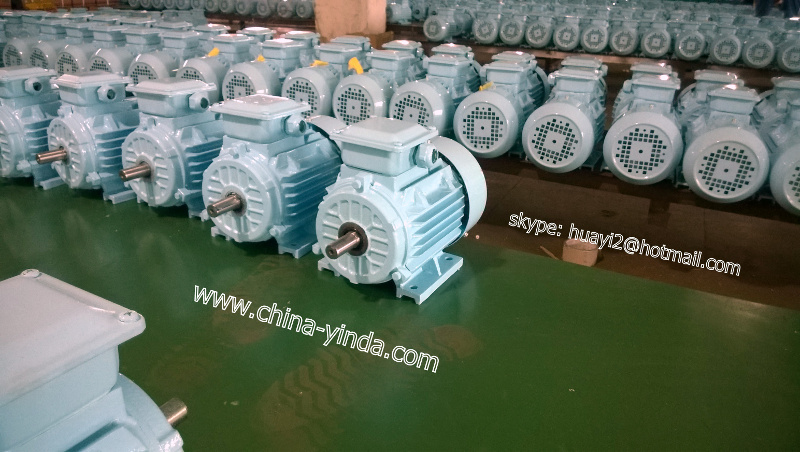

Photos:

Technical data:

Motor Type	Rated Output (50Hz)		Efficiency	Power factor	Rated Current	ILR / Irated	TLR/Trated		LWA
Motor Type	kW	HP	Full Load 100%	CosΦ	A	ILR / Irated	TLR/Trated		dB(A)
3000 r/min = 4 poles 380V 50Hz
80M1-2	0.75	1	77.4	0.82	1.8	6.8	2.3	2.3	62
80M2-2	1.1	1.5	79.6	0.83	2.5	7.1	2.3	2.3	62
90S-2	1.5	2	81.3	0.84	3.3	7.3	2.3	2.3	67
90L-2	2.2	3	83.2	0.85	4.7	7.6	2.3	2.3	67
100L-2	3	4	84.6	0.87	6.2	7.8	2.2	2.3	74
112M-2	4	5.5	85.8	0.88	8	8.1	2.2	2.3	77
132S1-2	5.5	7.5	87	0.88	10.9	8.2	2.2	2.3	79
132S2-2	7.5	10	88.1	0.89	14.5	7.8	2.2	2.3	79
160M1-2	11	15	89.4	0.89	21	7.9	2.2	2.3	81
160M-2	15	20	90.3	0.89	28.4	7.9	2.2	2.3	81
160L-2	18.5	25	90.9	0.89	34.7	8.0	2.2	2.3	81
180M-2	22	30	91.3	0.89	41.1	8.1	2.2	2.3	83
200L1-2	30	40	92	0.89	55.7	7.5	2	2.3	84
200L2-2	37	50	92.5	0.89	68.3	7.5	2	2.3	84
225M-2	45	60	92.9	0.89	82.7	7.5	2.2	2.3	86
250M-2	55	75	93.2	0.89	100.7	7.6	2.2	2.3	89
280S-2	75	100	93.8	0.89	136.5	6.9	1.8	2.3	91
280M-2	90	120	94.1	0.89	163.3	6.9	1.8	2.3	91
315S-2	110	150	94.3	0.9	196.9	7.0	1.8	2.2	92
315M-2	132	180	94.6	0.9	235.6	7.0	1.8	2.2	92
315L1-2	160	220	94.8	0.91	281.8	7.1	1.8	2.2	92
315L2-2	200	270	95	0.91	351.5	7.1	1.8	2.2	92
1500 r/min = 4 poles 380V 50Hz
80M2-4	0.75	1	79.6	0.76	1.9	6.4	2.3	2.3	56
90S-4	1.1	1.5	81.4	0.77	2.7	6.6	2.3	2.3	59
90L-4	1.5	2	82.8	0.78	3.5	6.7	2.3	2.3	59
100L1-4	2.2	3	81.8	0.8	5.1	7.3	2.3	2.3	64
100L2-4	3	4	83.3	0.81	6.8	7.5	2.3	2.3	64
112M-4	4	5.5	86	0.81	8.7	7.5	2.3	2.3	65
132S-4	5.5	7.5	87.7	0.82	11.6	7.5	2	2.3	71
132M-4	7.5	10	88.7	0.83	15.5	7.3	2	2.3	71
160M-4	11	15	89.8	0.83	22.4	7.4	2	2.3	73
160L-4	15	20	90.6	0.84	29.9	7.5	2	2.3	73
180M-4	18.5	25	91.2	0.85	36.3	7.6	2	2.3	76
180L-4	22	30	91.6	0.85	42.9	7.7	2.1	2.3	76
200L-4	30	40	92.3	0.85	58.1	7.1	2.1	2.3	76
225S-4	37	50	92.7	0.86	70.5	7.3	2.1	2.3	78
225M-4	45	60	93.1	0.86	85.4	7.3	2.2	2.3	78
250M-4	55	75	93.5	0.86	103.9	7.3	2.2	2.3	79
280S-4	75	100	94	0.87	139.3	6.8	2.2	2.3	80
280M-4	90	120	94.2	0.88	165	6.9	2.2	2.3	80
315S-4	110	150	94.5	0.89	198.7	6.9	2.1	2.2	88
315M-4	132	180	94.7	0.89	238	6.9	2.1	2.2	88
315L1-4	160	220	94.9	0.9	284.6	6.9	2.1	2.2	88
315L2-4	200	270	95.1	0.9	355	6.9	2.1	2.2	88
1000 r/min = 4 poles 380V 50Hz
90S-6	0.75	1	75.9	0.71	2.1	5.8	2	2.1	57
90L-6	1.1	1.5	78.1	0.72	3	5.9	2	2.1	57
100L-6	1.5	2	79.8	0.72	4	5.9	2	2.1	61
112M-6	2.2	3	81.8	0.72	5.7	6.2	2	2.1	65
132S-6	3	4	83.3	0.72	7.6	6.4	2	2.1	69
132M1-6	4	5.5	84.6	0.74	9.7	6.6	2	2.1	69
132M2-6	5.5	7.5	86	0.75	13	6.8	2	2.1	69
160M-6	7.5	10	87.2	0.78	16.8	6.8	2	2.1	73
160L-6	11	15	88.7	0.79	23.9	6.9	2	2.1	73
180L-6	15	20	89.7	0.82	31	7.3	2	2.1	73
200L1-6	18	25	90.4	0.8	37.8	7.2	2	2.1	73
200L2-6	22	30	90.9	0.81	45.4	7.3	2	2.1	73
225M-6	30	40	91.7	0.82	60.6	6.8	2	2.1	74
250M-6	37	50	92.2	0.83	73.5	7	2	2.1	76
280S-6	45	60	92.7	0.85	86.8	7.2	2	2	78
280M-6	55	75	93.1	0.86	104.4	7.2	2	2	78
315S-6	75	100	93.7	0.84	144.8	6.5	2	2	83
315M-6	90	120	94	0.85	171.1	6.6	2	2	83
315L1-6	110	150	94.3	0.85	208.5	6.6	2	2	83
315L2-6	132	180	94.6	0.86	246.5	6.6	2	2	83

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
