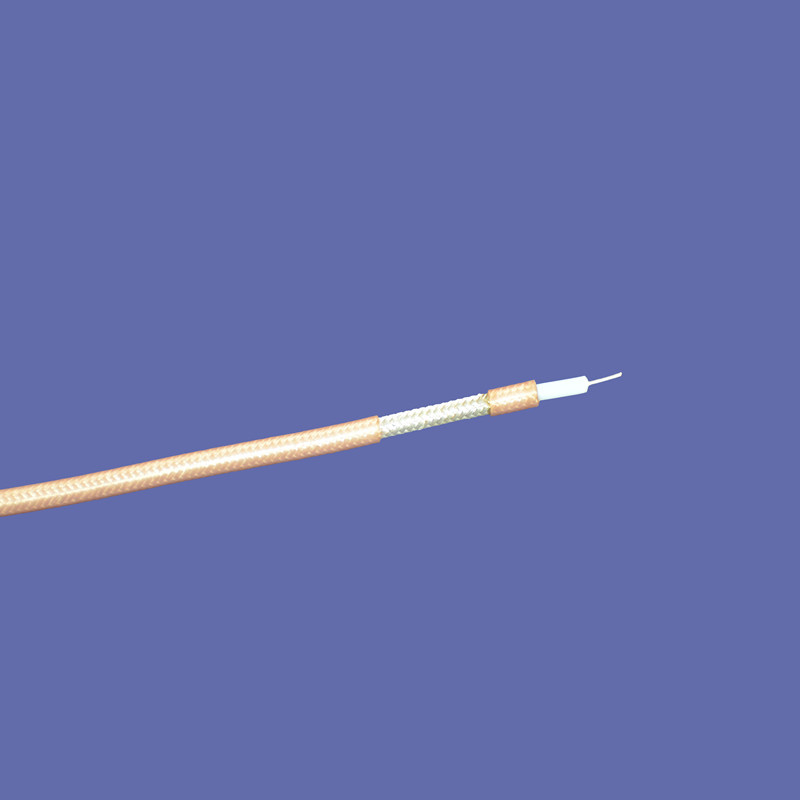

High Flexible Teflon Cable (RG302)

Name: High Flexible Teflon Cable (RG302)
Brand: all-electronics-online.com
SKU: 739857275
Availability: InStock
Rating: 4.4 (133 reviews)

Price:	US $ 0.1-1.2/Meter
Trade Terms:	FOB,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG302
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Spc
Insulation:	PTFE
Shield:	Spc Braid
Jacket:	FEP
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Spc
Cover Material:	FEP
Type:	Coaxial
Wire Core Material:	Spc

Product Description

Teflon Super Flexbile Cable RG302

This 50 Ohm RG187 coaxial cable has small outer diameter and can be fixed with various connectors, such as SMA, SMB,MCX,MMCX,.....
It can work for a long time under a 200ºC degree temperature environment.Its versatile cable assemblies with various lengths have been widely used for tight fit applications.

Features

. 50 Ohm data signal transmission;
·   The inner conductor could be stranded or solid;
·   Special insulation materials,providing good electrical property and welding performance;
·   Small diameter is ideal for tight fit applications;
·   Customized cable color , winding and connector, meet your different requirements;
·   RoHS compliant;

RG302 Coaxial Cable
Construction
Item	Material		Diameter(mm)
Inner Conductor	Sliver Plated Copper Clad Steel		064
Dielectric	PTFE		3.71
Shield	Silver Plated Copper Braid		4.21
Jacket	FEP		5.13

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@50MHz	26.2
Velocity of Propagation(%)	70	@100MHz	12.1
Max Operating Frequency (MHz)	3000	@200MHz	17.7
Max Operating Voltage(VRMS)	1000	@400MHz	24.9
Operating Temperature(ºC)	-55 to +200	@1000MHz	38.7
-----	-----	@3000MHz	70.5

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
