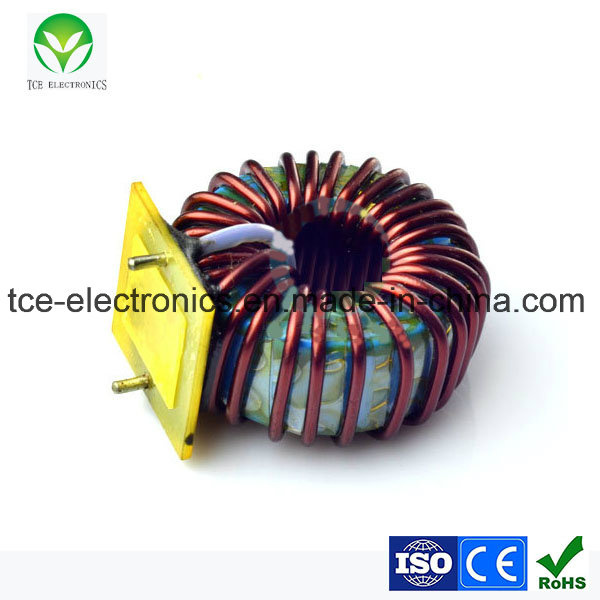

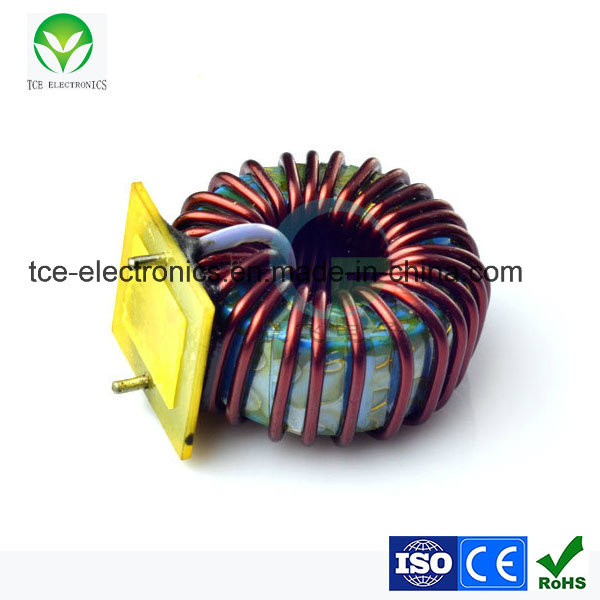

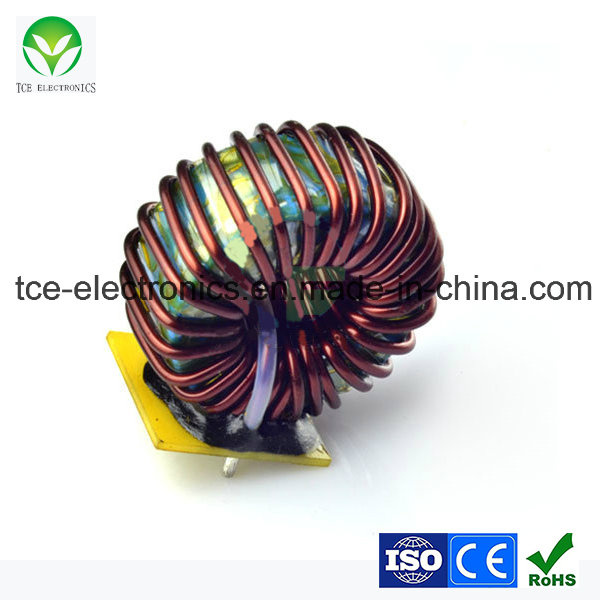

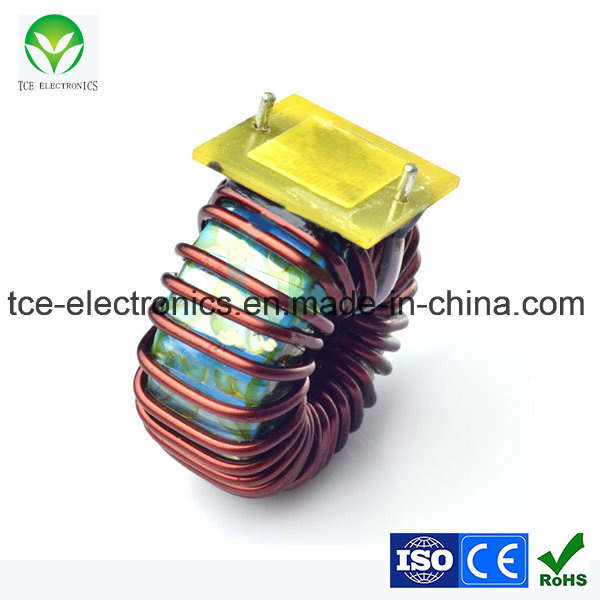

High Flux Magnetic Choke Coil Inductor
| Price: |
US $ 0.6-29.99/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
1 to 3000 W |
| Type: |
Fixed Inductor |
| Structure: |
Inductive Choke |
| Brand: |
Tce |
Product Description
High flux magnetic coilabove are our company's common products' style drawing, and other special styles are not included. More models and types are available. Welcome your spec and sample to make custom-manufacturing.OD=outer diameter,ID=inner diameter,HT=height,Perm: Magnetic permeability high flux magnetic coil1.working frequency:8KHz-1MHz
2. Output power:1 to 3000 W
3. Working temperature:-40ºC to +200ºC4.storage temperature:-25ºC to +85ºC5.storage humidity:30 to 95%Characteristics of high flux magnetic ring coilit is made of 50% nickel and 50% iron alloy powder, and its bias performance is the highest in all powder core materials. The market is often referred to as High Flux magnetic particle core or high flux magnetic particle core The main characteristics of high flux powder cores are that the saturation magnetic flux density is about 15000Gs, the permeability range from 14~160; the highest magnetic induction intensity in the powder magnetic core, the highest DC bias capacity, and the small magnetic core Application of amorphous magnetic ring coilWidely used in high power inverter, high frequency transformer, power transformer, switching power supply transformer, switch power supply, data exchange interface unit, pulse transformer, UPS power filter and storage power supply, power factor correction, standard choke choke, AC power, SCR, EMI, differential mode and common mode inductor the output filter inductance, magnetic saturation reactor, magnetic amplifier, peak suppressor, choke coil, current and voltage transformer, zero sequence current transformer, leakage switch transformer, induction anti-theft tags etc.
We are a professional manufacturer specializing in custom-designed transformers and inductors. Our products category are such as high frequency transformer, power transformer, power transformer, common mode inductor, inductor, magnetic ring inductor, linear filters, magnetic inductors, magnetic ring transformer, I-shaped inductor, magnetic inductors, air core coil, coil, vibration oscillation coil, winding inductance coils, etc
Core category are as below. Cron core, iron silicon aluminum, ferrite, amorphous strip, sendust cores, ferrosilicon powder core, high flux magnetic powder core, iron nickel iron nickel molybdenum powder core, high permeability ferrite, zinc, nickel, manganese zinc soft magnetic, permanent magnet and soft magnetic metal and so on
Magnetic bar P/N: 3*12, 3*15, 3*20, 4*15, 4*16, 4*20, 5*15, 5*20, 5*25, 6*20, 6*25, 6*30, 8*30, 15*150, etc
I-shaped inductor P/N: 0406 0507 0608 0810 0912 1010 1012 1016 1313 1618 1517, etc.
Ring: Ring size(outer diameter, inner diameter, thickness) Common mode magnetic coil and magnetic ring filter. Common mode inductor loop(ring): 6*3*3, 9*5*3, 10*6*5, 12*6*4, 13*8*7, 14*8*7, 18*10*8, 22*14*8, 25*15*13, 31*19*13, etc
Magnetic ring, inductor coil, inductor, magnetic ring: 3026, 3052, 4426, 4452, 5026, 5026B, 6026, 6826, 6826A, 6026D, 6052D, 6052, 8026, 8026B, 9026, 9426, 10626, 13026, 15026, 15726, 18426, etc.
Linear filters: UU9.8/UF9.8 UU10.5/UF10.5 UU16/UF16; UT20/ET20 UT24/ET24 UT28/ET28 ET35.
High frequency transformer P/N: EE8.3, EE10/EI10, EE13/EI13, EE16/EI16 EE19/EI19 EE20/UU21 EE21 EE22/EI22/EE25/EI25/EE28/EI28/EI30/EE30/EI33/EE33/EE35/EI35/EE40/EI40/EE55/EE65/EE85/EE110
EE Series: EEL16/EEL19/EEL22/EEL25
ER Seris: ER24/ER25/ER28/ER35/ER39/ER40/ER42/ER45/ER49
EF Series: EF12.6/EF15/EF16/EF20/EF25/EF35
EFD\EFT Series: EFD15/EFD20/EFD25/EFD30/EFT43/EFT45/EFT46
EP. EPC POT Series: EP07/EP10/EP13/EP17/EPC13/EPC19/EPC27/EPC46/POT14/POT30/POT33
ETD Series: ETD29/ETD34/ETD44/ETD49/ETD54/ETD59
PQ Series: PQ20/PQ2016/PQ2020/PQ2620/PQ2625/PQ3220/PQ3230/PQ3235/PQ3535/PQ4040/PQ50/PQ5050
RM Series: RM04/RM06/RM05/RM08/RM10/RM12/RM14
Application: Switching mode power supply, LED driving power supply, Power module, Industrial equipment, Liquid crystal display, Charger, digital camera, Portable computer, communication network, etc electronics equipment.
Product model are complete with quick delivery time and High quality and low price. We can design and produce products according to our customers' requirement.
