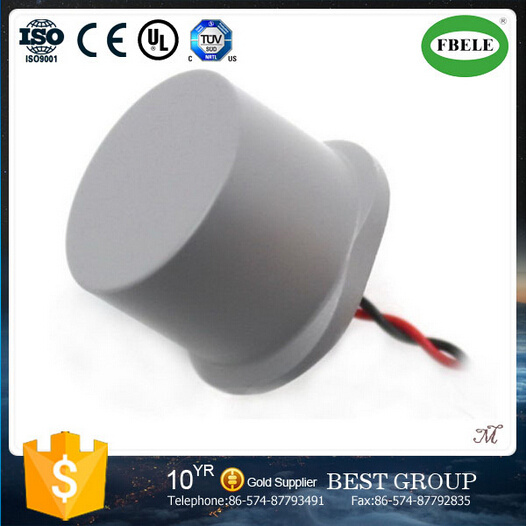

High Frequency 140V Underwater Ultrasonic Sensors

High Frequency 140V Underwater Ultrasonic Sensors
Price: US $ 2/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FBAUS1509
Place Of Origin: Zhejiang, China (Mainland)
Model Number: Fbaus1509
Output: Digital Sensor
Resolution: About 1 Cm
Detecting Range: 25cm to 8m
Supply Voltage: DC5V
Working Current: 6-12mA
Ultrasonic Frequency: 40kHz
Working Temperature: -10-50

Product Description

FBAUS1509 High frequency 140V underwater Ultrasonic Sensors(FBELE)

Resonant frequency  55±1.0KHz
Sensitivity≥1.8Vp-p
Recay time≤2.20rms
Directivity(deg) X-axis90±15°
Directivity(deg) Y-axis45±10°
Capacitance1500±15%pF
Max. Driving Voltage140Vp-p
Mean time to failure50000hs
Operating temperature-40~+80ºC
Storage temperature-40~+85ºC

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Fast is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days

Our Company Advantage:
1, Reliability production
2, Famouse Brand "FBELE", Best Reputation
3, well experienced R&D engineer
4, Effective working Team
5, Aggressive Price
6, Constant New products
Don't hesitate, E-mail us immediately now.
you will get your best solution.
Choose "FBELE", Choose Success! ! !

Established in 1997, FBELE company is Chinese leading manufacturer in acoustic components We can offer high quality products in very competitive price, as well as best service, in time delivery, small order acceptable, etc. And our products includingpiezo ceramic element, piezo buzzer, magnetic buzzer, transducer, receiver, Electret Condenser Microphone, magnetic contact. Piezo siren alarm.

Fast is our principle, our normal delivery time as below:

Sample delivery date is: 1-3days.

Production delivery time: 7-10days.

New product development: 15-20days

Our Company Advantage:

1, Reliability production

2, Famouse Brand "FBELE", Best Reputation

3, well experienced R&D engineer

4, Effective working Team

5, Aggressive Price

6, Constant New products

· Research and Develop

1. Constant development of new products as technology changes.

2. Intensify the products function; Develop the stable and high affixation value of our products.

3. Having knowledge of customers' requirement, and shorten the development cycle.

4. Establish team work of the application, trend guide, and develop new projects with customers' preference. Provide a solution for all requirements requested by customers with extreme efforts.

5. Apply ourselves with high advanced technology, and shorten the research and production cycle.

· Core Technology

1. Piezo element: We have the most advanced production line in all of China. Our format, which is imported from Japan, is able to create thinness of 0.05mm with 15mm diameter.

2. Diaphragm design and manufacturing technology of our speaker and receiver.

3. Insert Molding design technology.

4. We have software engineers, able to create programs for different sound and products with our own technology.

Don't hesitate, E-mail us immediately now.

You will get your best solution.
