High Frequency 2000W 12V 220V Power Inverter with Remote Control
| Price: |
US $ 50-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
TMO-P2000 |
| HS Code: |
8504210000 |
Product Description

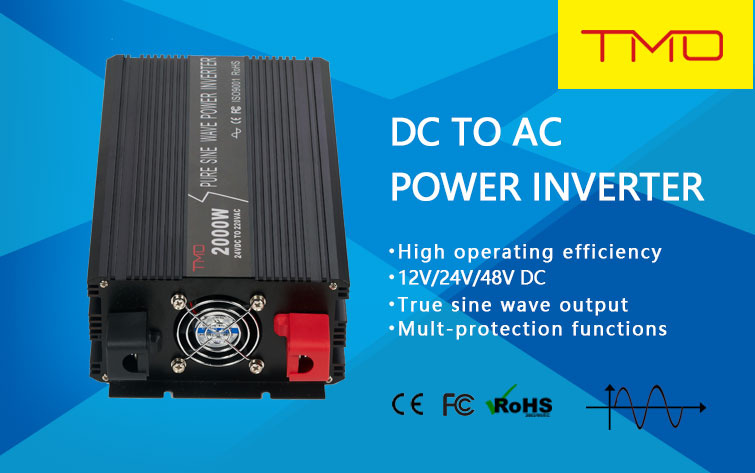

High Frequency 2000W 12V 220V Power Inverter with Remote Control
Technical Parameters| Model No. | TMO-P2000 |
| Direct Voltage | 12V/24V/48V |
| Voltage Range | 10-15VDC/20-31VDC/40-60VDC/96-127VDC |
| No-load Current | <0.8 |
| Efficiency | >92% |
| DC Link | Connection Lug |
| Output Voltage | 100/110/120VAC or 220/230/240VAC |
| Rated Power | 2000W |
| Peak Power | 4000W |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 50Hz or 60Hz |
| Waveform Distortion | 3% |
| Low Voltage Alarm | 10.5VDC±0.5V 21VDC±1V 42VDC±1V 100VDC±1V |
| Low Voltage Shut Down | 10VDC±0.5V 20VDC±0.5V 40VDC±0.5V 96VDC±0.5V |
| Over Load | Output shut down |
| Over Voltage | 10.5V 30.5V 61.2V 120V |
| Over Heating | Output automatically shutdown |
| Working temperature | -10ºC----+50ºC |
| Storage temperature | -30ºC----+70ºC |
| Working Humidity | 20%-90%RH |
| Dimension(mm) | 340*165*85 |
| Packing(mm) | 420*240*157 |
| Net./gross weight(g) | 3.5/3.9KG |
| QTY/Ctn | 1PC/CTN |
| Warranty | 1 Year |
| Configuration | Standard |
| Cooling Method | Fan cooling |
| Power Inverter | DC to AC or Off Grid |
| Note:Our products update constantly.The technical parameter is for reference only.Please refer to our real product. |

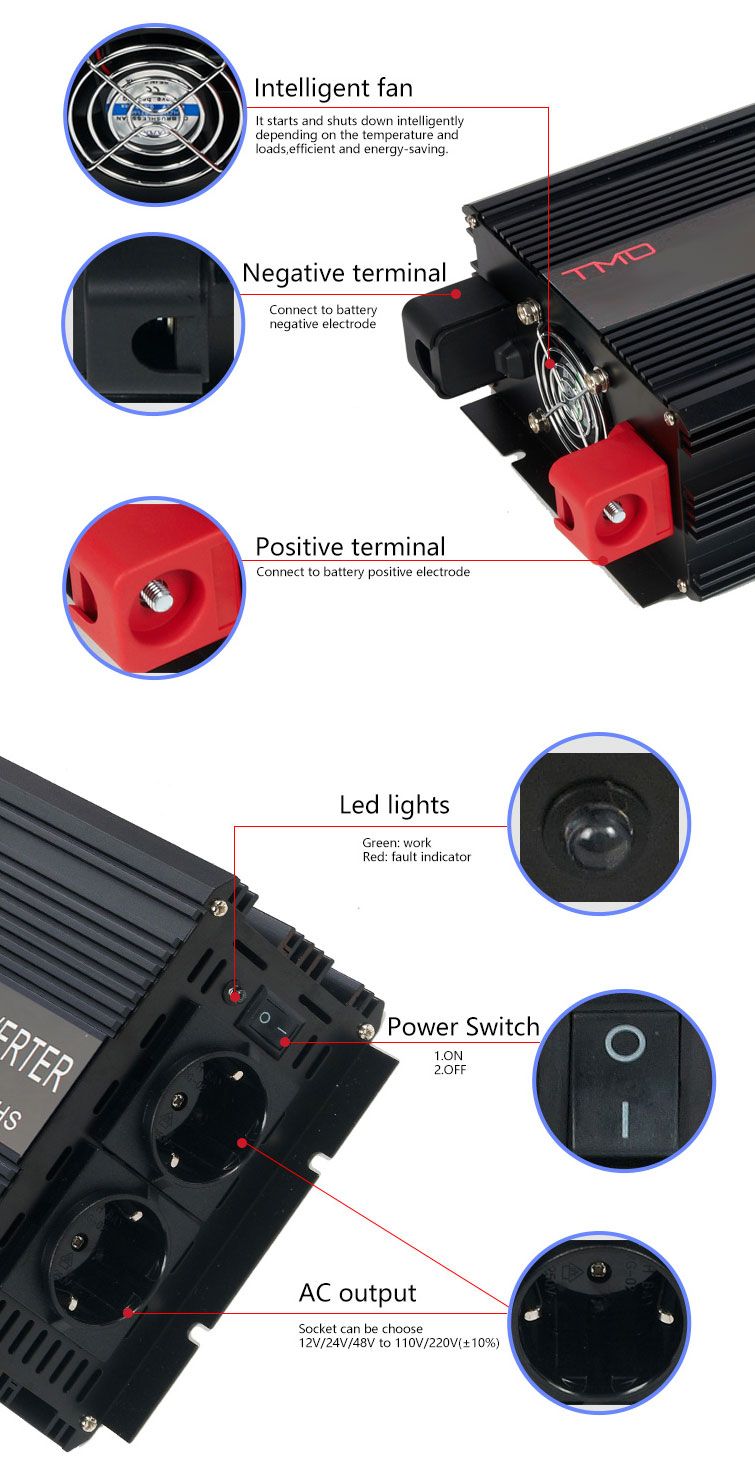

Product Features
1. It is featured as high reliability, and low failure rate, with the advanced double CPU SCM intelligent controlling technology.
2.Pure sine wave output, strong ability of driving load, wide range of application
3.Perfect protection functions (Overload protection, inside overheat protection, input low-voltage protection, input overvoltage protection), enhanced the reliability of the product.
4.Small and light: with the technology of CPU centralized control and SMD inside, the product is very small and light.
5.Intelligent control of cooling fan: Using CPU to control the working status of the cooling fans extends the service life of the cooling fans, saves the power and improves the working efficiency.
6.Low noise but high efficiency while working
Application
1. Travel Equipment Series: Military vehicle, police cars, ambulances, ships, traffic lights and so on.
2. Industrial equipment series: Solar energy, wind power, metal halide lamps, high pressure sodium lamp and so on.
3. Office equipment series: Computers, printers, monitors, copiers, scanners, digital cameras, digital cameras and so on.
4. Home Equipment Searies: Vacuum cleaners, fans, lights, electric cutting knife, sewing machines and so on.
5. Kitchen utensils series: Microwave ovens, electric sheet metal pot, refrigerator and so on.
6. Power tools: Saws, drilling machines, grinding machine, sandblasting machine, stamping machine, lawn mower, air compressor and so on.
7. Series of electronics: TV, DVD, game consoles, power amplifiers, audio equipment, monitoring equipment, servers, satellite communications equipment.Customers servicePlease contact us through email or phone, we will assist you in any way possible and aim to answer all emails within 24-48 hours.
OEM Services:
1.Logo:Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label:Please offer us your own model numbers.
3. Manual:Please offer us the finished manual file that can be printed directly.
4. Packing Box:We will offer you the demension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.
Payment Terms:
1. T/T ,Western Union,Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Lead Time:
1.Sample orders will be delivered from our factory within 7 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Big orders will be delivered from our factory within 15-25 working days at most.
Shipment:
1.By EMS, DHL, FedEx, TNT, UPS or other express.
2.By our forwarding agent (by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
After-sale service:
1.All products have been checked and packaged in good condition before dispatch.
2.Warranty : one years,
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.Certificates
Package & Shipping
Wuhan TMO Import & Export Co., Ltd is a high-tech enterprise integrating the research, development, production, sales and technical services, which is mainly focusing on off-grid power solutions and new energy solutions. Our factory established in 2012, located in Wenzhou, the largest manufacturing base of low voltage electric equipment in China. Our company strictly comply with ISO9001 quality standard for production, strengthen production and quality control, implementation of comprehensive information management and gradually move towards high-end applications.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
