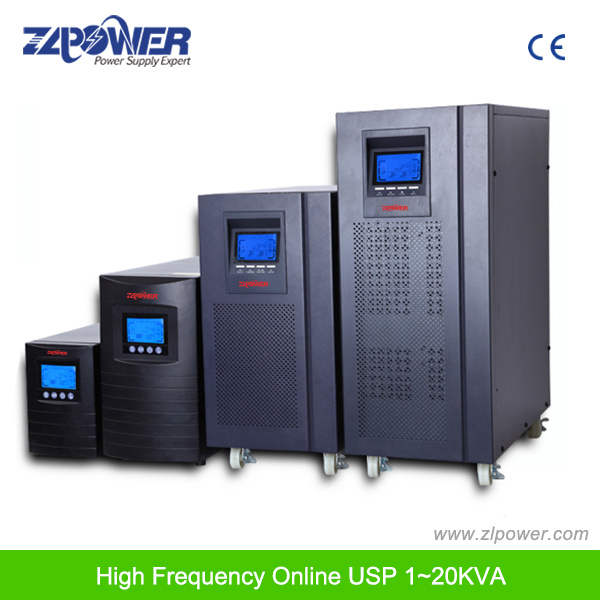

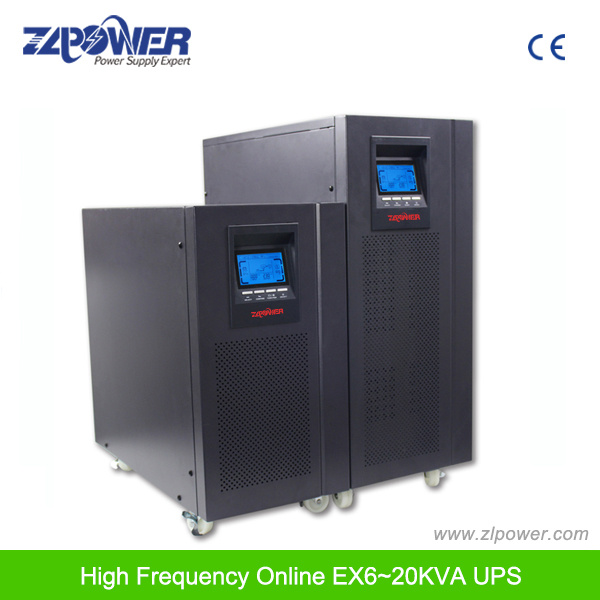

High Frequency 6kVA Online UPS Single Phase Pure Sine Wave UPS with Ce Certificate
| Price: |
US $ 350/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
DX/EX Series 6-20KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
6kVA/4.8kw |
| Power Factor: |
0.8 |
| Current Crest Ratio: |
3:1 |
| Internal Battery Type: |
Sealed Free Maintenance Lead Acid Battery |
| Built-in Battery: |
16 PCS 12V 7ah(7-25 Min Backup Time) |
| N+X Parallel Redundancy: |
Yes |
| Communications: |
RS232,Snmp, USB Optional |
| Wave Form: |
Pure Sine Wave |
| Display: |
LCD or LED Display |
| Charge Current: |
1-8A |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Classification: |
Power |
| Output Capacity: |
6kVA |
Product Description
6KVA/4.8KW High Frequency Online UPS Single Phase Pure Sine Wave UPS With CE CertificateKEY FEATURES
1. 6kva/4.8kw Single phase high frequency online ups
2. 220/230/240vac input and output
3. Frequency is 50hz or 60hz
4. Pure sine wave output
5. power factor is 0.8
6. Current crest ratio is 3:1
7. connections: terminal block
8. External battery type is sealed free maintenance lead acid battery
9. LCD and LED display
10. N+X parallel redundancy
11. excellent protection against over voltage,over load,over current,over charge and so on
12. Auto bypass output
13. Smart RS232 communication with monitoring software.
14. Short circuit ,lightning,surge,short circuit protection
APPLICATIONServers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etcPICTURES | Model | DX6K | DX6KL | DX10K | DX10KL | DX3110KL | DX3115KL | DX3120KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12000W | 20KVA/16000W |
| Input | Nominal Voltage | 220V | 380V |
| Voltage Range | 176~276VAC | 304~478VAC |
| Frequency | 46~54Hz/56~64Hz |
| Output | Voltage | 220/230/240(1±1%)VAC |
| Frequency | 50/60Hz(adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz): Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode:60Hz(1±0.2%) |
| Current Crest Ratio | 3:1 |
| Output Wave Form | Sine Wave |
| Back-up Time | Full Load | ≥7′ | Depends on the capacity of the external batteries bank | ≥5′ | Depends on the capacity of the external batteries bank |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192VDC |
| Transfer Time | 0ms |
| Overload Capacity | 105%~130% 10min, over 150%1min |
| Communication | RS-232+Intelligent Slot |
| Operating Environment | Temperature | 0C~40C |
| Humidity | 15%~90% |
| Dimensions(W*D*H)mm | 260*570*717 |
| Net Weight(Kg) | 90 | 35 | 93 | 38 | 39 | 55 | 55 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
