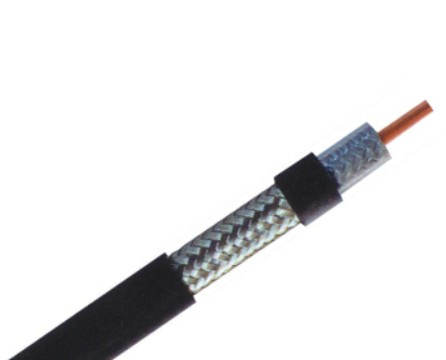

High Frequency Coaxial Cable LMR400

High Frequency Coaxial Cable LMR400
Price: US $ 10/Meter
Trade Terms: FOB
Min Order: 50000/Meter
Pay Type: T/T
Prod Model: LMR400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: RF Cable
Conductor Material: Copper
Cover Material: PVC
Certification: Reach
Model: RG6
Brand: Wanma

Product Description

Product Description
LMR Series cables are high performance broadband, flexible, low loss 50 Ohm coaxial communication cables designed for wireless application such as: Cellular, Mobile Antennas, wireless local loop, wireless internet, broadband wireless data. Compared to RG type braided cables, LMR cables offer far lower loss and better RF shielding.

LMR400, flexible Low Loss Communications Coax, designed for wireless application, e. G. WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas.

LMR400 RF Coaxial Cable:

1. Center conductor: 2.74mm Copper/ Copper clad AL
2. Dielectric: 7.24mm Foamed PE
3. Shield: Tinned copper /Bare copper braid & Bonded Al/ P
4. Jacket: 10.29mm PVC/PE

LMR series RF cable:

LMR100
LMR195
LMR200
LMR240
LMR300
LMR400
LMR500
LMR600
                                                                      Nominal Attenuation @ 68F(20C):
FrequencydB/100feet (Max)dB/100meters (Max)
5MHz0.491.60
50MHz1.404.60
100MHz1.986.50
200MHz2.909.50
460MHz4.5815.0
860MHz5.9519.5
1000MHz6.5621.5
1750MHz8.8529.0
2150MHz9.9132.5
Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.
