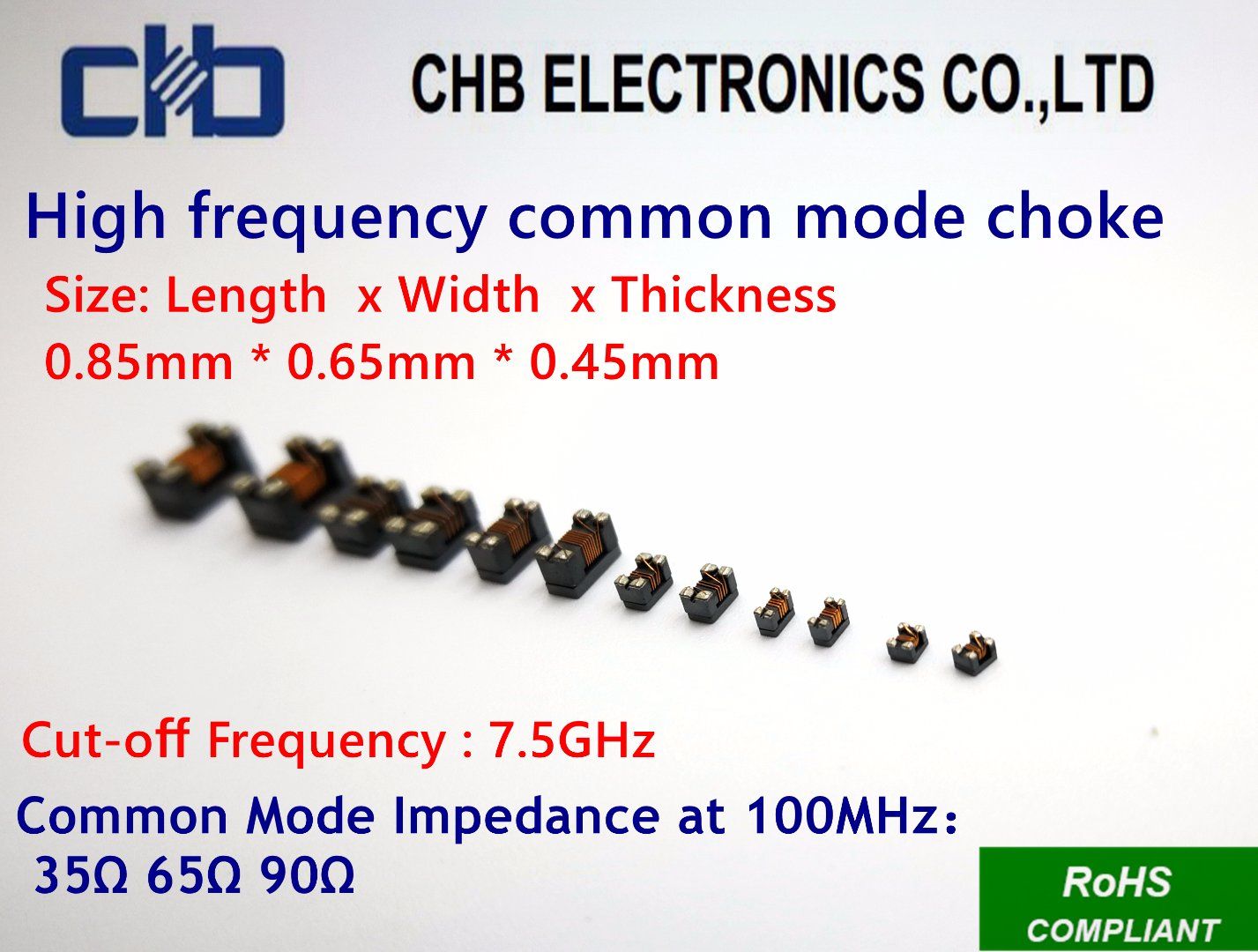

High-Frequency Common-Mode Choke for USB3.0/HDMI 1.4 Cat2, Impedance~65ohm at 100MHz, Size: 0.85mm * 0.65mm * 0.45mm (inch-03025)

Name: High-Frequency Common-Mode Choke for USB3.0/HDMI 1.4 Cat2, Impedance~65ohm at 100MHz, Size: 0.85mm * 0.65mm * 0.45mm (inch-03025)
Brand: all-electronics-online.com
SKU: 721076332
Availability: InStock
Rating: 4.6 (51 reviews)

Price:	US $ 0.125-0.15/Piece
Min Order:	4000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CM0806D-650S
Type:	Choke Inductor
Structure:	Inductive Choke
Brand:	Chb

Product Description

CHB P/N	MURATA P/N	TDK P/N	TAIYO YUDEN	CHILISIN P/N	TAI-TECH P/N	KING CORE P/N	KOA P/N	COIL CRAFT P/N	Sunlord P/N
CM3216A-series	DLW31S series	ACM3216 series		CMM31T-series	WCM3216 F2S-series	WCM-3216-series	KW3216	1206USB series	SDCW3216-2-series
CM2012A-series	DLW21S series	ACM2012 series	MCF-SERIES-T	CMM21T-series	WCM2012 F2S-series	WCM-2012-series	KW2012	0805USB series	SDCW2012-2-series
CM2012D-series		ACM2012D series		CMMI21T-series		WCM-2012HS-series			SDCW2012U-2-series
CM2012C-series	DLW21SR series	ACM2012H series		CMMI21T-series	HDMI2012F2SF-series DVI2012 F2S-series	WCM-2012HS-series			SDCW2012H-2-series
CM1608A-series
CM1608C-series						WCM-1608HDMI-series			SDCW1608S-2-series
BT2012A-SERIES									BW21S-series
BT2012H-SERIES									BW21S-series
CM1210D-SERIES	DLP11-series		CM01S-series-T	CMM11T-SERIES	HSF1210 F2SF-series HDMI1210 F2S-series	WCM-1210HS-series			SDCW1210S-2-series SDCW1210U-2-series
CM0806A-SERIES	DLP0N-series
CM2520A-series		ACM2520-series-2P-T002
PCM3225A-series		ACP3225-102-2P-T000
PCM4532A-series		ACM4532 series				WCM-4525-series
TCM2520A-series(3P)		ACM2520-801-3P-T002
TCM3225A-series(3P)		ATB3225-75011CT			TCM322512 F3SF-series
CF4532A-SERIES	DLW43SH-series	ACT45B-series ACT45R-series

EXPLANATION OF PART NUMBERS:

(1) Product Symbol: Chip common mode choke

(2) Shapes and dimensions: Length(A) x Width(B) x Thickness( C)
Dimensions in mm (inch)

TYPE

0806

0.85± 0.1

0.65± 0.1

0.45 max.

0.15 max.

0.27Typ.

0.22Typ.

1210

1.2 ± 0.2

1.0 ± 0.2

0.9 max.

0.15 max.

0.36Typ.

0.33Typ.

1608

1.6 ± 0.1

0.8 ± 0.1

1.1 ± 0.1

0.1 ± 0.1

0.25Typ.

0.33Typ.

2012

2.0 ± 0.2

1.2 ± 0.2

0.2 ± 0.1

0.40Typ.

0.45Typ.

2520

2.5 ± 0.2

2.0 ± 0.2

1.8 ± 0.2

0.2 ± 0.1

0.4 ± 0.1

0.45 ± 0.1

3216

3.2 ± 0.2

1.6 ± 0.2

1.9 ± 0.2

0.2 ± 0.1

0.60Typ.

3225

3.2 ± 0.2

2.5 ± 0.2

2.2 ± 0.2

0.2 ± 0.1

0.80Typ.

0.65Typ.

4532

4.5 ± 0.2

3.2 ± 0.2

2.8 ± 0.2

0.2 ± 0.1

1.2Typ.

1.0Typ.

(3)Shielding Type :

1GHz

USB2.0/IEEE1394 Signal Line

3.5GHz

HDMI 1.4 CAT1

6GHz

HDMI 1.4 CAT2/Display Part

7.5GHz

HDMI 1.4 CAT2/USB3.0

10GHz

HDMI 1.4 CAT2/ USB3.0/ USB3.1

(4) Impedance
670:67Ω;900:90Ω;121:120Ω;161:160Ω;181:180Ω;221:220Ω;261:260Ω;361:360Ω

(5) Tolerance: S=±25%;M=±20%

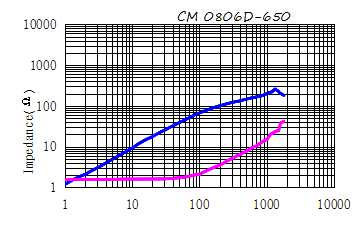

ELECTRICAL CHARACTERISTICS

P/N

Z(Ω)

DCR (Ω)

Idc(mA)

Rated Voltage

Insulation Resistance

Cut-off Frequency

Common Mode

Impedance

[ Max ]

Vdc

at 100MHz

(V)Typical

(MΩ)Min.

(GHz)

CM0806D-350S

0.55

100

7.5 typ.

CM0806D-650S

0.80

100

7.5 typ.

CM0806D-900S

1.00

100

7.5 typ.

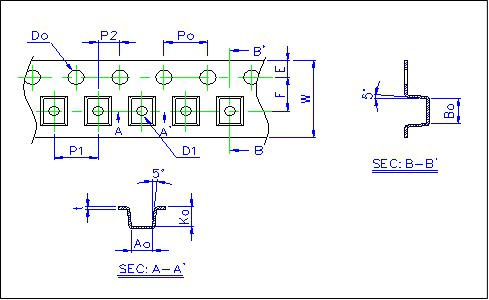

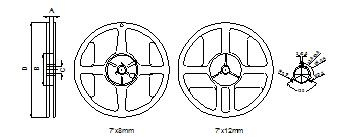

Reel Dimension & Tape Dimension

Type

A(mm)

B(mm)

C(mm)

D(mm)

7"x8mm

9.0±0.5

60±2

13.5±0.5

178±2

7"x12mm

13.5±0.5

60±2

13.5±0.5

178±2

Size

Ao(mm)

Bo(mm)

Ko(mm)

W(mm)

E(mm)

F(mm)

Po(mm)

P1(mm)

Do(mm)

0806

0.95±0.10

1.05±0.10

0.50±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1210

1.15±0.10

1.40±0.10

0.93±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

1608

1.65±0.10

1.00±0.10

1.18±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2012

2.35±0.10

1.50±0.10

1.45±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

2520

2.75±0.10

2.20±0.15

2.00±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

3216

3.50±0.10

1.88±0.10

2.10±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.5+0.1,-0

3225

3.60±0.10

2.80±0.10

2.20±0.10

8.00±0.20

1.75±0.10

3.50±0.05

4.0±0.05

4.0±0.10

1.0±0.1

4532

3.45±0.10

4.90±0.10

3.05±0.10

12.00±0.20

1.75±0.10

5.50±0.05

4.0±0.05

8.0±0.10

1.5+0.1,-0

Packaging Quantity

Chip Size				0806		1210		1608		2012		2520		3216		3225		4532
8mm/ Reel				4000		3000		2000		2000		2000		2000		1000		500
