High Frequency Current Transformer Input up to 50A 1: 1200 Ratio

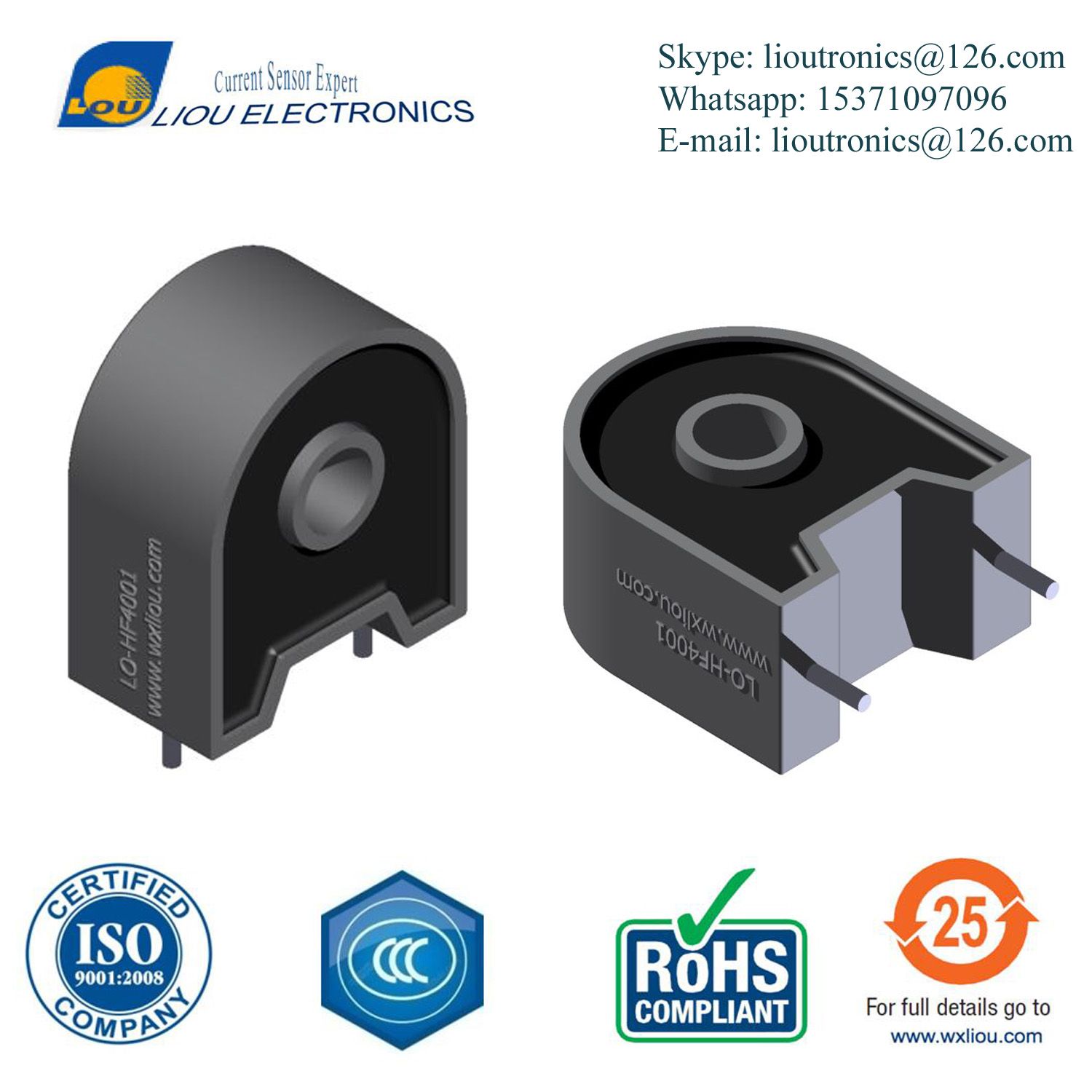

Name: High Frequency Current Transformer Input up to 50A 1: 1200 Ratio
Brand: all-electronics-online.com
SKU: 818856535
Availability: InStock
Rating: 4.8 (136 reviews)

Price:	US $ 0.4-0.9/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-HF4001
Frequency Range:	47-5000Hz
Safety Standard:	IEC60044-1
Thermal Class:	Class B
Flame Retardant:	UL94V-0
Packaging:	Carton
Production Process:	Encapsulaiton
Material:	Amorphous Core

Product Description

DESCRIPTION
¨   47-5000 Hz,Single Phase,AC Current Sensor
¨   Rated up to 50A
¨   Dynamic Range from 10 to 50Amps
¨   Linearity ≤0.1 Phase error < 15'
¨   Very low temperature coefficient
¨   Meets UL class B (130ºC) thermal insulation system
¨   Meets UL 94V-0
¨ AC isolation resistance: 3.75KV for 60s
¨ High current density

FEATURES
• Switching power supplies
•   Motor controls
•   Power monitoring
•   Energy management
•   Alternative energy monitoring

MECHANICAL SPECIFICATION

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri¹	Iout²	E-T³	R_S	Linearity	L_S⁴	Weight	Frequency range
Model number	Turns Ration	Amps	mA	V-uS	Ohms(Max)		H(Min)	(g)	(Hz)
LO-HF4001	1:1200	50	42	3000	40	≤0.1	10	20	47-5K

Note:
1.Ipri=Rated primary current.
2.Iout=Rated secondary current.
3.E-T is at Bi-Polar Only
4.Ls=Secondary inductance

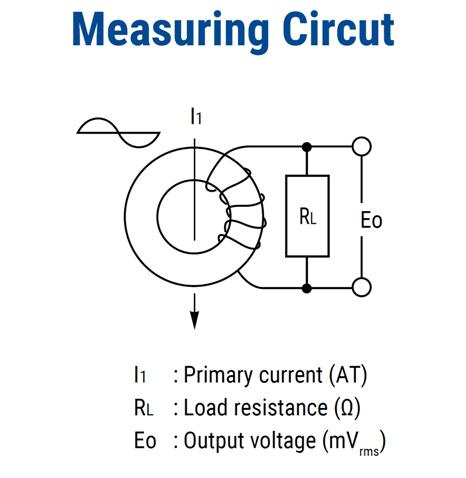

Terminating resistor options

Ipri(Amps)	Terminating Resistor(ohms)	E_0(V)
10	80	0.667
20	40	0.667
50	16	0.667

1.E-T=(E0*1/f)/2(Bi-Polar Only)
2.E₀=IP*(Rb/Tr)
3. E₀=Output V Ip=Pri.Current Tr=Turns Ratio f=frequency Rb=Term Res

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-40°C to 85°C
Storage temperature range	-40°C to 100°C

SOLDERING INFORMATION
Peak wave solder temperature	300˚C for 10 seconds
Pin ﬁnish	Tin

Quality Standard and Custom Design Products

LIOU Current Transformer has been an industry leader in design and production of current transformer products for over 20 years. Our focus is to build quality products designed to meet your needs. You may choose from any of our standard products or we can design and build a custom solution specifically for your application.

Designed, Manufactured and Distributed From One Location

Every aspect of your order is handled in house allowing us the opportunity to design, manufacture and ship your current transformer product quickly. Each order is reviewed by one of our qualified engineers to make sure the product you are ordering will work for you.

Superior Goals and Higher Expectations

It is the goal of LIOU Current Transformer to maintain its position as a worldwide industry leader in current transformer design and production. We will accomplish this by providing you with quality products and services that meet or exceed your current and future expectations.

Our Objective Is For You to Have Full Confidence in LIOU Current Transformer.

Each employee, at every level within the company, understands your satisfaction is fundamental to our growth and long-term development. LIOU Current Transformer believes that this level of quality will be achieved by:

1. A Total Quality Management approach. Every employee, supplier and customer is regarded as an essential part of the quality achievement process.

2. An error-free performance standard, based on prevention and development of a "Get It Right The First Time" work environment.

3. Implementation and maintenance of a quality assurance process that includes a hands on inspection of all your products during the manufacturing process with a final quality inspection prior to shipping.

4. Adhering to safety standards.

5. Development of all employees through continued training.

We look forward to demonstrating to you the superior quality and customer service our customers have come to expect from LIOU Current Transformer.
