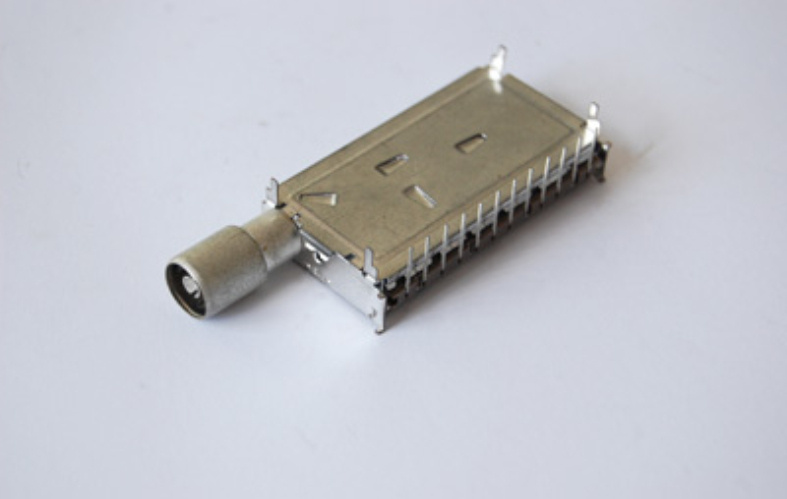

High Frequency Electronic Components Tuner

High Frequency Electronic Components Tuner
Price: US $ 8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ACE-201507091
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name: High Frequency Electronic Components Tuner
Applications: CRT TV, LCD TV, DVD-Raw Player
Tuning System: Pll Control
Receiving System: NTSC M
Application: Audio
Phase: Three
Coil: Core-type Transformer
Cooling Method: Dry-type Transformer
Winding Type: Two-winding Transformer
Brand: Ace

Product Description


This series of products, integrate tuner unit and IF demodulation unit
Applications: CRT TV, LCD TV, DVD-RAW player
Receiving system: NTSC M
Channel: VHF-low band: 55.25MHz to 157.25MHz; VHF-High band: 163.25MHz to 451.25MHz;UHF-band: 457.25MHz to 801.25MHz
Frequency: picture carrier: 45.75MHz; color: 42.17MHz; sound: 41.25MHz
Video output load impedance: >75 Ohms
IF sound output load impedance: >500 Ohms
RF input impedance (unbalanced): 75 Ohms
Tuning system: PLL control
IF demodulation

Micro machiningYes
ServiceDrawings or sample processing
Precision processingturning, milling, drilling, grinding, wire-EDM cutting etc
Materials AvailableStainless steel , brass , aluminum ,  etc
ThreadDIN, ANSI, ISO, JIS ,GB Standard
QC (inspection everywhere )Technicians self-check in production
PackagePP bag/carton or according customers' requirement
Delivery30-40 days after the deposit.
Shipment termsAs per customized specifications
DescriptionHigh-quality, rich manufacturing experience
ACE industry Co., Ltd. is a professional manufacturer for OEM parts, including OEM metal stamping, pressing, punching, casting, forging, machining, deep drawn and stamped-welded products with various surface treatments, etc. Our products are exported to USA, Canada, France, Italy, Spain, Holland and other markets, which are used in machining, construction, electronics, furniture, etc.

Our office is in Shanghai which can help us to offer better service for the customers from all over the world. Our factory is located in Jiangsu province.

We have full range of advanced machinery and equipments: Punching machines, welding, CNC machines, milling & grinding machines. And we also have experienced technical staffs, who are engaged in technical development. Our skilled workers, professional engineers, R&D center and excellent foreign trade team always keep the passion to support our customers.

ACE always insist on the concept of quality first & customer foremost, and provide high quality products, reasonable price, timely delivery and good service for customers. We hope to be your office in China.
