| Prod Model: |
EP1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charge Current: |
10A/20A Adjutable |
| PCB Board: |
Double Layers |
| Narrow Input Voltage Range: |
170-280VAC |
| Wide Input Voltage Range: |
90-280VAC |
| Wave: |
Modified Sine Wave |
| DC Battery: |
12V or 24V |
| Frequency: |
High Frequency |
| Charge Function: |
Three Steps Intelligent Charging Control |
| Display: |
LCD Display |
| Warranty: |
1 Year |
Product Description

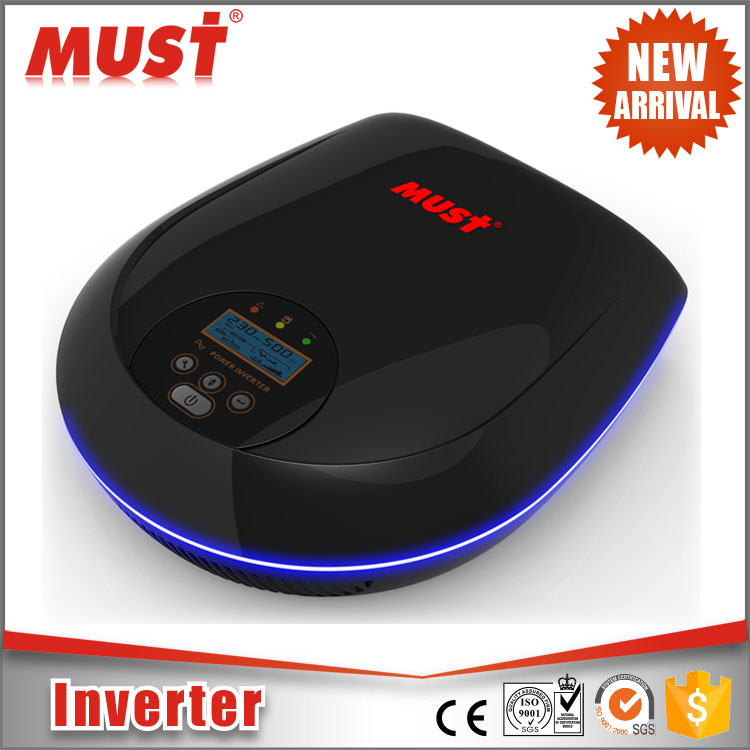

High Frequency Ep1000 Home Inverter 720W Features of power inverter EP1000 series:
- Rated power: 1.2KVA to 2.4KVA
- Simulated sine wave inverter
- Double layers PCB board
- Configurable input voltage ranges(90-280VAC/170-280VAC) via LCD setting
- Display accumulated working time
- 3 steps charging algorithm
- Auto restart while AC recovery
- Overload & short-circuit protection, Battery reverse polarity protection, Deep discharge protection
- Advanced technology optimizes battery life
- Body with light strip and backlight display
- Automatic line-to-battery switchover
- 80cm Battery cables 12AWG*2

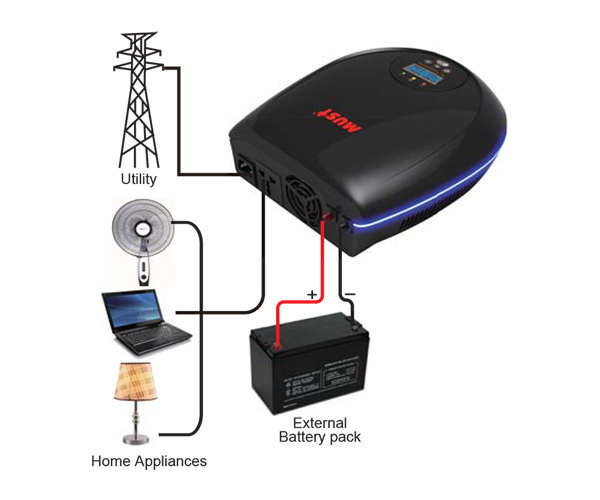

System Connection:

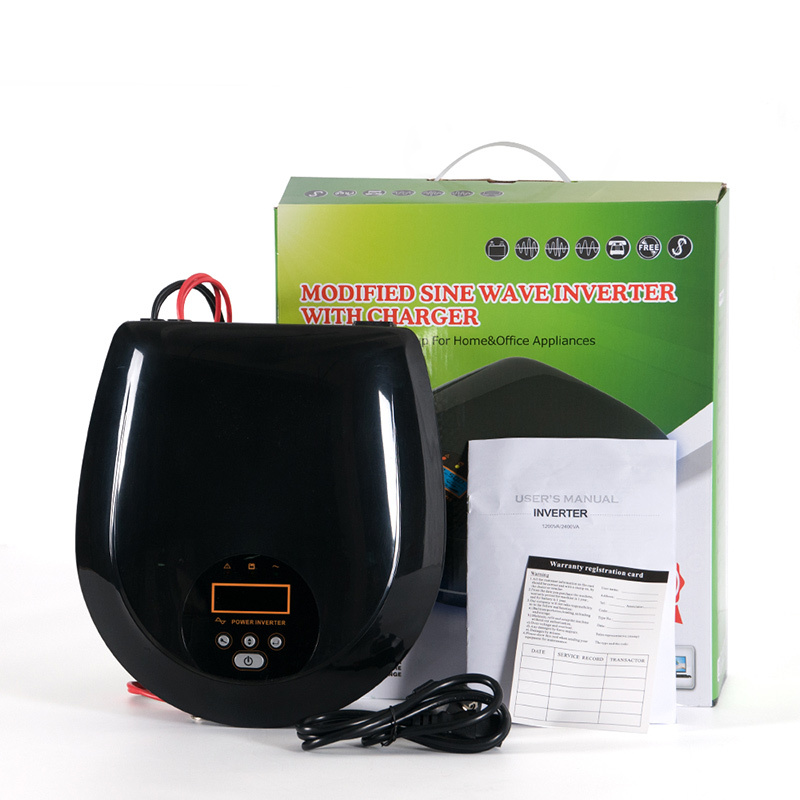

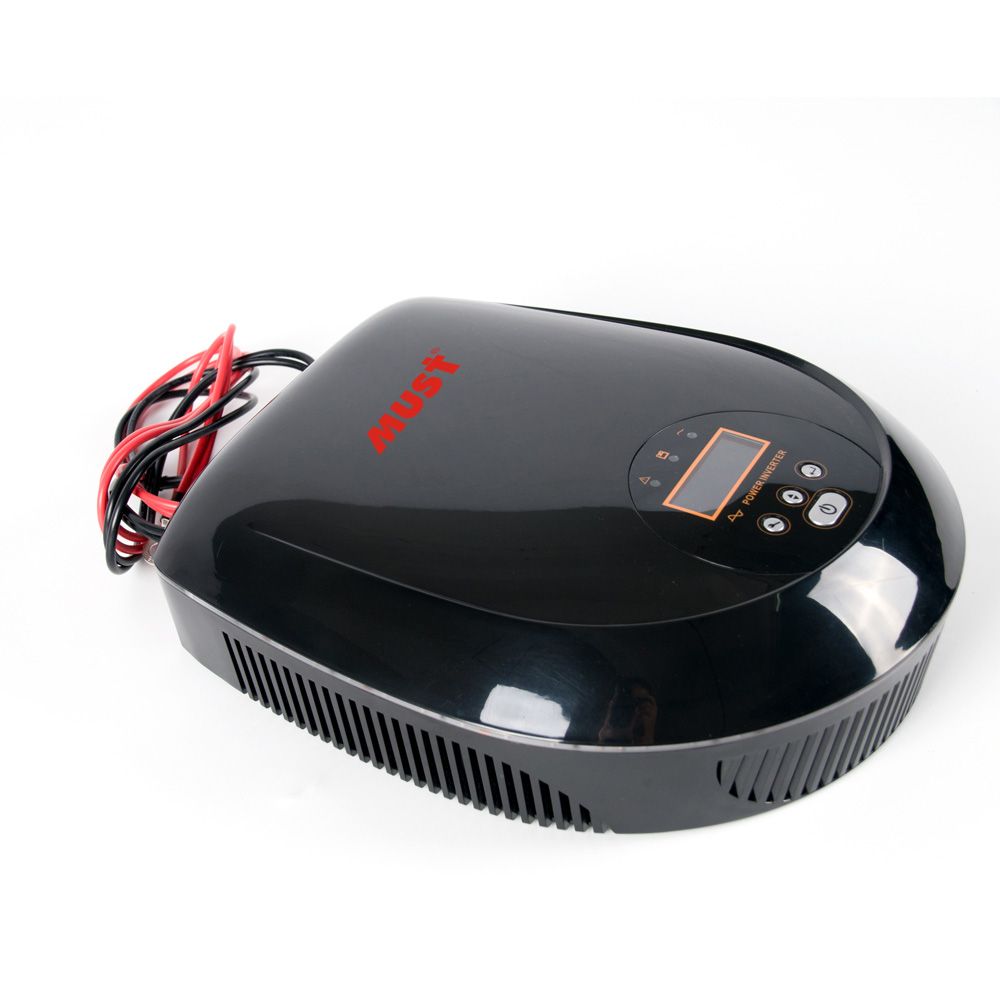

Pictures of EP1100 pro series:
SPECIFICATION
| Model | EP11-1200 | EP11-1800 | EP11-2400 |
| Default Battery System Voltage | 12VDC | 12VDC | 24VDC |
| INVERTER OUTPUT |
| Rated Power | 1200VA/720W | 1800VA/1000W | 2400VA/1440W |
| Waveform | Modifided Sine-wave |
| Nominal Output Voltage RMS | 230V |
| Output Voltage Regulation | +10/-18% |
| Output Frequency | 50Hz/60Hz +/-0.5 Hz |
| Inverter Efficiency(Peak) | >80% |
| Line Mode Efficiency | >95% |
| Power Factor | 0.6 |
| Typical Transfer Time | Typical 15~20ms 40ms max |
| AC INPUT |
| Voltage | 230VAC |
| Selectable Voltage Range-Narrow | 170~280VAC |
| Selectable Voltage Range-Wide | 90~280VAC |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| BATTERY |
| Nominal Input Voltage | 12VDC | 24VDC |
| Minimum Start Voltage | 10.5VDC | 21.0VDC |
| Low Battery Alarm | 10.5VDC+/-0.3V | 21.0VDC+/-0.3V |
| Low Battery Cutoff | 10.0VDC+/-0.3V | 20.0VDC+/-0.3V |
| High Voltage Alarm | 16.0VDC+/-0.3V | 32.0VDC+/-0.3V |
| High Battery Voltage Recover | 15.0VDC+/-0.3V | 30.0VDC+/-0.3V |
| CHARGER |
| Charger Voltage (Vbat<12.5V) | 14.4VDC+/-0.4V | 28.8VDC+/-0.4V |
| Charger Voltage (Vbat>12.5V) | 13.7VDC+/-0.2V | 27.4VDC+/-0.2V |
| Charging Current 10A | 10A±2A |
| Charging Current 20A | 20A±2A |
| Overcharge Protection S.D. | 16VDC ±0.4A | 32VDC ±0.8A |
| BYPASS & PROTECTION |
| Nominal Input Frequency | 50Hz or 60Hz |
| Overload Protection (SMPS Load) | FUSE |
| Output Short Circuit Protection | FUSE |
| Bypass Fuse Rating | 10A |
| Max Bypass Current | 10Amp |
| MECHANICAL SPECIFICATIONS |
| Dimensions (W*H*D) | 253*267*90mm |
| Net Weight (kg) | 2.3 | 2.5 |
| Shipping Dimensions(W*H*D) | 319*328*123mm |
| Shipping Weight (kg) | 2.9 | 3.1 |
| OTHER |
| Operation Temperature Range | 0°C to 40°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year |
| Loading(20GP/40GP/40HQ) | 1800pcs / 3600pcs / 4200pcs |
Packaging & Shipping
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| MUST Factory Certifications |
