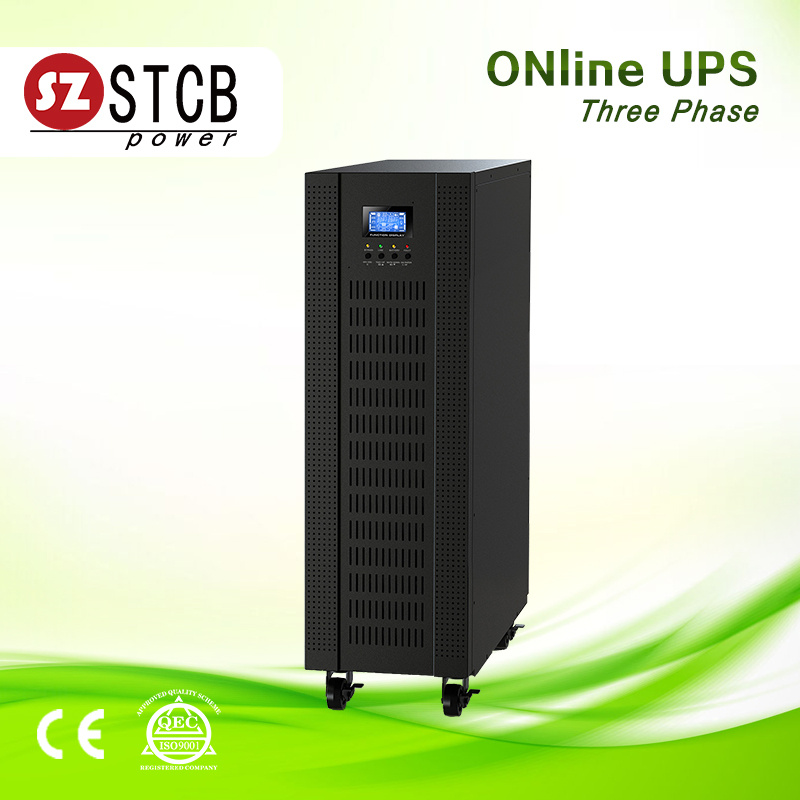

High Frequency Long Backup Time 3 Phase UPS 30kVA
| Price: |
US $ 1550-1680/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
GH33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
3*380V |
| Output Voltage: |
3*380V or 1*220V |
| Power Efficiency: |
0.8 |
| Battery Type: |
20PCS External Battery |
| Transfer Time: |
0 Ms |
| Charging Current: |
1A/2A/4A/6A Adjustable |
| Warranty: |
12 Months |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage / Short Circuit |
| Application: |
Computer / Server |
Product Description
High Frequency Long Backup time 3 phase UPS 30kVA
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
| MODEL | GH33-10K (L) | GH33-15K (L) | GH33-20K (L) | GH33-30K (L) |
| PHASE | 3 phase in / 3 phase out |
| CAPACITY | 8000W | 12000W | 16000W | 24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | ≥ 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 3 x 400 VAC (3Ph+N) |
| AC Voltage Regulation | ± 1% |
| Frequency Range | 46~54Hz or 56~64Hz |
| Frequency Range | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | ≤ 2 % THD (Linear Load) ≤ 5 % THD (Non-linear Load) |
| Transfer Time | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 18/20 pcs | 2*18/20 pcs | 3*18/20 pcs |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1A | 2A | 2A | 4A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension | 815*250*826 | 815*250*826 | 815*250*826 | 815*300*1000 |
| Net Weight | 109kg | 164kg | 164kg | 234kg |
| Long-run Model | Dimension | 592*250*826 | 592*250*826 | 592*250*826 | 815*250*826 |
| Net Weight | 38kg | 40kg | 40kg | 64kg |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
