| Prod Model: |

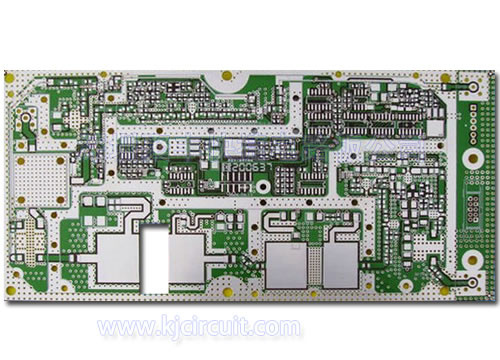

High frequency material board |
| Markets: |
North America,Eastern Europe,Africa |
| Layer: |
6 |
| Thickness: |
1.6mm |
| Soldmask: |
Green |
| Surface: |
Enig |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Uc |
Product Description
High frequency material board referred to as high frequency board, at present we have regular double spray tin high-frequency circuit board, four layers of high frequency circuit board, four layers of mixed voltage high frequency circuit board, 6 layers of mixed voltage high frequency circuit board, eight layers of high frequencyPCB several such products. Design of high frequency circuit board according to the requirement of electrical performance of microwave circuit, selection of high quality high frequency laminate made of insulating material, it has excellent signal anti-interference ability and high mechanical strength, is an excellent microwaveprinted circuit board. With the development of science and technologydevelopment and the application of high frequency PCB Ken, also more and more broad, communication equipment such as we currently understand: converter, the receiver antenna, oscillator, power amplifier, global positioning system, satellite communication, microwave transmission, measuring instruments, the LSI verifier,analyzer, signal generator, frequency, high speed communication transmission,high security, high transmission quality, high memory capacity and processing of electronic products.
Technical Capabilities| Items | Speci. | Remark |
| Max panel size | 32" x 20.5"(800mm x 520mm) | |
| Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | |
| Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width |
| Min thickness(inner layer) | 4 mil(0.1mm) | without copper |
| Inner copper thickness | 1~4 oz | |
| Outer copper thickness | 0.5~6 oz | |
| Finished board thickness | 0.4-3.2 mm | |
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
| ±10% | ±10% | 6~8 L |
| ±10% | ±10% | ≥10 L |
| Inner layer treatment | brown oxidation | |
| Layer count Capability | 1-30 LAYER | |
| alignment between ML | ±2mil | |
| Min drilling | 0.15 mm | |
| Min finished hole | 0.1 mm | |
| Hole precision | ±2 mil(±50 um) | |
| tolerance for Slot | ±3 mil(±75 um) | |
| tolerance for PTH | ±3 mil(±75um) | |
| tolerance for NPTH | ±2mil(±50um) | |
| Max Aspect Ratio for PTH | 8:1 | |
| Hole wall copper thickness | 15-50um | |
| Alignment of outer layers | 4mil/4mil | |
| Min trace width/space for outer layer | 4mil/4mil | |
| Tolerance of Etching | +/-10% | |
| Thickness of solder mask | on trace | 0.4-1.2mil(10-30um) | |
| at trace corner | ≥0.2mil(5um) | |
| On base material | ≤+1.2mil
Finished thickness | |
| Hardness of solder mask | 6H | |
| Alignment of solder mask film | ±2mil(+/-50um) | |
| Min width of solder mask bridge | 4mil(100um) | |
| Max hole with solder plug | 0.5mm | |
| Surface finish | HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver. | |
| Max Nickel thickness for Gold finger | 280u"(7um) | |
| Max gold thickness for Gold finger | 30u"(0.75um) | |
| Nickel thickness in Immersion Gold | 120u"/240u"(3um/6um) | |
| Gold thickness in Immersion Gold | 2u"/6u"(0.05um/0.15um) | |
| Impedance control and its tolerance | 50±10%,75±10%,100±10% 110±10% | |
| Trace Anti-stripped strength | ≥61B/in(≥107g/mm) | |
| bow and twist | 0.75% | |
Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.
Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.
Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.
Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.
Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
