High Frequency Modified Sine Wave Power Inverter for Office

High Frequency Modified Sine Wave Power Inverter for Office
Price: US $ 1-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Nature Star Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Gray
Output Waveform: Modified Sine Wave
Frequency: 50Hz/ 60Hz
Nominal Voltage: 220/230/240VAC
Phase: Single
Power Source: Solar Power
Application: Home Theater
Brand: Upsen

Product Description

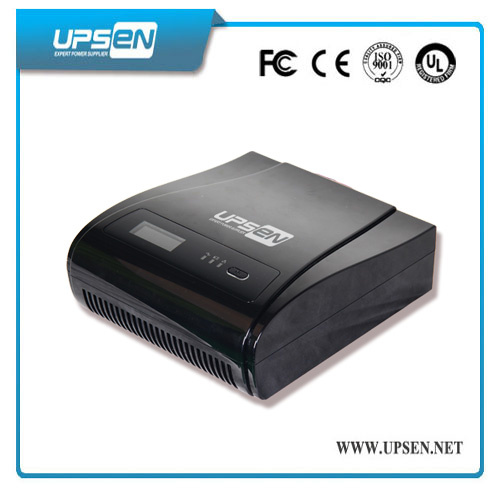

High frequency Modified Sine Wave power Inverter for Office
Modified Sine Wave Solar Inverter Controller Nature Star Series 1000Va-2000Va (1ph in/1ph out)                                                                                                             Key Features
1.Automatic restart.
2.Over-load protection.
3.Auto Switch AC to DC .
4.High Frequency Inverter Model.
5.Full automatic and silent operation.
6.Inverter with Modified Sine Wave Output.
7.Digital LCD Screen, and audible and visual alarm.
8.Restroation of electricity,automatically actived.
9.Three-steps intelligent charging control to recharging.
10.The modified sine wave output waveform suitable for many electronic loads.

Application
Home & Office appliances, Solar power systems,Data Processing Center,Network Rooms,air-condition,fridge,Servers, Communications Equipment etc

Full Protection:
Protection for low battery voltage, overload, output short circuit and overtemperature
restrain surge interference, eliminate noise, protection for
thunderstriking, providing reliable power to the home appliances
Technical Specification
MODELNS1000NS2000
CAPACITYVA/W1000VA/720W2000VA/1300W
NOMINAL    BATTERY VOLTAGE12VDC24VDC
LINE MODE
INPUTNominal    Voltage220/230/240VAC
Voltage Range170-280VAC (Narrow Range)
90-280VAC (Wide Range)
OUTPUTVoltage220/230/240VAC
Frequency50Hz/ 60Hz
Output WaveformFollowing the Utility
EFFICIENCY>95%    (full load, battery full charged)
TRANSFER TIME15ms Typical, 40ms Max.
BACKUP MODE
OUTPUTVoltage220/230/240VAC (+10% / -18%)
Frequency50Hz or 60Hz (Auto detection)
Output WaveformModified Sine Wave
EFFICIENCY >80%
OVERLOAD    PROTECTION1min@>110%,20s@>120%,0s@>150%
PROTECTIONDischarge, over-charged, over-loading, over-temperature, short-circuit protection
BATTERY    CHARGER (powered by AC)
CHARGING ALGORITHM3-step charging
AC CHARGING MODE15Amp / 20Amp Selectable10Amp
FLOATING CHARGING VOLTAGE13.7V27.4V
OVERCHARGING  VOLTAGE16V32V
SOLAR    BATTERY CHARGER
MAX. INPUT POWER450W900W
CHARGING CURRENT40Amp
NOMINAL BATERY VOLTAGE12V24V
OPTIMAL WORK VOLTAGE RANGE15V~18V30V~36V
MAX. PV INPUT VOLTAGE55V
MAX.PV INPUT CURRENT40    Amp
GENERAL
PHYSICALDimension (DxWxH)275mm*226mm*85mm
Net Weight (kg)2.622.76
ENVIRONMENTOperating Environment0- 50°C, 5%-90 % relative humidity (non-condensing)
Storage Environment 15°C to 55°C to 55°C, 5% to 95% humidity (non-condensing)
Noise LevelLess than 50dB
