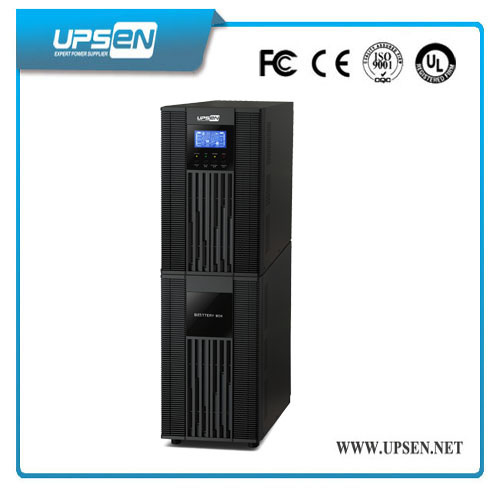

High Frequency No Break Online OEM UPS 6kVA 10kVA with USB Port and Maintenance Bypass
| Price: |
US $ 80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Green Star Series |
| Output Power Factor: |
0.8 |
| Warranty: |
3 Years |
| Display: |
LCD Display |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Standby Time: |
Both |
| Brand: |
Upsen |
Product Description
High Frequency No Break Online OEM UPS 6kVA 10kVA with USB Port and Maintenance BypassUPS Key Features
1.True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. IGBT inverter and output isolation transformer
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. ECO mode operation for energy saving
8. Accepts dual-mains inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14.Advanced no-master-slave parallel technology (optional)
15.Full protection function
16.External SNMP or USB or Dry contacts (optional)
APPLICATIONS:
Medical Equipment,Communications Equipment;Telecommunications
Systems,Electric powered Bicycle and Wheelchairs etc.
Technical Specification
VIEW STAR 3P/3P 10K/15K/20K/30K ONLINE UPS SELECTION GUIDE |
| MODEL | VS33 10K(L) | VS33 15K(L) | VS33 20K(L) | VS33 30K(L) |
| PHASE | 3 phase in / 3 phase out |
| CAPACITY | 10000VA/8000 W | 15000VA/12000W | 20000VA /16000W | 30000VA/24000W |
| INPUT |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 3 x 400 VAC (3Ph+N) |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54Hz or 56~64Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 2 % THD (Linear Load) <= 5 % THD (Non-linear Load) |
| Transfer Time | AC mode to Battery mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 20 pcs (18 - 20 adjustable) | 20 pcs (18 - 20 adjustable)x 2 strings | 20pcs (18-20adjustable) x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 4A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 250 x 826 | 815 x 300 x 1000 |
| Net Weight (kgs) | 109 | 164 | 164 | 233.5 |
| Long-run Model | Dimension, D X W X H (mm) | 592 x 250 x 826 | 592 X 250 X 826 | 592 X 250 X 826 | 815 x 250 x 826 |
| Net Weight (kgs) | 38 | 40 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* L means long-run model
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

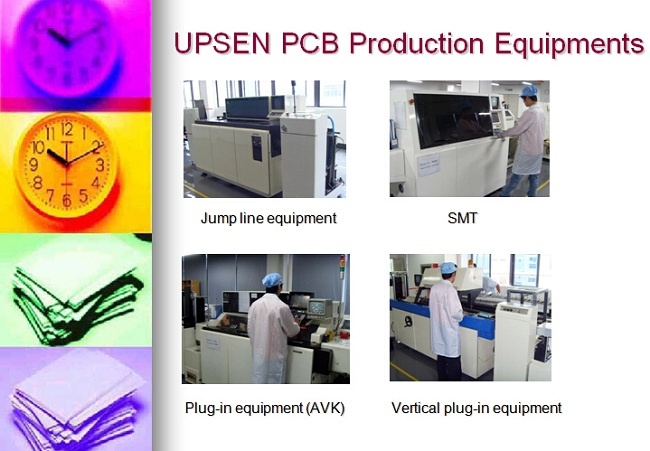

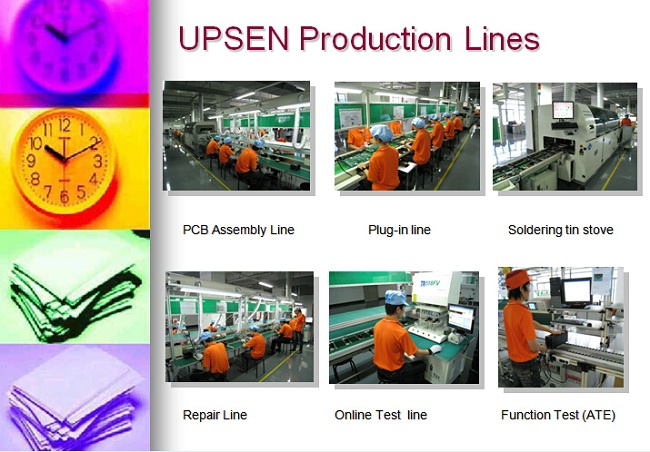

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
