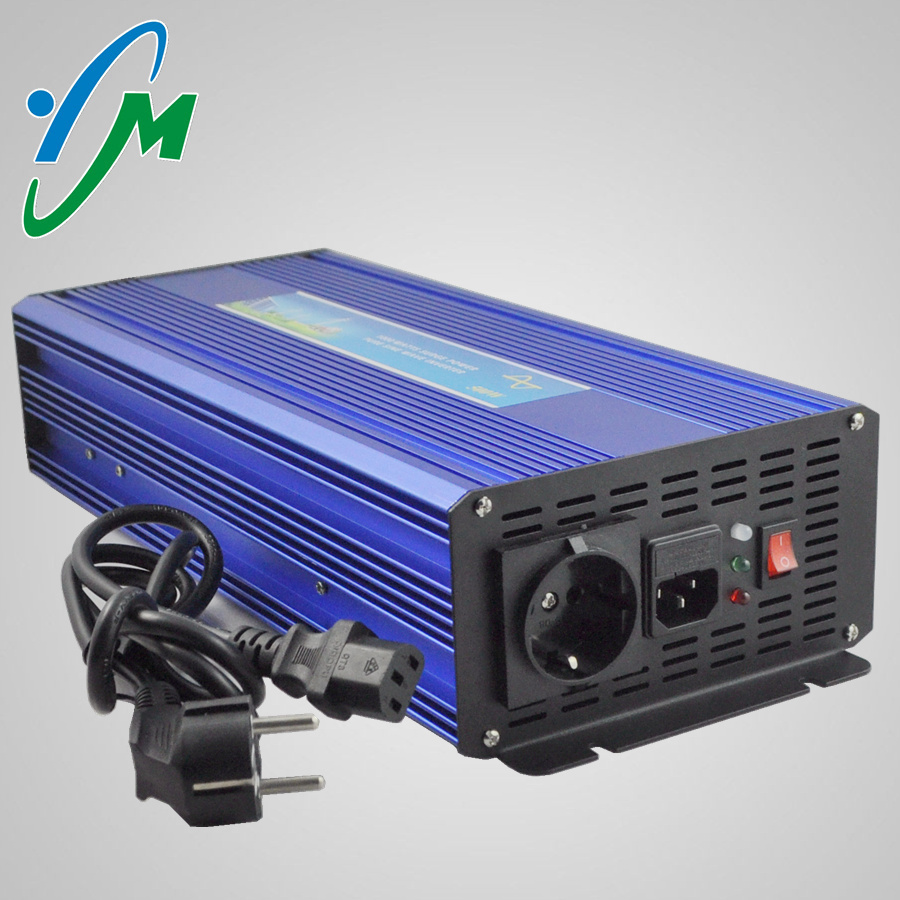

High Frequency off Grid 800W Inverter with Charger
| Price: |
US $ 105-120/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
CZ-800C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
CZ-800c |
| Style: |
Home Power Inverter |
| Continuous Power: |
800W |
| Surge Power: |
1600W |
| Input Voltage: |
12V/24V |
| Output Voltage: |
100-120V/220-240V |
| Wave: |
Pure Sine Wave |
| Export Market: |
Global |
| Function: |
with Charger |
| Warranty: |
24 Months |
| Power Source: |
Solar Power |
| Type: |
DC/AC Inverters |
| Phase: |
Single |
| Output Power: |
501 - 1000W |
| Brand: |
Yompower |
| Application: |
Home Use |
Product Description
Product Details:Place of Origin: Zhejiang, China (Mainland)
Brand Name: Yom
Model Number: CZ-800C
Type: Inverter With Charger
Output Power: 800W
Output Type: Single Phase
Machine Size: 41.5*16.5*8.5cm
Machine Weight: 3.8 kg
Efficiency: 90%
Cooling Way: intelligent Cooling Fan
Certificates: CE & RoHs & ISO9001
On/Off Grid: off grid
Waveform: Pure sine wave
Working Temperature: -30C~+50C
AC Regulation: THDC3% Protection: .Buzzer alarm.Soft start.Reverse polarity.Grounding protection.Over-load protection.Low-voltage protection.Over-voltage protection.Short-circuit protection.Over-temperature protection.Auto reset after being in protection Technical Parameters| Model | CZ-800C | CZ-1000C |
| AC input | AC voltage | 100/110120VACor220/230/240VAC |
| Frequency | 50Hz or 60Hz |
| Charge output | Charge current | 10A | 10A |
| Charge voltage | 14.2V | 28.2V |
| Charge mode | Equalize/float convert automatically |
| DC input | DC voltage | 12 | 24 |
| Voltage range | 10-16V | 20-33V |
| No load current draw | <0.6A | <0.3A |
| Efficiency | > 90% |
| DC connection | Cables with terminal |
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC |
| Continuous power | 800W | 1000W |
| Surge power | 1600W | 2000W |
| Waveform | Pure sine wave |
| Frequency | 50Hz or 60Hz |
| Ac regulation | 3% |
| Protection | Low voltage alarm | 10.5V±0.5V | 21V±1V |
| Low voltage shut down | 10V±0.5V | 20V±1V |
| Short circuit | Shut off output automatically |
| Over load | Shut off output |
| Over voltage shut down | 16V±0.5V | 33V±1V |
| Over thermal | Shut off output automatically |
| Environment | Working temperature | Between -10ºC and +50ºC |
| Working humidity | 20%~90%RH |
| Storage temperature | Between -30ºC and +70ºC |
| Packaging | Machine size(mm) | 415*165*85 | 485*165*85 |
| Packing size(mm) | 510*230*148 | 575*230*148 |
| Net weight(Kg) | 3.8 | 4.7 |
| Gross weight(Kg) | 4.5 | 5.3 |
| Packing mode | Carton packaging |
| Other | Start | Soft start |
| Cooling ways | Intelligent cooling fan |

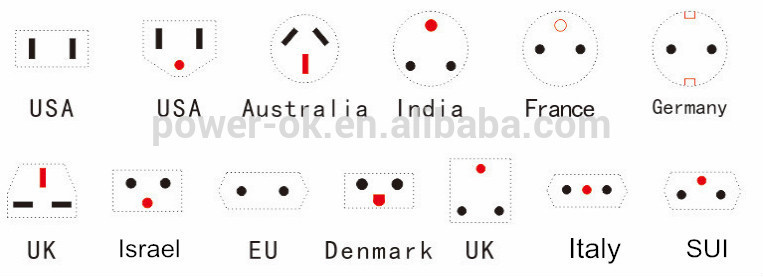

Provide Various of Sockets For Choose
Product Features:1. The safety of shock
2. The original constant power technology
3. Battery over-discharge alarm protection
4. Before and after class isolation technology
5. CPU core SPWM pulse width control technology
6. Doesn't affect the working life of electrical equipment
7. The installation of the MOS transistor anti-reverse technology
8. The original level of before and after the double soft-start technology
9. Components with high-quality original ensure products with high quality.
10. With small, light weight, high efficiency, low distortion, no-polluting, low noise, aluminum alloy shell, surface blasting anodic oxidation treatment, high hardness, beautiful appearance

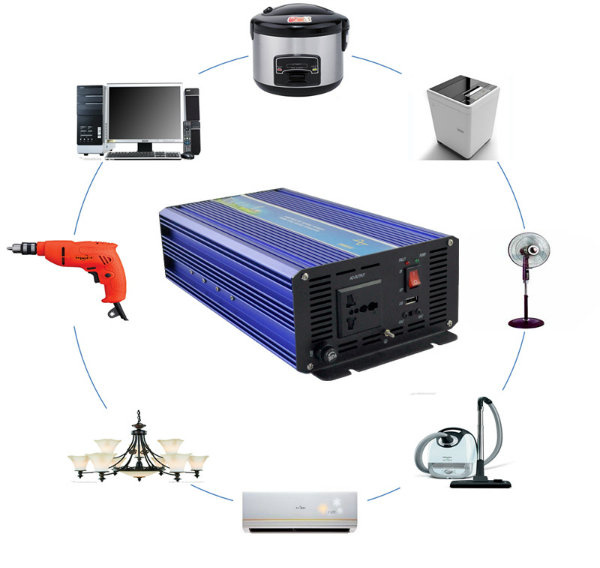

Applicable for: --Solar electric energy generation;
--Wind power generation;
--Communication equipment;
--Industrial intellectual control system;
--Small sized emergency power supply system;
--Travel set equipment, industrial equipment, office equipment, kitchen equipment, household electrical equipment, power tools and so on;
Product Description: Connect Yom 800w pure sine wave inverter with battery terminals, then you can get AC power for your appliances. Or connect Yom dc to ac power inverter with solar panel and controller, then you can get AC power for your appliances from solar power.
Yom DC to AC 800W pure sine wave power inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads.
Packaging details:1pcs/box, unit box size 51*23*14.8cm,N.W3.8kg, G.W4.5kg
4pcs/CTN, carton size53*48*32.5cm, N.W18.0kg, G.W20kg Delivery details:About bulk order, it's up to your quantity, almost within 30days.
About sample, it's within 5 days.Payment and Shipping: 1. We accept T/T, Paypal, Western Union;
2. For sample, it's better via Paypal or Western Union; For quantity order, we can go for T/T;
3. For small order, we usually transport by express like FedEx, DHL, TNT, EMS.
For big order, we can ship by air or by sea. Our Service:1. The good construction warranty-2years
2. Your client satisfied on the right schedule and quality
3. You can get a good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The reasonable price
6. Any query from you are welcome and will be replied within 24 hours.
Yueqing Yongmao Power Co., Ltd. is an innovative scientific and technological enterprise, specialized in integrating the R&D, manufacturing, selling and serving for power inverter ( solar, wind and home system), we can provide the wide power from 150W to 6000W, the products of our company are widely used in various fields as new energy generation, electricity supply, telecommunication, aerospace, national defense, transportation and scientific research institutions etc.
With rich experience in technique researching, designing, manufacturing process, quality control, before-after sale service for power supply products, the company becomes an important base for power supply products at home and abroad, enjoying a high reputation and good popularity.
Good quality, best price and better technical support and service, make Yueqing Yongmao Power Co., Ltd. As your most valuable cooperator in China.
Our enterprise purpose: Trusted partner of customers, home for growth of employees, excellent member of industry.
Enterprise mission: High-quality suppliers in the electronics industry.
Enterprise core values: Forge ahead, solidarity and farsighted, l earning continuously.
Management philosophy: To inspire individual potential, Progress together with staff; Improve product quality and achieve win-win with customers; Unmoved in development goals, go on with the world.
Create value for customers, help growth of employees, hold on social responsibility. Yongmao advocate for employees to create a harmonious and pleasant working and living environment, fully stimulate the creativity and sense of being masters. Yongmao actively give financial aid to students, make donations to earthquake disaster area, and involved in all kinds of charitable activities and public utilities, such as poverty alleviation. We actively contribute to the community, truly live up to our belief "change oneself with its growth and to return society with achievement
