| Prod Model: |
HP9117C 0.7 - 3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
230VAC |
| Nominal Frequency: |
50Hz/60Hz |
| Input Voltage Range: |
170VAC ~270VAC(Normal Range) |
| Frequency Range: |
40Hz±1Hz ~65Hz±1Hz |
| Output Voltage Regulation: |
230VAC±10% |
| Frequency Regulation: |
50Hz/60Hz±1Hz(Auto Detection) |
| Wave Form: |
Pure Sine Wave |
| Power Factor: |
0.8 |
| Surge Rating: |
10000va |
| Transfer Time: |
10ms |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Brand: |
Sorotec |
Product Description

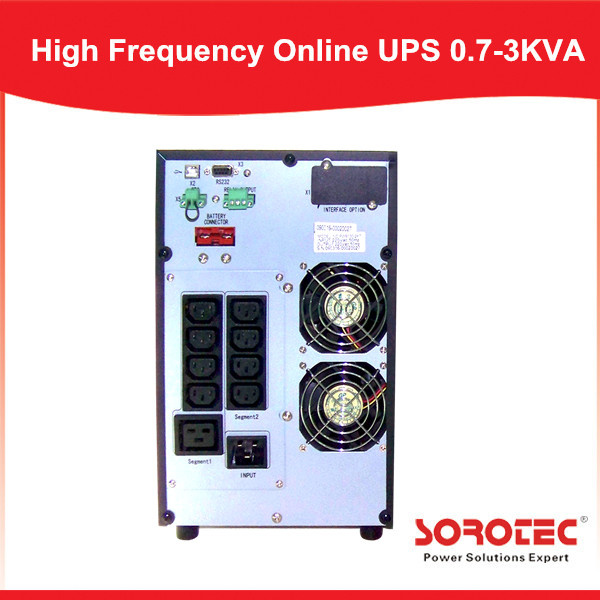

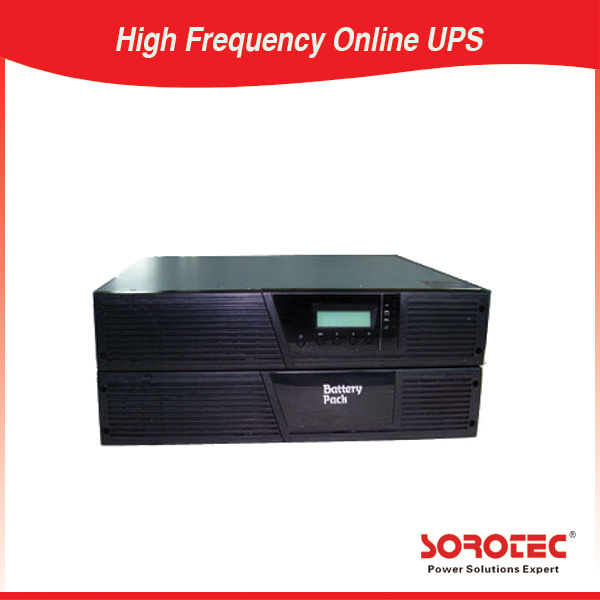

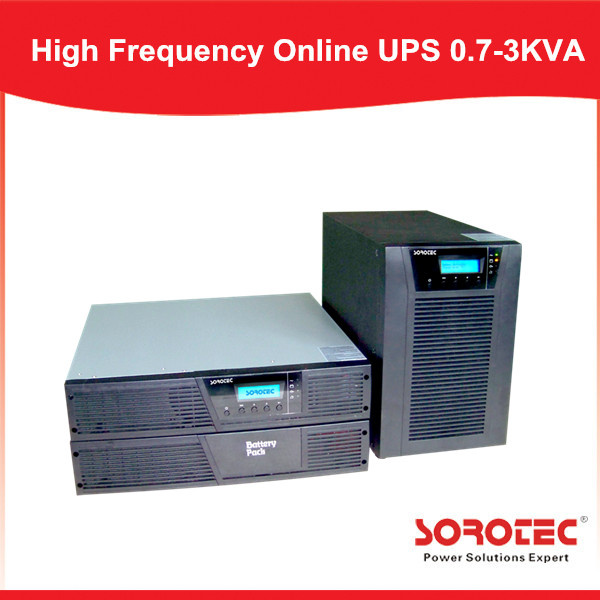

High Frequency Online Uninterrupted Power Supply UPS 0.7 - 3KVAProduct Parameter:Output power factor: 0.9
Configuration: Rack mount or Tower
Product Rating: 1000 to 3000VA
Voltage: 100-120V or 220-240V
Frequency: 50/60Hz(auto-sensing)
Optional language by LCD display(multilingual: English, Russian, German, French, Spanish)
Key Features:1.
Protects against downtime, data loss and process interruption by providing continuous, clean power
2. Offers premium performance with a
0.9 power factor and >95 percent efficiency3.
Increases battery service life and system uptime with ABM battery charging technology
4. Enables
prolonged runtime of essential equipment during power outages by allowing for orderly,
remote shutdown of non-critical system or processes
5. Provides
installation flexibility with a choice of
rack or tower designs, both conserving valuable space.
6. Enhanced monitoring and configuration capability through easily navigated multilingual graphical display
Technical Specification:| MODEL | IG3117C 3000VA-5000VA |
| Capacity | 3000VA/2400W | 5000VA/4000W |
| Nominal Voltage | 230VAC |
| Nominal Frequency | 50HZ/60Hz |
| Input | |
| Voltage Range | 170VAC ~270VAC(Normal range) |
| 91~284VAC(generator/wide range) |
| Frequency range | 40HZ±1Hz ~65Hz±1Hz |
| Output | |
| Voltage Regulation | 230VAC±10% |
| Frequency Regulation | 50HZ/60Hz±1Hz(Auto detection) |
| Wave Form | Pure sine wave |
| Power Factor | 0.8 |
| Efficiency | ≥90%(battery mode) |
| ≥98%(line mode) |
| Over-load Protection | At 110%-150% Load For 10s |
| Load >150% For 5s |
| Surge Rating | 10000VA |
| Transfer time | 10ms |
| Battery | |
| DC voltage | 24Vor48vdc | 48Vor96vdc |
| Nominal charge current | 20A(95-175V,gen/wide,only) |
| 20/35A(Optional) |
| Overcharge protection | Bat. V≥60Vdc,Fault, Buzzer alarm |
| Safety & Working Environment | |
| Safety Certification | CE(EN60950) |
| EMI Classification | EN62040-2, CLASS A |
| Operating Temperature Range | 0ºC to 45ºC |
| Storage temperature | -15ºC to 60ºC |
| Altitude | 0 - 1500 Meters |
| Relative humidity | 5% to 95% non-condensing |
| Audible noise | 60dB max |
| Cooling | Forced air , variable speed fan |
| Dimension | 350*110*407 | 350*110*407 |
| Weight | 8KG | 9KG |
