| Prod Model: |
HP9116C 1-3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220/230/240VAC |
| Rated Frequency: |
50/60 Hz |
| Voltagerange: |
115~295VAC(± 3VAC) |
| Frequencyrange: |
50Hz: ( 46~54Hz); 60Hz; (56Hz~64Hz) |
| Power Factor: |
> 0.98 |
| UPS System: |
High Frequency Online UPS |
| UPS Power: |
1-3kVA |
| Certification: |
Ce |
| UPS Function: |
Uninterrupted Power Supply and Stable to Output |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

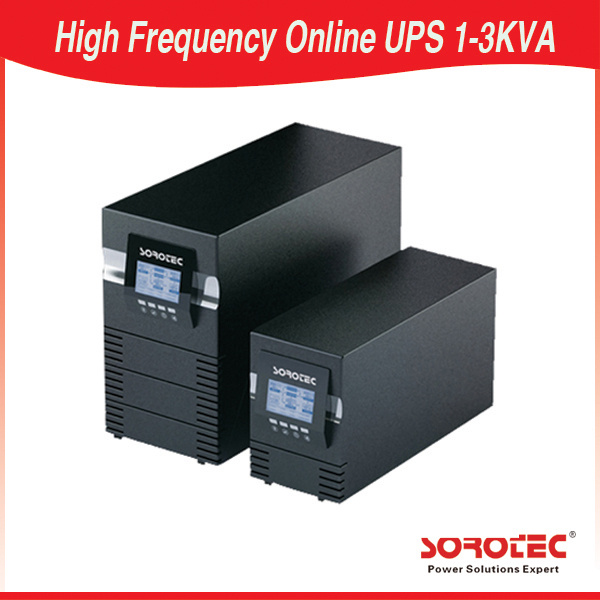

High Frequency Online UPS 1-3KVA
Key Features:
1.Large LCD Display
2.Wide Input voltage range.
3.Input N/L Inspection function and date line protection.
4.Comprehensive Electrical isolation and bypass protection.
5.Automatic alarm; Self-testing function.
6.Pure high frequency online UPS with voltage regulator circuit, which can provide a perfect power
7.protection when UPS working in a poor surroundings.
8.Input PF correction, reduce the harm of harmonic wave to the power grid, it's convenient to connect mini type generator.
9.DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom^
Technical Specifications of HP9116C 1-3kVA:
| Model | HP9116C 1-3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Rated Power | 1KVA/700 W | 2KVA/1400 W | 3KVA/2100 W |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Input |
| VoltageRange | 115~295VAC(± 3VAC) |
| FrequencyRange | 50HZ: ( 46~54HZ); 60HZ; (56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage Regulation | 220/230/240X(1± 2%)VAC |
| Frequency Regulation | 50/60Hz ± 0.05Hz |
| Power factor | 0.7/0.8(Optional)Standard 0.7 |
| Voltage distortion | Linear load< 3% Non-linear load< 6% |
Overload
Capability | 110%~150% for 30s change to bypass model, Recover after load normal |
| Current Crest Ratio | 3: 1 max. |
| Transfer time | 0ms(AC mode → Battery mode) |
| Battery |
| DC Voltage | 36VDC | 96VDC | 96VDC |
| Recharge Time | 7hrs to 90% of capacity after full load discharge |
| Recharge Current | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP (Optional), USB(Optional) |
| Environment |
| Operation Temperature | 0~40 º C |
| Humidity | 0~95%non-condensing |
| Storage Temperature | -25º C~55º C |
| Sea level elevation | < 1500 m |
| Noise Level(1m) | < 45dB | < 50dB | < 50dB |
| Physical Characteristic |
| Weight(KG) | N. W. | 14 | 7 | 31 | 13.5 | 31.5 | 14 |
| G. W. | 16 | 9 | 33 | 16 | 33.5 | 16.5 |
| Dimensions: ( W x D x H )mm | 400X145X220 | 460X192 X340 | 460X192 X340 |
FAQ:
1.Output wave when take the full load
This product provide pure sine wave output when take the resistance load.
...................................................................................................................................................
2.About THDI
Because this series product is not rectifier function, so can't make the THDI when use it.
...................................................................................................................................................
3. About service
We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most
perfect after- sales service.
...................................................................................................................................................
4.About SORO technology
We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,developing new product, perfecting the product . We are provide invests 10% of its annual revenue in researchand development ,aims to offer customers in order to suited to their ever-changing environment enabling themto benefit from the last technological developments.
...................................................................................................................................................
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
