| Prod Model: |
MPS9335 30-150KVA |
| Input Voltage: |
380V/400V/415AC(Optional South America 208V) |
| Input Frequency Range: |
50/60Hz |
| Power Factor: |
Full Load>0.99 ,Half Load >0. 98 |
| Frequency Range: |
40-70Hz |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

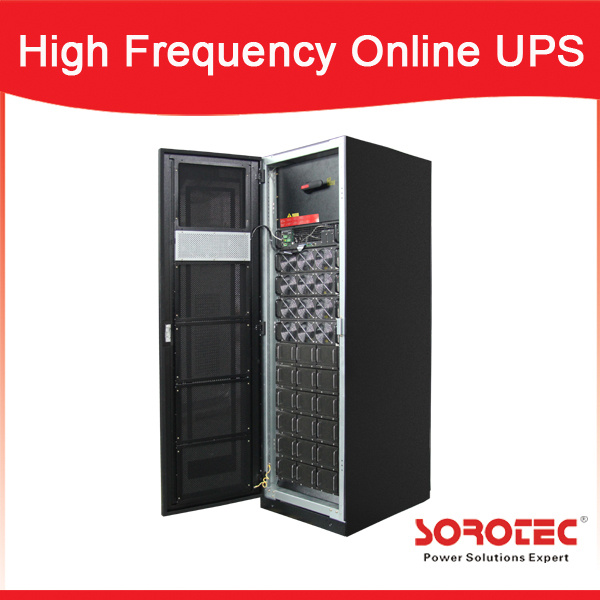

High Frequency Online UPS 10-1200kVA Three Phase Online UPSApplication:Application IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom, Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.
Features:1. Superior energy saving and environment-friendly:
Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99, input THDi<3%
2. Superior capability of powering load:
Output PF is 0.9 or 1, no need of power deration with load of leading or lagging PF
3. Easy-to-install:
Top or bottom cabling, no need of input cabling cabinet.
4. Easy-to-maintain:
Full front access, UPS, failed part can be replaced shortly
5. Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.
6. 6-inch extra large LCD that can display 12 l a n g u a g e ( Chinese , English ,Russian, French ,Spanish and so on).
7. Provide large LCD touch screen (optional)
8. Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
9. On-Line Double Conversion, fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load
10. Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
11. Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
12. Digital load sharing technology features extra low cross current and extreme high system reliability in parallel operation
13. Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
14. Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety at limit conditions
15. Intelligent battery management maintains battery automatically to prolong the battery life
16. Efficient heat dissipation and effective protection under severe environment due to its independent layer-sealed ventilation
Channel and redundant fan design, as well as the paint-protected circuit boards and built-in dust filter
17. Applicable voltage South America
Technical Specifications of Modular UPS, MPS9335 30-150KVA| Model | MPS9335 30-150KVA |
| Capacity | 30-150KVA |
| Main input |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set viasoftware |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDV | THDV<1%(linear load), THDV<3%(nonlinear load) |
| Power Factor | 1 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP41/IP42 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| Weight | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 180KG |
| module :PM10 | 10KVA power module :28KG |
| module :PM20 | 20KVA power module :30KG |
| module :PM30 | 30KVA power module :35KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 |
| 10 module cabinet | 600X2070X850 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
