| Prod Model: |
HP9116C/HP9316C Plus 1-20KVA |
| Nominal Voltage: |
220/230/240VAC |
| Protection Function: |
Overload,Short Circuit,Overvoltage.etc |
| Output Phase: |
Single or Three |
| Output Power Factor: |
>0.99 |
| Frequency: |
50/60Hz |
| Overload Capability: |
105% ~ 125% for 10min |
| Current Crest Ratio: |
3:01 |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |

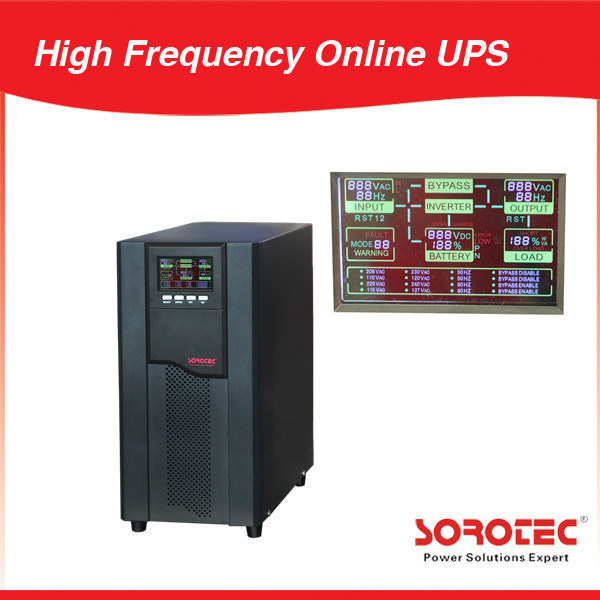

Product Description
High Frequency Online UPS For Industry 1-20KVATypical applicationData centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control systemHighly flexible and extendable
Battery can choose1.Battery voltage can be choice depend on capacity , can satisfy different requirement.
2.Convenience to get more back up time and lower system invests
3.Convenience to save cost of battery
4.Intelligent battery monitors
Charge current can be adjust1.Standant charge current 4A
2.Support more discharge time and more capacity battery for 8A charger
Input topology design1.Support three phase input or single phase input for three phase UPS
2.Super wide input voltage and frequency range suitable for bad power electirc environment
3.Digital control DSP technology and best power component make the system safe and reliable
Multifunction friendly designAdvanced parallel technology1.Stable parallel control technology make sure current sharing to 1%
2.Select trip technology can avoid and isolation system fault then improved system availability
3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements
4.Support maximum 3 units for parallel working
Flexible strategy1.On line mode provides higher system availability
2.High efficiency mode provides more economic operation
3.Frequency conversion provides more stable output
Higher functionOutput power factor up to 0.9Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.991.Three phase input model support three phase PFC , input THDI<5%
2.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%1.Efficiency up to 93.5%when take the 30%load
2.ECO mode efficiency up to 98%
High Frequency Online UPS HP9116C/HP9316 10-20K Plus | Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
