| Prod Model: |
HP9335C PLUS 10-30KVA |
| Model: |
HP9335c Plus 10-30kVA |
| Capacity: |
10kVA-30kVA |
| Output Power Factor: |
0.9 |
| Nominal Voltage: |
380/400/415VAC |
| Transfer Time: |
0ms |
| Battery Type: |
12V/9ah |
| Wide Input Voltage Range: |
110-300VAC |
| Emergency Power Off: |
Epo Function |
| Multi-Communications: |
Snmp+USB+RS232 |
| UPS Application: |
Medical,Telecom,Servers,Personal Computer |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec/OEM |
Product Description

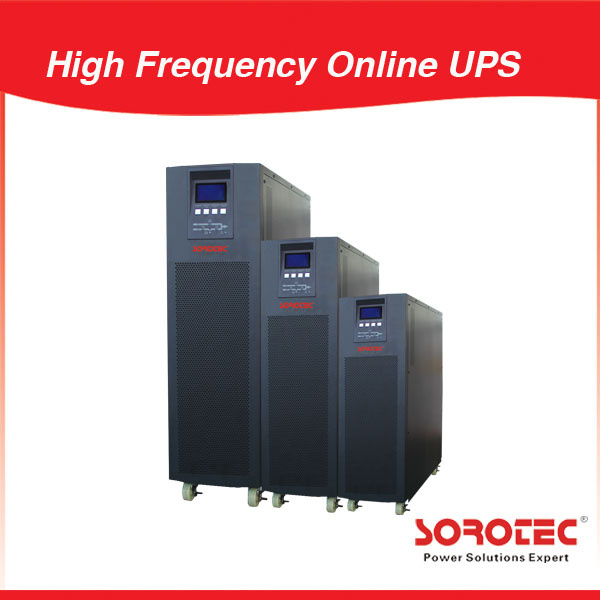

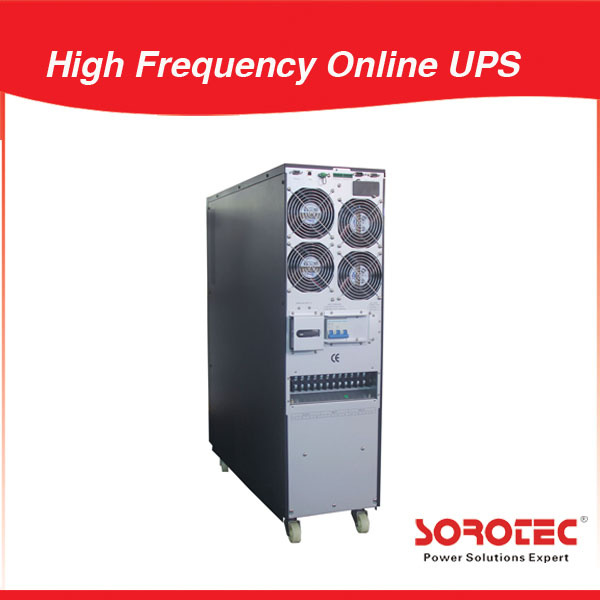

High Frequency Online UPS HP9335C PLUS 10KVA - 30KVA for Telecom
Reduce the investment cost saving valuable space:
HP9335C Plus Series UPS represents the best solution that is both cost effective and environmental friendly,It
delivers an excellent integrated autonomy, reduced footprint and optimum input and output performances,
guaranteeing reliable and flexible power.
| Model | HP9335C PLUS | HP9335C (Standard) |
| Type | High frequency online UPS | High frequency online UPS |
| Capacity | 10-30kva | 10-20kva |
| Output Power Factor | 0.9 | 0.8 |
| Max Efficiency(AC Mode) | >90% | >89% |
| DC Voltage | 12V/9AH | 12V/7AH |
Key Features:
1.True double-conversion
2.DSP technology guarantees high performance
3.Output power factor 0.9
4.Wide input voltage range (110-300 VAC)
5.Active power factor correction in all phases
6.50Hz/60Hz frequency converter mode
7.ECO mode operation for energy saving
8.Accepts dual-mains inputs
9.Emergency power off function (EPO)
10.Generator compatible
11.SNMP+USB+RS-232 multiple communications
12.3-stage extendable charging design for optimized battery performance
13.Adjustable battery numbers
14.Maintenance bypass available
15.Optional N+X parallel redundancy
16.Optional isolation transformer offers full isolation and complete common mode noise rejection
Technical Specifications of Online UPS HP9335C Plus 10-30KVA
| MODEL | HP9335C Plus 10-30KVA |
| 10K | 10K-XL | 15K | 15K-XL | 20K | 20K-XL | 30K | 30K-XL |
| CAPACITY | 10KVA / 9KW | 15KVA / 13.5KW | 20KVA / 18KW | 30KVA / 27KW |
| PHASE | 3 Phase with Neutral |
| INPUT |
| Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load;176 VAC(Ph-N) ± 3 % at 100% Load |
| Low Line Comeback | Low Line Loss Voltage + 10V |
| High Line Loss | 300 VAC(Ph-N) ± 3 % |
| High Line Comeback | High Line Loss Voltage - 10V |
| Phase | Three phase with ground |
| Power Factor | ≥ 0.99 at 100% Load |
| OUTPUT |
| Output voltage | 208/220/230/240VAC(Ph-N) |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system;56Hz ~ 64 Hz @ 60Hz system |
| Frequency Range (Batt.Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Overload | AC mode | 100%~110%:10min;110%~130%:1min;>130%:1sec |
| Battery mode | 100%~110%:30sec;110%~130%:10sec;>130%:1sec |
| Current Crest Ratio | 3:1 max |
| Harmonic Distortion | <= 2 % @ 100% Linear Load;<= 5 % @ 100% Non-linear Load |
| Transfer Time | Line←→Battery | 0 ms |
| Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) |
| Line←→ECO | <10 ms |
| EFFICIENCY |
| AC mode | > 89% | > 89% | > 89% | > 90% |
| Battery Mode | > 86% | > 88% | > 87% | > 89% |
| BATTERY |
| Standard Model | Type
| 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah |
| Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) |
| Recharge Time | 9 hours recover to 90% capacity |
| Charging Current | 1.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) |
| Charging Voltage | 273 VDC ± 1% |
| Long-run Model | Type | Depending on applications |
| Numbers | 18-20 |
| Charging Current | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) |
| Charging Voltage | 273 VDC ± 1% |
| PHYSICAL |
| Standard Model | Dimension, DxWxH(mm) | 832 X250X894 | 832 X250X1275 |
| Long-run Model | Dimension, DxWxH(mm) | 609 X250X768 | 832 X250X828 |
| ENVIRONMENT |
| Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) |
| Operation Humidity | <95 % and non-condensing |
| Operation Altitude | <1000m |
| Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC |
| USB | Power management from SNMP manager and web browser |
