| Prod Model: |
HP9116C 1~3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220/230/240VAC |
| Rated Frequency: |
50/60 Hz |
| Frequencyrange: |
50Hz: ( 46~54Hz); 60Hz; (56Hz~64Hz) |
| Power Factor: |
> 0.98 |
| Voltage Distortion: |
Linear Load< 3% Non-Linear Load< 6% |
| Current Crest Ratio: |
3: 1 |
| Transfer Time: |
0ms(AC Mode to Battery Mode) |
| Communication Interface: |
Smart RS232, Snmp (Optional), USB(Optional) |
| Sea Level Elevation: |
< 1500 M |
| Noise Level(1m): |
< 45db |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

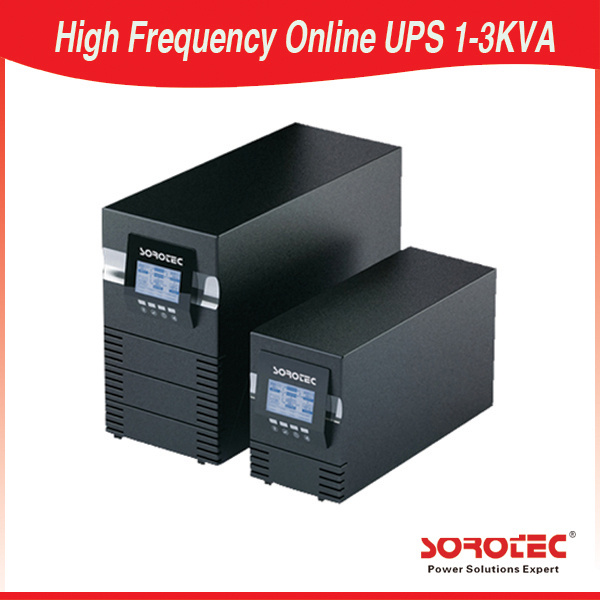

High Frequency Online UPS of Network , Industry , Telecom etc Application
Key Features:
1.Large LCD Display
2.Wide Input voltage range.
3.Input N/L Inspection function and date line protection.
4.Comprehensive Electrical isolation and bypass protection.
5.Automatic alarm; Self-testing function.
6.Pure high frequency online UPS with voltage regulator circuit, which can provide a perfect power protection when UPS working in a poor surroundings.
7.Input PF correction, reduce the harm of harmonic wave to the power grid, it's convenient to connect mini type generator.
8.DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom^
Technical Specifications of OEM UPS HP9116C 1-3kVA
| Model | HP9116C 1-3KVA |
| 1KT | 1KT-XL | 2KT | 2KT-XL | 3KT | 3KT-XL |
| Rated Power | 1KVA/700 W | 2KVA/1400 W | 3KVA/2100 W |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Input |
| VoltageRange | 115~295VAC(± 3VAC) |
| FrequencyRange | 50HZ: ( 46~54HZ); 60HZ; (56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage Regulation | 220/230/240X(1± 2%)VAC |
| Frequency Regulation | 50/60Hz ± 0.05Hz |
| Power factor | 0.7/0.8(Optional)Standard 0.7 |
| Voltage distortion | Linear load< 3% Non-linear load< 6% |
Overload
Capability | 110%~150% for 30s change to bypass model, Recover after load normal |
| Current Crest Ratio | 3: 1 max. |
| Transfer time | 0ms(AC mode → Battery mode) |
| Battery |
| DC Voltage | 36VDC | 96VDC | 96VDC |
| Recharge Time | 7hrs to 90% of capacity after full load discharge |
| Recharge Current | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP (Optional), USB(Optional) |
| Environment |
| Operation Temperature | 0~40 º C |
| Humidity | 0~95%non-condensing |
| Storage Temperature | -25º C~55º C |
| Sea level elevation | < 1500 m |
| Noise Level(1m) | < 45dB | < 50dB | < 50dB |
| Physical Characteristic |
| Weight(KG) | N. W. | 14 | 7 | 31 | 13.5 | 31.5 | 14 |
| G. W. | 16 | 9 | 33 | 16 | 33.5 | 16.5 |
| Dimensions: ( W x D x H )mm | 400X145X220 | 460X192 X340 | 460X192 X340 |
