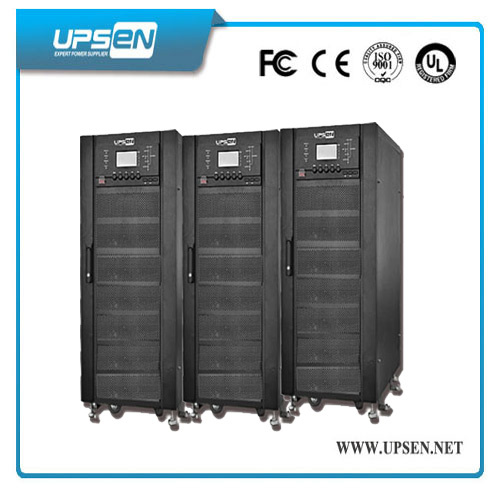

High Frequency Online UPS Power 80kVA with Dual AC Input
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Energy Saving Star ES33 10-80Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power Factor: |
0.9 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
High Frequency Online UPS Power 80Kva with 3 Phase and Dual AC Input1:Online UPS, High Frequency UPS, UPS Power Supply, 3 phase UPS, 380V UPS, LCD UPS,0.9pf UPS
2:UPS with with 3 phase 380/400/415Vac or 190/208/220vac Input/output
2:UPS with 0.9 Power Factor Output
3:UPS with history events record function for UPS maintenance
3 Phase UPS Perfect ApplicationsInternet Servor ,Internet Data Center), Medium-scale network system / computing center, bankand securities, business server group, Medium-scale office automation, precision equipment,etc.
3 Phase UPS FeaturesOutput PF0.93 Phase Input/Output for both 190/208/220Vac and 380/400/415VacComplete digital control technologyExcellent electrical propertiesHigh input power factor 0.99, green and energy-savingDual AC input source supportableStrong environmental adaptabilityComprehensive protection measuresSimilar modular designIntelligent battery management (ABM) | Model | ES3310 | ES3320 | ES3330 | ES3340 | ES3360 | ES3380 |
| Capacity/Rating Power | 10KVA/ 9KW | 20KVA/ 18KW | 30KVA/ 27KW | 40KVA/ 36KW | 60KVA/ 54KW | 80KVA/ 72KW |
| AC Input | Rated voltage | 190/208/220Vac Or 380/400/415Vac
(Line-Line) | 380/400/415Vac
(Line-Line) |
| Input connection | Three phase four wires |
| Power factor | Above 0.99 |
| THDI | Less 5% |
| Voltage range | 150-270Vac or 280-480Vac(Line voltage) |
| Frequency | 40-70Hz |
| Bypass | 150-270Vac or 280-480Vac(Line-Line)+/- 15% |
| Output | voltage precision | ±0.5% |
| Dynamical | Less 5% ( 0 ~ 100% load step) |
| voltage transient |
| THDU | THD less 3% (linear load), 5%(non-linear load) |
| Power factor | 0.9 (lag) |
| Frequency tracking range | 50/60Hz±3Hz |
| Frequency precision | ±0.05%(Battery mode) , ±3hz(Line mode) |
| OUTPUT | phase displacement | 120±0.5°(Balance or imbalance load ) |
| Frequency tracking rate | Less 1Hz/s |
| Overload capability | 105% long time operation |
| 125%,transfer to bypass after 10 minutes |
| Above 150%, transfer to bypass after 1s |
| Bypass | Above 180%, long time operation |
| overload | Above 180%, last for 1s |
| Transfer time | 0ms |
| System |
| System efficiency | Above 92%;98%(ECO) mode |
| Display | Touch screen LCD+LED |
| EMC | IEC62040-2 |
| IEC61000-4-2 (ESD) |
| IEC61000-4-3 (RS) |
| IEC6100-4-4 (EFT) |
| IEC6100-4-5 (Surge) |
| Noise (1m) | Less 60dB |
| Insulating resistance | Above 2M (500VDC) |
| Insulating intensity | (input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min |
| Surge protection | Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA |
| IP class | IP30 |
| Battery configuration |
| Installation(DC) | 384/432/480Vdc adjustable |
| Connection | Bottom cable connection in front |
| Charger | 20% Power capacity(Adjustable) |
| Dimension (W×D×H)mm | Long-run model | 500×717×798 | 720×900×1450 |
| Inbuilt batt. | 500×717×1150 | 500×717×1550 |
| Weight (Kg) | Long-run model | 40 | 65 | 95 | 100 | 240 | 260 |
| Inbuilt batt. | 125 | 175 | 255 | 295 |
32/36/40pcs*7AH/9AH or 72pcs*7AH/9AH
|
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
