High Frequency Online UPS With LED Display (T1K~T3KL)

Name: High Frequency Online UPS With LED Display (T1K~T3KL)
Brand: all-electronics-online.com
SKU: 690139445
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T1K~T3KL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Nominal Voltage:	110/115/120vac, 220/230/240vac
Input Frequency:	46~54Hz, 56~64Hz
Input Phase:	Single Phase With Ground
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit

Product Description

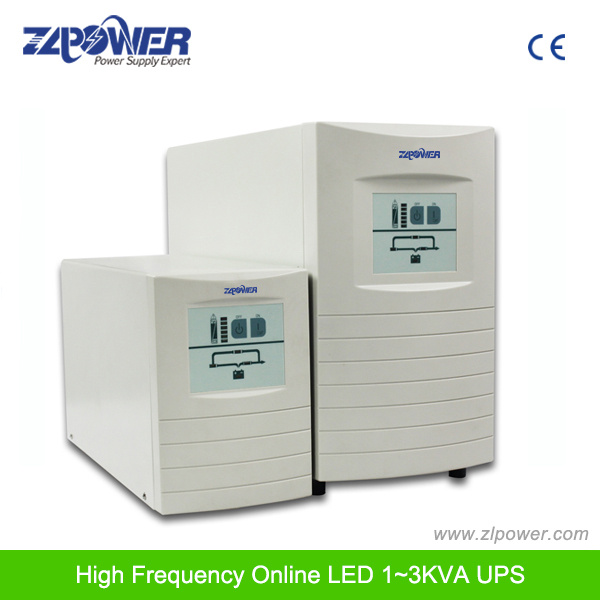

High frequency Online UPS With LED display 1kVA~3kVA

Product Features:
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz

APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...

KEY FEATURES:
High frequency tower UPS 1kVA-3kVA, with cold start and self test when start function, larger LCD display
True on-line double conversion technology with advanced microprocessor control
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On-battery power-on function

TECHNICAL SPECIFICATION:
Model: T1K T1KL T2K T2KL T3K T3KL
Capacity: 1000VA/700W 2000VA/1400W 3000VA/2100W
Input Voltage: (115~300) VAC
Frequency: 46~54Hz/56~64Hz (Adjustable via LCD panel)
Output Voltage: 220/230/240 (1± 1%)VAC (Adjustable via LCD panel)
Frequency: 50/60Hz (Adjustable via LCD panel)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1± 0.2%)
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 5'Depends on the capacity of the external battery bank ≥ 9'Depends on the capacity of the external battery bank ≥ 5'Depends on the capacity of the external battery bank
Half Load ≥ 14' ≥ 21'≥ 15'
Battery Nominal DC Voltage 36VDC 96VDC
Transfer Time 0ms
Overload Capacity 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications: RS-232+Intelligent Slot
Environment Temperature: 0C~40C
Humidity: 15%~90%
Dimensions (L*W*H): 145*400*220mm; 192*460*340mm
Net Weight: 14.00KG, 7.00KG, 34.00KG, 13.50KG, 34.50KG, 14.00KG

Model		T1K	T1KL	T2K	T2KL	T3K	T3KL
Capacity		1000VA/700W		2000VA/1400W		3000VA/2100W
Input	Voltage	(115~300) VAC
	Frequency	46~54Hz/56~64Hz (Adjustable via LCD panel)
Output	Voltage	220/230/240 (1± 1%)VAC (Adjustable via LCD panel)
	Frequency	50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1± 0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥ 5′	Depends on the capacity of the external battery bank	≥ 9′	Depends on the capacity of the external battery bank	≥ 5′	Depends on the capacity of the external battery bank
	Half Load	≥ 14′		≥ 21′		≥ 15′
Battery Nominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0C~40C
	Humidity	15%~90%
Dimensions (WDH) mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14
