| Prod Model: |
EH5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
LCD/ LED |
| Input Voltage Range: |
160-300VAC Half Load |
| Transfer Time AC To DC: |
Zero |
| Output Voltrage: |
220/230/240VAC |
| Temperature Compension: |
Yes |
| Input: |
220VAC |
| Frequency: |
High Frequency |
| Capacity: |
1-40kVA |
| Warranty: |
One Year |
| Product Name: |
High Frequency Pure Sine Wave 1kVA Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Application: |
Home |
| Brand: |
Must, OEM, ODM |
Product Description
Product nameHigh Frequency Pure Sine Wave 1KVA Online UPS

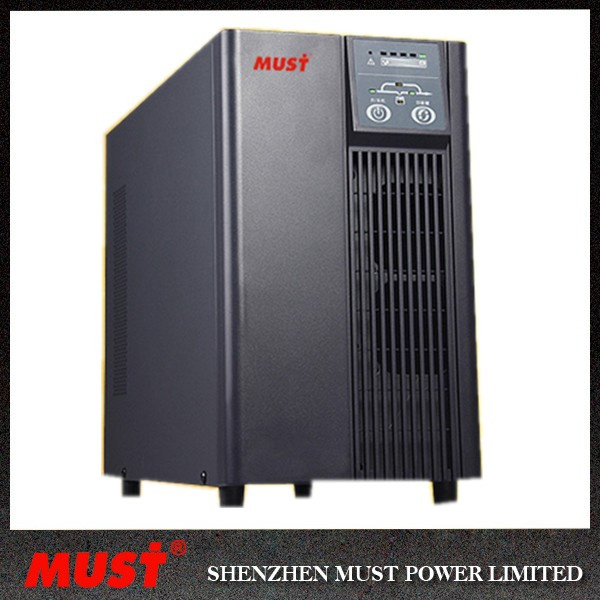

Main featuresa. True on-line double conversion technology with advanced microprocessor controlb. Wide input voltage range with high frequency technologyc. Zero transfer timed. Protection against all type of power problemse. ups power supply has the self test while startf. Site wiring fault warningg. On-battery power-on functionh. Smart RS232 communication interfacei. Intelligent slot availablej. Sealed acid battery,free-maintenance battery in high frequency online ups 1kva 2kva 3kva ups uninterruptible power supplyPictures1kva online ups

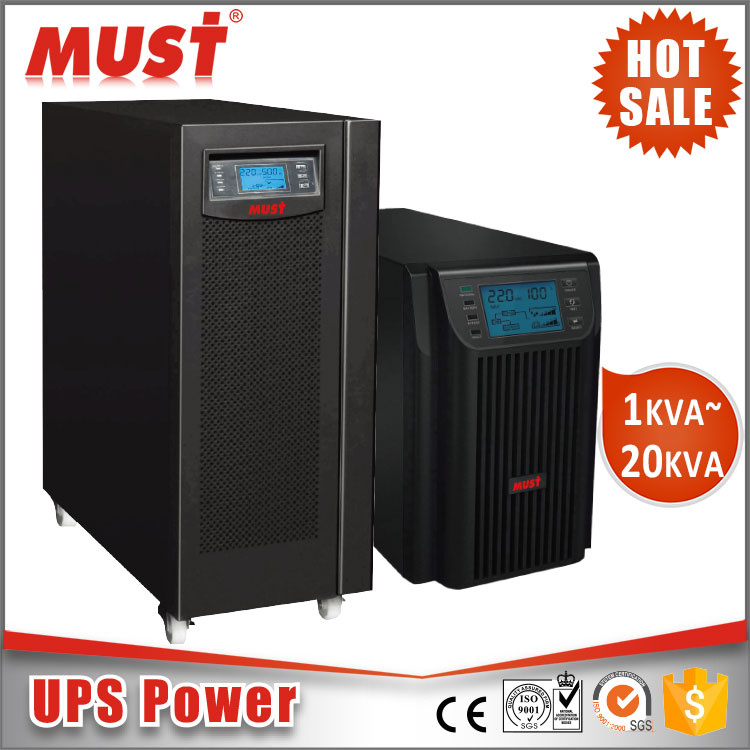

2kva 3kva online ups
pure sine wave online ups with or without inside battery
| Model | HC1K(S) | HC1.5K(S) | HC2K(S) | HC3K(S) |
| CAPACITY | 1000 VA/700 W | 1500VA/1050 W | 2000VA/1400 W | 3000VA/2100 W |
| INPUT |
| Voltage Range | Low Line Transfer | 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5 % or |
| 80 VAC / 70 VAC / 60 VAC / 50 VAC ± 5 % |
| (based on load percentage 100%-80%/80%-70%/70%-60%/60%-0) |
| LowLine Comeback | 175 VAC ± 5 % or 85 VAC ± 5 % |
| High Line Transfer | 300 VAC ± 5 % or 150 VAC ± 5 % |
| High Line | 290 VAC ± 5 VAC or 143 VAC ± 3 VAC |
| Comeback |
| Frequency Range | 40 Hz ~ 70 Hz |
| Phase | Single phase with ground |
| Power Factor | ≥0.99 @ 220-230 VAC (input voltage) |
| OUTPUT |
| AC Voltage Regulation (Bat. Mode) | ±3% |
| Frequency Range | 47 ~ 53 Hz or 57 Hz ~ 63 Hz |
| (Synchronized Range) |
Frequency Range
(Bat. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
| Current Crest Ratio | 03:01 |
| Harmonic Distortion | <= 3 % THD (Linear Load) | <= 4 % THD (Linear Load) |
| <= 6 % THD(Non-linear Load) | <= 7 % THD(Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform(Bat. Mode) | Pure Sine Wave |
| EFFICIENCY |
| To AC Mode | 85% | 88% |
| To Battery Mode | 83% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH | 12 V / 7 AH | 12 V / 7 AH |
| Numbers | 3 | 3 | 8 | 8 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 41.0 VDC ± 1% | 102.1 VDC ± 1% |
| Long-run Model | Battery Type/Numbers | Depending on the capacity of external batteries |
| Charging Current (max.) | 8.0 A |
| Charging Voltage | 41.0 VDC ± 1% | 102.1 VDC ± 1% |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Size DXWXH (mm) | 390 X145 X 210 | 455 X 190 X 330 |
| OPERATING ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 45dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
1.Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations. Package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
3.Payment: T/T( telegraphic transfer (T/T) and Western Union
Samples are Available for Testing and Market Test. OEM is welcomed for us!!!
1-Year Warranty on MUST POWER Products
Guides and After-service Consultancy
Must Power Team will offer these guides below.
A. Need a Accessory
B. Products Repair
C. Power Problems to Solve
D. Power Protection Solutions, etc.
24 Hours After-service consultancy just for you and to make your problems to solve easily.(David Zhang)
