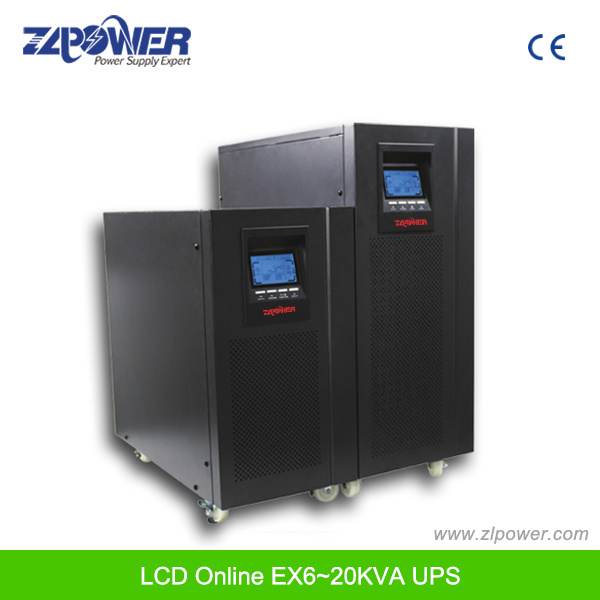

High Frequency Pure Sine Wave Online UPS 6-20kVA
| Price: |
US $ 600-1500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
EX6KVA-20KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| UPS Inter Face: |
Smart RS-232, USB Port Option, Dry-Contact, Snmp, |
| Output Power: |
4.2kw-14kw |
| Input Voltage: |
220V or 380V |
| Output Voltage: |
220V, 230V |
| Network Surge Protection: |
RJ45 I/O Port Available for 10base -T Network or F |
| Input Power Factor: |
0.97 |
| Output Power Factor: |
0.8 |
| AC Mode Efficiency: |
88% |
| Battery Mode Efficiency: |
87% |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description
Online UPS 6-20KVA
Uninterrupted Power Supply
Auto self-protection True On-line
UPS Power supply
UPS: High frequency online UPS pure sine wave UPS with snmp card, RS232 slot 6-20KVA UPS
UPS IP/OP: 220/230/240VAC 50/60Hz
UPS IP/OP: 380/220VAC 50/60Hz
KEY FEATURES for UPS 6-20KVA
True online double conversion technology
Wide input voltage range for UPS
Zero transfer time
Protection against all types of power problems
No add-on CNTL unit required for parallel connection
Low initial investment and flexible for future expansion
Highest reliability and maximum performance for power sharing and redundancy
Equipped with maintenance bypass switch
Smart RS232 and intelligent slot interface
Sealed lead acid, maintenance free battery
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc.
| Model | EX6K | EX6KL | EX10K | EX10KL | EX3110KL | EX3115KL | EX3120KL |
| UPS Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12000W | 20KVA/16000W |
| UPS Input | Nominal Voltage | 220V | 380V |
| Voltage Range | 176~276VAC | 304~478VAC |
| Frequency | 46~54Hz/56~64Hz |
| UPS Output | Voltage | 220/230/240(1± 1%)VAC |
| Frequency | 50/60Hz(adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz): Battery Mode: 50Hz(1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%) |
| Current Crest Ratio | 3: 1 |
| Output Wave Form | Sine Wave |
| Back-up Time | Full Load | ≥ 7′ | Depends on the capacity of the external batteries bank | ≥ 5′ | Depends on the capacity of the external batteries bank |
| Half Load | ≥ 20′ | ≥ 13′ |
| Battery Nominal Voltage | 192VDC |
| Transfer Time | 0ms |
| Overload Capacity | 105%~130% 10min, over 150%1min |
| Communication | RS-232+Intelligent Slot |
| Operating Environment | Temperature | 0C~40C |
| Humidity | 15%~90% |
| Dimensions(W*D*H)mm | 260*570*717 |
| Net Weight(Kg) | 90 | 35 | 93 | 38 | 39 | 55 | 55 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
