High Frequency Sine Wave Online UPS (N-3C10K)

Prod Model:	N-3C10K
Power:	4.2kw/7kw/10.5kw/14kw
Normal Voltage:	220VAC
Frequency Range:	40.5~55Hz
Wave Form:	Pure Sine Wave
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Classification:	UPS
Brand:	Greenmaster

Product Description

High Frequency Sine Wave Online UPS (N-3C10K)

* I/P: Three Phase,Wire Voltage 380VAC


* O/P:Single Phase, 220VAC± 1%


* Capacity:10KVA /15KVA /20KVA


* Wave Form:Pure sine wave


* Transfer Time:0 ms


* DC voltage: 240VDC/192VDC


* Battery: External Battery


Key Features


1.High frequency and double conversion online UPS


2.Three Phase in Single phase out, Power Factor 0.8


3.Fully digitized microprocessor control,Zero transfer time


4.Wide input voltage range and  Advanced PFC technology


5.Self-testing when UPS startup


6.Advanced battery management


7.Automatic battery charging in UPS off mode


8.Lightning and surge protection


9.Short circuit ,overload and the others full protection


10.Battery voltage and load capacity display


11.Smart RS232 communication with monitoring software 12.SNMP card optional


13.LCD display,EPO,ECO,USB communication,Maintenance bypass optional


14.LCD with Fault Codes


15.N+X parallel design optional



Technical Specifications


ITEM	MODEL	N-3C10K	N-3C15K	N-3C20K
Capacity	VA / Watts	10KVA/8KW	15KVA / 12KW	20KVA/16KW
Input	Normal voltage	380V,RST+N+G
	Input Voltage range	Phase Voltage range ,120V-275V+-5V
	Frequency range	50/60±10%
	Input power factor	>0.99(220VAC,full R load)
	Generator	Support generator input(Generator rating≥2*UPS rating
Output	Voltage range	220VAC+-1%
	Frequency range	48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode)
	Wave form	Pure Sine Wave
	Transfer Time	0 ms
	Distortion (Full Load)  linear load	< 3%
	distortion  (Ful l Load) nonlinear  load	< 5%
	Overload capacity	105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm.
	Load peak ratio	3:1(max)
192VDC Battery	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	192VDC	192VDC	192VDC
	Battery Capacity	External	External	External
	Around backup time (Full load)	Depended on battery capacity
	Around backup time (Half load)	Depended on battery capacity
	Recharge time	Depended on battery capacity
Battery	Type	Maintenance free valve regulated lead acid (VRLA) battery
	Battery voltage	240VDC or 192VDC	240VDC or 192VDC	240VDC or 192VDC
	Battery Capacity	External	External	External
	Around backup time (Full load)	Depended on battery capacity
	Around backup time (Half load)	Depended on battery capacity
	Recharge time	Depended on battery capacity. Charger Current 2.5Amp or 5Amp

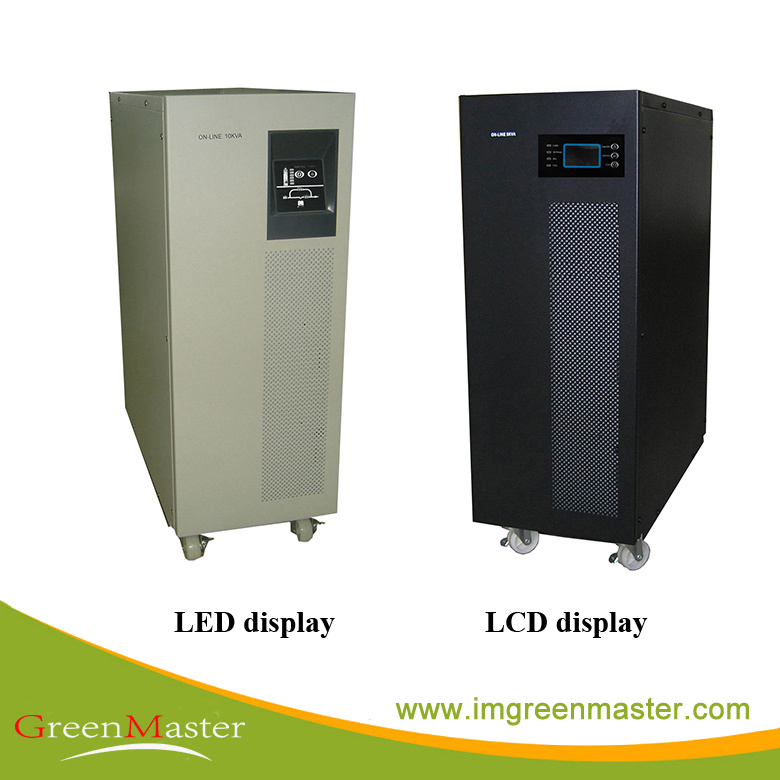

LED Display	LED	Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault
Audible Alarm	Battery Mode	Beeping every 4 seconds (re-settable) and every second when battery
	Overload	Beeping twice every second
	UPS Fault	Beeping Continuously
	Bettery low/charger fault	Beeping every 1 second
	Bypass mode	Beeping every 2 min
	L/N inverse	Beeping every 2 min
Communications		RS232,With monitoring software. USB Option, SNMP Card Option
working Environment	Working temperature	- 20ºC~40ºC
	Humidity	0-95% non-condensing
Size and weight	Product size WxDxH (mm)	260*565*715	260*565*715	260*565*715
	package Size WxDxH (mm)	450*620*670	440*710*980	440*710*980
	N.weight(Kg)	28	36	36
	Gross weight(Kg)	34	42	42
optional functions	ECO	optional
	EPO	optional
	LCD display (optional)	input / output VAC & HZ, Load Rate,Battery Rate,Temp.
REMARK		The UPS Can rework to single phse in single phase out
