High Frequency Single Phase Line Interactive 2000va UPS
| Price: |
US $ 100-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Panda-2000 |
| Wave Form: |
Step Sine Wave |
| Capacity: |
2000va/1300W |
| Input Voltage: |
115/230VAC |
| Battery Voltage: |
24VDC |
| Physical: |
415*430*89/30kg |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overvoltage |
| Standby UPS: |
Step Sine Wave |
| Brand: |
Jetpower |
Product Description

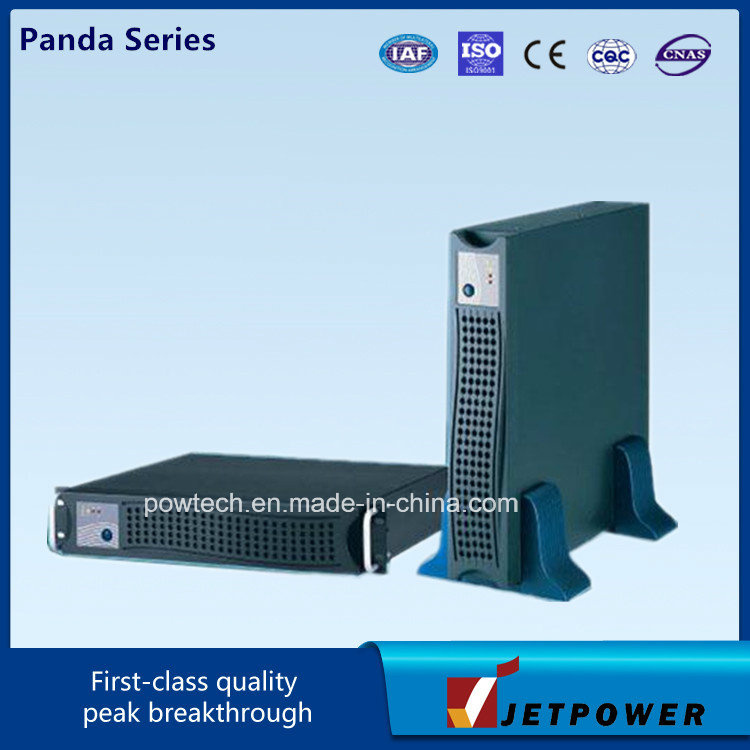

2000VA Line interactive, step sine wave rack and tower convertible UPSSnapshotsModel: Panda-2000
Capacity: 2000VA/1300W
Height: 2U
Battery: 12V7AH*4pcs, DC=24VMain Features1) Line-interactive design and true sine wave output
2) Microprocessor control guarantees high reliability
3) Built-in Boost and Buck AVR to stabilize input voltage
4) Generator compatible
5) User-replaceable hot swappable battery design & cold startup capability
6) Data line surge protection, USB and RS-232 communication port
7) 19" Rack/Tower convertible
8) CE approval and FCC class BSpecifications for Panda Series 1.1K-2K UPS:| Model | PRT-1100VA | PRT-1500VA | PRT-2000VA |
| Capacity (W) | 715W | 975W | 1300W |
| Input | Nominal voltage | 115/230VAC |
| Voltage range | +/-25% |
| Frequency | 50/60Hz +/- 6Hz (automatic sense) |
| Output | Nominal voltage | 115/230VAC |
Voltage
regulation | +10% ~ -13% (AC mode); +/-8% (battery mode) |
Frequency
regulation | 50/60HZ ±0.5% (Auto sense) |
| Overload | 105 +/-10% alarm; 140+/-10% for 2mintues
then UPS shutdown (AC mode); |
105 +/-10% for 20seconds then UPS shutdown;
140+/-10% UPS immediately shutdown (Battery mode); |
| Waveform | Step sine wave |
| Transfer Time(ms) | ≤10ms |
| Battery | Type | VRLA |
| Voltage | 24Vdc |
| Backup time | 10~25 minutes (depends on load) |
| Recharge time | 6hrs recharge to 90% |
| Data line surge suppression | 1482 Joules (115V type); 476 Joules (230V type) |
TEL/FAX surge
suppression | Joules | 114 Joules |
| Type | RJ11 (one pair), 2C |
| Networking Surge | Performance | Up to 100Base-T |
| Type | RJ45 (one pair), 2C |
| Status LEDs | Line Normal, Battery Backup, Boost, Buck, Battery Replacement,
Fault, Overload, Load capacity/Battery capacity |
| Audible alarm | Battery backup, battery backup over 30minutes, battery low,
overload, fault |
| Communication Interface | USB, RS-232 |
| Ambient | Temperature | 0 ~ 40ºC |
| Humidity | 10~95%, no condensation |
| Altitude | 3000m |
| Safety & EMC | CE, TUV, FCC |
| Physical | SIZE(W×D×H, mm) | 415 * 430 * 89 |
| Weight (kg) (w batt.) | 20.4kg | 26kg | 30kg |

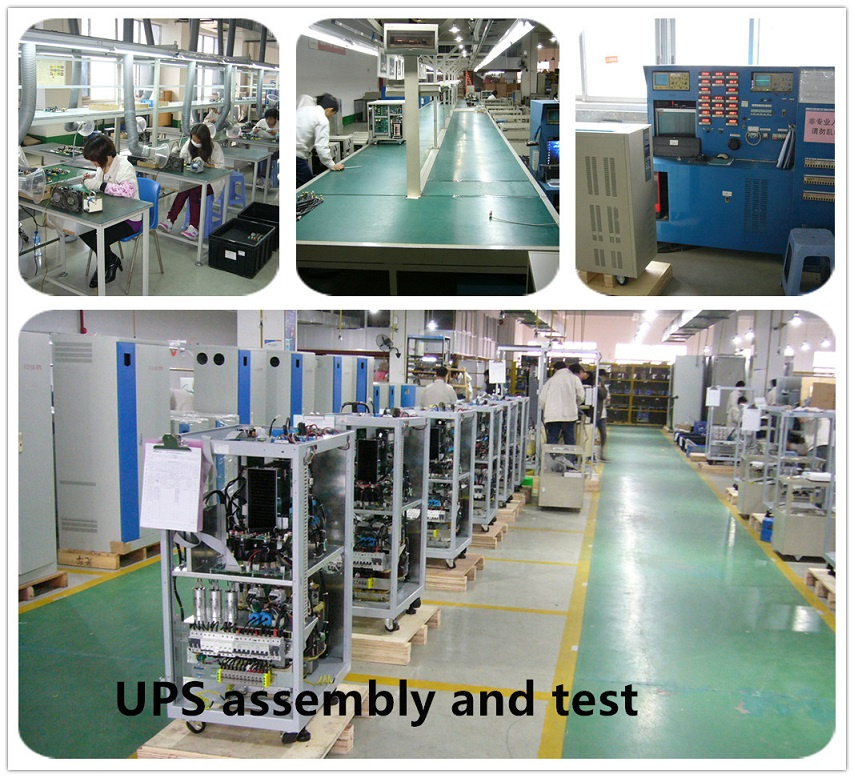

UPS Production:
Certificates:
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
