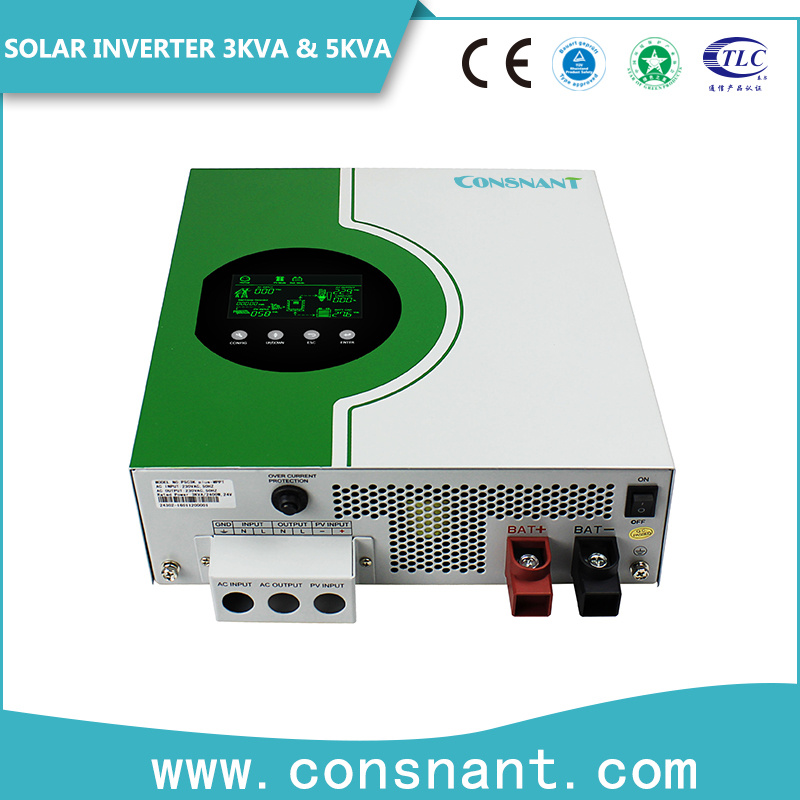

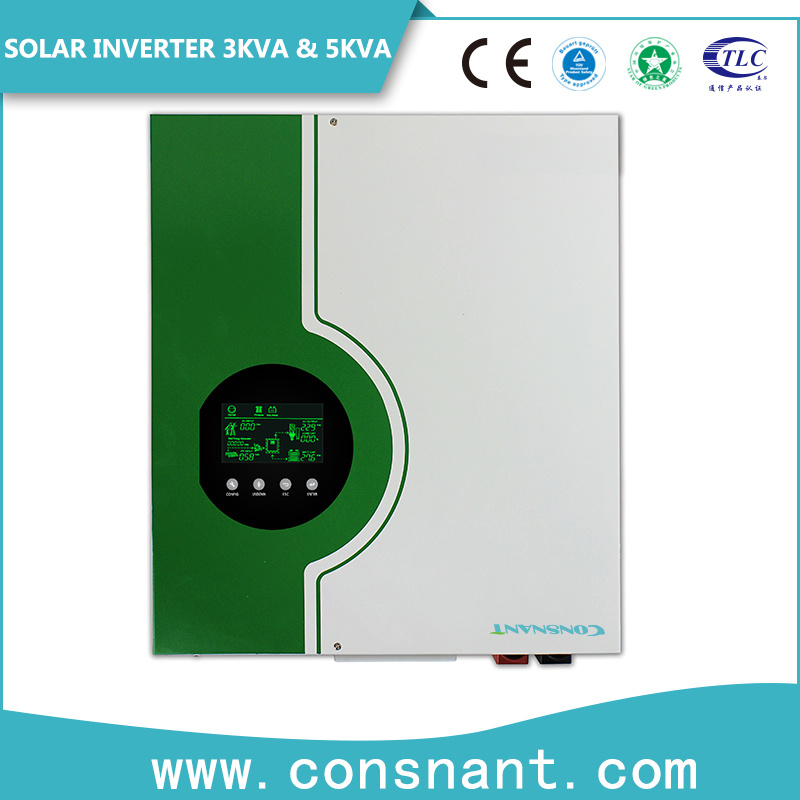

Product Description

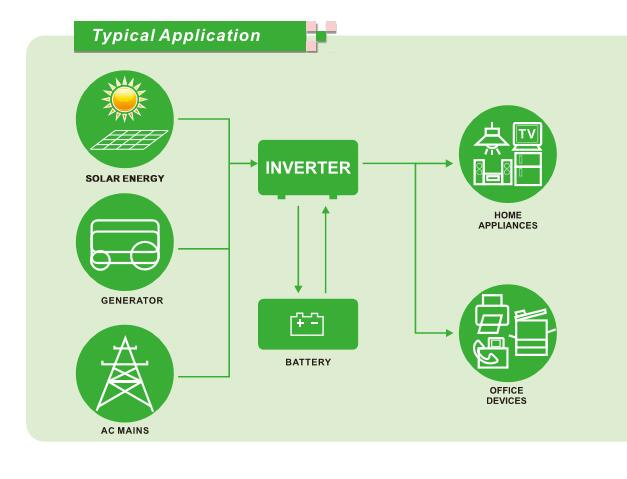

♦ AC/Solar charging Off grid Hybrid Inverter.
♦ Built-in MPPT solar charge controller
♦ Selectable input voltage range for home appliances and personal computers
♦ Configurable AC/Solar input priority via LCD setting
♦ Compatible to mains voltage or generator power
♦ Auto restart while AC is recovering
♦ Smart battery charger design for optimized battery performance
♦ Over load, over temperature, short circuit protection.
| Specifications | | |
| Patameters Model | CNS114 3K-24 | CNS114 5K-48 |
AC
Input | Nominal Power | 3KVA/2400W | 5KVA/4200W |
| Input Voltage Waveform | Nominal input Voltage |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 170Vac±4%(Normal) or 90Vac±4%(Wide&Generator) | 170Vac±4%(Normal) or 130Vac±4%(Wide&Generator) |
| Low Line Re-connect | 180Vac±4%(Normal) or 100Vac±4%(Wide&Generator) | 180Vac±4%(Normal) or 135Vac±4%(Wide&Generator) |
| High Line Disconnect | 280Vac±4%(Normal) or 280Vac±4%(Wide&Generator) | 280Vac±4%(Normal) or 280Vac±4%(Wide&Generator) |
| High Line Re-connect | 275Vac±4%(Normal) or 275Vac±4%(Wide&Generator) | 275Vac±4%(Normal) or 275Vac±4%(Wide&Generator) |
| Max AC input Voltage | Max:280VAC |
| Output Short Circuit Protection | 30A Circuit Breaker | 40A Circuit Breaker |
| Frequency | 50Hz:41-54Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.8 | 0.84 |
| Bypass Breaker Size | 30A | 40A |
| Nominal Output Voltage (V) | 230Vac ± 10%rms |
Nominal Output
Frequency (Hz) | 50Hz ± 0.3Hz |
| Half load efficiency | 90% | 93% |
| Full load efficiency | 88% | 89% |
Solar
charger | Charger mode | MPPT |
| Maximun PV Array Power | 960W | 2800W |
| Rated Charge Current | 40A | 60A |
| PV Low Voltage Disconnect | 25VDC±0.6VDC | 50VDC±1.2VDC |
| PV Low Voltage Re-connect | 30VDC±0.6VDC | 60VDC±1.2VDC |
| PV High Voltage disconnect | 75VDC±0.6VDC | 150VDC±1.2VDC |
| PV High Voltage Re-connect | 66VDC±0.6VDC | 120VDC±1.2VDC |
| Efficiency | ≥98% |
AC
Charger | Nominal Charger Current | 20A | 20A |
| off-line charging Disconnect | 60Vac±4%(Low) or 280Vac±4%(High) | 130Vac±4%(Low) or 280Vac±4%(High) |
| off-line charging Re-connect | 65Vac±4%(Low) or 270Vac±4%(High) | 135Vac±4%(Low) or 270Vac±4%(High) |
| Over charge Protection | 30VDC±0.6VDC | 60VDC±1.2VDC |
| Three stage:Boost CC →Boost CV →Float | 28.2VDC±0.6VDC(Boost CC/CV) | 56.4VDC±1.2VDC(Boost CC/CV) |
| 27.4VDC±0.6VDC(Float) | 54.8VDC±1.2VDC(Float) |
| Efficiency | Efficiency (Battery Mode) | >90% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 24VDC | 48VDC |
| Low Battery Alarm | 21VDC±0.6VDC | 42VDC±1.2VDC |
| Low DC input shut-down | 20VDC±0.6VDC | 40VDC±1.2VDC |
High DC input
Alarm & Fault | 29VDC±0.6VDC | 58VDC±1.2VDC |
| No-load loss | 27W | 57.6W |
Transfer
Time | AC to DC | 20ms |
| DC to AC | 10ms |
System
Parameter | Over-Load Protection | 110%<load<150%,beeps 0.5s every 1s,and Fault after 10s off
the output,load≥150%,beeps 0.5s every 1s,and Fault after 5s |
Output Short Circuit
Protection | Current limit (Fault after 4 cycles max) |
| Surge Rating | 1:2(VA) |
| Protections | Low battery, over charging, over load, over temp |
| Indicators | LCD Display |
General
Specifications
| Operating Temperature
Range | 0ºC to 40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 326*268*88.8mm | 456*356.8*118mm |
| Net Weight(kg) | 5.6kg | 11.1kg |
| Gross Weight(kg) | 6.5kg | 12.5kg |
| | | | |
| Product specifications are subject to change without further notice | |
Shenzhen CONSNANT Technology Co., Ltd. (simple name: CONSNANT) is a professional manufacturer engaged in research, development and production of UPS (Uninterruptible Power Supply) including the Modular UPS, Outdoor & Indoor UPS, Industrial special UPS, Low Frequency & High Frequency Online UPS and Solar Power System both for home appliance and telecom equipments.
Our product has obtained the CE, ISO 9001, ISO 14001 and local Chinese TLC certificates. Having reached good sales results in China, we are now expanding our sales overseas.
We are proud of the fact that most of our company's engineering staff is well-qualified and has gained experience in relevant fields more than 10 years. In order to protect your equipment from electrical supply network instability, we offer innovative solutions that obtain higher availability systems, improve efficiency and offer flexible solutions to meet specific needs and range of application. The UPS product is widely used in data and computing centers, finance institutions, banks, within industry and medical fields.
We welcome any kind of collaboration, will enjoy any opportunities of dealing with new costumers: From distributors to ultimate consumers, undertake both wholesale and retail orders, including the sale of finished goods or parts.
If you start work with us, you will not only get high-quality product at reasonable price, but also maintain the profitable conditions for further years.
We are located in the world-famous High-Tech center - Shenzhen city, China. Our factory is close to airport. If you are lucky to visit the city, you are kindly welcomed to visit our factory.
