High Frequency Step up Transformer, Step Down Transformer

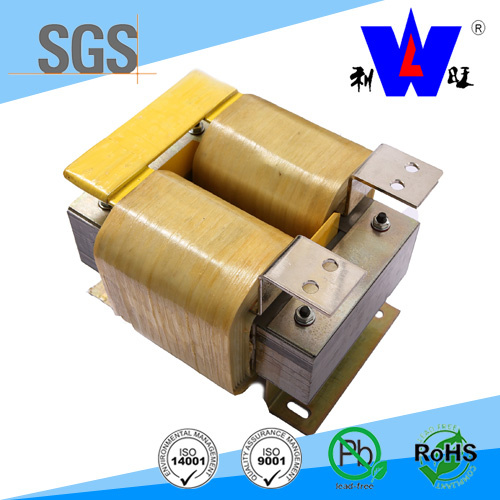

Name: High Frequency Step up Transformer, Step Down Transformer
Brand: all-electronics-online.com
SKU: 810057975
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Rated Power:	1W to 10kw
Environmental Certification:	ISO14001
Safety Certification:	CQC03003095~3097
Other Certification:	RoHS
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Winding Type:	Multi-winding Transformer
Certification:	RoHS

Product Description

Product Uses
1. Mining reactor is used for mining equipment, including frequency converter and starter.
2. The Mining reactor has the function of motor soft start.
3. It can suppress the harmonic into the power networks, smoothing filtering, etc.

Characteristics
Uses the high quality cold rolled silicon steel sheet, low loss, good frequency characteristic;
With good linearity, overload ability because of its low magnetic flux density;
The winding current density is low and the winding loss is small;
With low noise, high corrosion resistance, high moisture resistance by using vacuum pressure impregnation;
It can be installed in the seal explosion-proof enclosure because of its low temperature rise characteristic. There will rarely have the effect on the equipment inside the shell.

Technical Parameters

Rated voltage:1140V
Frequency:50Hz/60Hz
Rated current:5A~1600A
Insulation degree:H,C
Standard:GB19212.1-2008, GB19212.21-2007, GB1094.6-2011

POWER OF CONVERTER (KW)	RATED CURRENT (A)	PN of INPUT FILTER REACTOR	DIMENSION of INPUT FILTER REACTOR(mm)	PN of OUTPUT FILTER REACTOR	DIMENSION of OUTPUT FILTER REACTOR(mm)
0.75	5	RPI-005	988244	RPO-005	988244
1.5~4	10	RPI-010	1608658	RPO-010	1608658
5.5~7.5	20	RPI-020	22010090	RPO-020	1608658
11~15	36	RPI-030	22010090	RPO-036	18010075
30	50	RPI-050	22010090	RPO-050	18010075
35	65	RPI-065	24015090	RPO-065	22010090
45	80	RPI-080	32017090	RPO-080	22010090
55~75	100	RPI-100	32017090	RPO-100	22010090
90	150	RPI-150	32017090	RPO-150	24015090
110	200	RPI-200	24015090	RPO-200	24015090
135	250	RPI-250	28017090	RPO-250	28017090
160~200	300	RPI-300	28017090	RPO-300	28017090
250	400	RPI-400	320230128	RPO-400	320230128
315	600	RPI-600	320230128	RPO-600	320230128
400	900	RPI-900	400250150	RPO-900	400250150
650	1200	RPI-1200	450250150	RPO-1200	450250150
700	1600	RPI-1600	500250175	RPO-1600	500250175

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

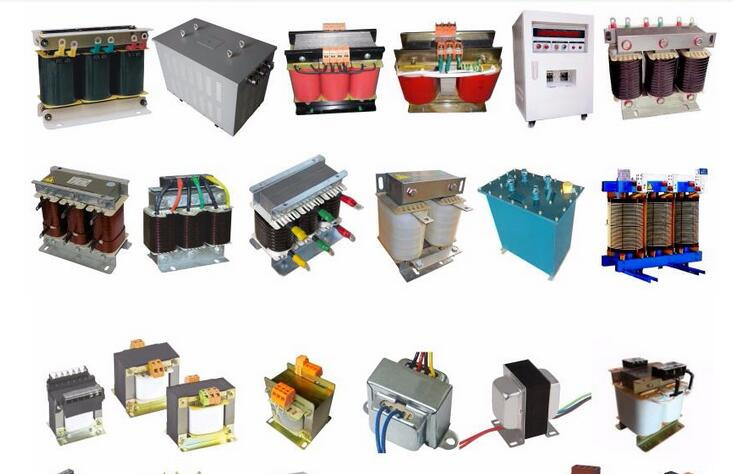

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
