| Prod Model: |
XJY-PCB 131 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
2.0mm |
| Copper Thickness: |
2oz |
| Shipping: |
DHL, UPS, TNT, FedEx, etc |
| Certificates: |
UL, RoHS, SGS, ISO9001 |
| Min. Hole Size: |
0.25mm |
| Min. Line Width: |
0.15mm |
| Min. Line Spacing: |
0.15mm |
| Surface Treatment: |
Immersion Gold |
| Board Size: |
90mm*70mm |
| Silkscreen: |
White |
| Structure: |
Multilayer Rigid PCB |
| Production Process: |
Subtractive Process |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Base Material: |
Fr4 |
Product Description

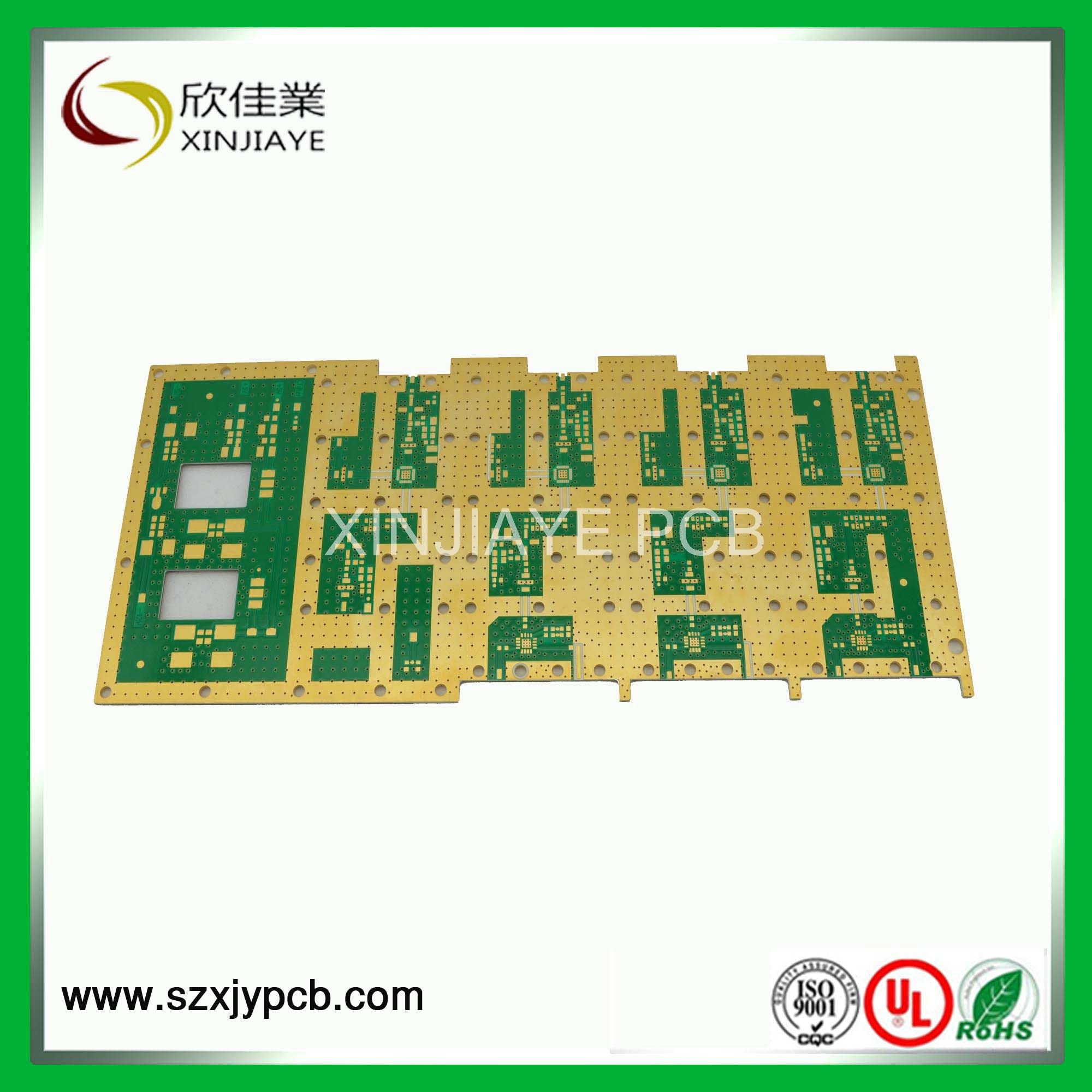

High frequency teflon pcb/ China printed circuit board factory
WELCOME TO XJY----------
Shenzhen Xinjiaye Electronics Technology Co., Ltd is a professional pcb manufacturer has over 10 years experience. We are able to offer 1 to 24 Layer PCB, ranging from pcb produce, components purchase, pcb assembly, pcb copy service.Our products are widely used in communication apparatus, automobile electronics, auto parts, computers, medical devices, light systems, outdoor systems, network devices and consumer electronics class fields. ++++====++++
Quick Details
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | XJY | Model Number: | xjy-pcb 131 |
| Base Material: | 94v0 fr4 | Copper Thickness: | 1oz | Board Thickness: | 1.6mm |
| Min. Hole Size: | 0.25mm | Min. Line Width: | 0.1mm | Min. Line Spacing: | 0.1mm |
| Surface Finishing: | immersion gold | Service: | PCB&PCBA | Standard: | IPC-A-610G |
| Tolerance of Etching: | ±1mil(±25um) | Solder mask color: | green | Twist&Wrap: | ≤ 0.5% |
| Certificate: | ROSH. ISO9001,UL Certificate | Inner packing: | Vacuum packing,Plastic bag | Outer packing: | Standard carton packing |
| Profiling punch: | Routing, V-CUT |
Features
* Low water absorption rate
* Hard to be deformed
* High mechanical strength
* Good electric performance wether under the moist or dry environment, Flame retardant grade could reach 94-V0
* High temperature resistant,high dielectric performance and mechanical processing performance.
PCB manufacture and PCB assembly
* PCB board file with parts list provided by customer
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCB
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
Testing procedures
* Visual Inspection
* Flying probe
* Impedance control
* Solder-ability detection
* Digital metallograghic microscope
*AOI (Automated Optical Inspection)
++++=====++++++
Technology capability
| Items | Single/Double-sided Board/Multilayer Board/FPC(1-24Layer) |
| Base Materials | FR-4(High TG 150°-170°),FR1,Aluminum,CEM-3,BT,94vo |
| Finish copper thickness | Outer 6 OZ,Inner 4 OZ |
| Surface finish | ENIG, ImAg, ImSn, OSP, HASL,Plating gold |
| Finished Board Size | Max Double-sided Board | 640mm χ 1100mm |
| Max Multilayer Board | 640mm χ 1100mm |
| Finished Board Hole Size (PTH Hole) | Min Finished Board Hole Size | 0.15mm |
| Conductor Width and Spacing | Min Conductor Width | 0.01mm |
| Min Conductor Spacing | 0.01mm |
| Thickness of Plating and Coating Layer | PTH Wall Copper Thickness | >0.02mm |
| Tin Solder Thickness ( Hot Air Leveling ) | >0.02mm |
| Nickl/Gold Thickness | For customer special need |
| Nickl Plating Layer | >2um |
| Gold Plating Layer | >0.3um |
| Bare Board Test | Single Side Test | Max Test Point | 20480 |
| Max Board Test Size | 400mm χ 300mm |
| Double Side Test | Max Test Point | 40960(General Use) |
| 4096(Special Use) |
| Max Board Test Size | 406mm χ 325mm |
| 320mm χ 400mm |
| Min Test pitch of SMT | 0.5mm |
| Test Voltage | 10-250V |
| Mechanical Process | Chamfer | 20°, 30°, 45°, 60° |
| Angle Tolerance | ± 5° |
| Deepness Tolerance | ± 0.20mm |
| V-Cut Angle | 20°, 30°, 45° |
| Board Thickness | 0.1-3.2mm |
| Residues Thickness | ± 0.025mm |
| Cell Paraposition Precision | ± 0.025mm |
| Tolerance of Out-shape Process | ± 0.1mm |
| Board Warp | Max Value | 0.7% |
| Optical Plotting | Max Plotting Area | 66mm χ 558.8mm |
| Precision | ± 0.01mm |
| Repetitive Precision | ± 0.005mm |
We producing single-sided, double-sided and multilayer printed circuit boards with rich experience.
High Quality, competitive Price & Best Service. We will show you we are your reliable PCB supplier.
Delivery Time for PCB board:
1) PCB production time: Sample: 3-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days
We can make sure all your boards 100% E-tested by different ways (Visual Inspection/ Flying probe/ Impedance control/ Solder-ability detection/ Digital metallograghic microscope/ AOI)
If you have interest in our product, please don't hesitate to contact us! Will reply you ASAP!
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
