| Prod Model: |
EH9335 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal AC: |
380V/220V, 400V/230V, 415V/240V 50Hz/60 |
| Processor: |
DSP-Base High Performance |
| AC-DC Power Convertion: |
Pfc + SCR Rectifier Module |
| Input P.F.: |
0.99 |
| DC-AC Power Convertion: |
Full DSP-Base IGBT Inverter |
| Output P.F.: |
0.8 |
| Normal Mode Efficiency: |
0.94 |
| Eco Mode Efficiency: |
0.98 |
| Capacity: |
20-40kVA |
| Warranty: |
One Year |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Switch Transient,Voltage Dips Sags, Thdi |
| Brand: |
Must,OEM or ODM |
Product Description

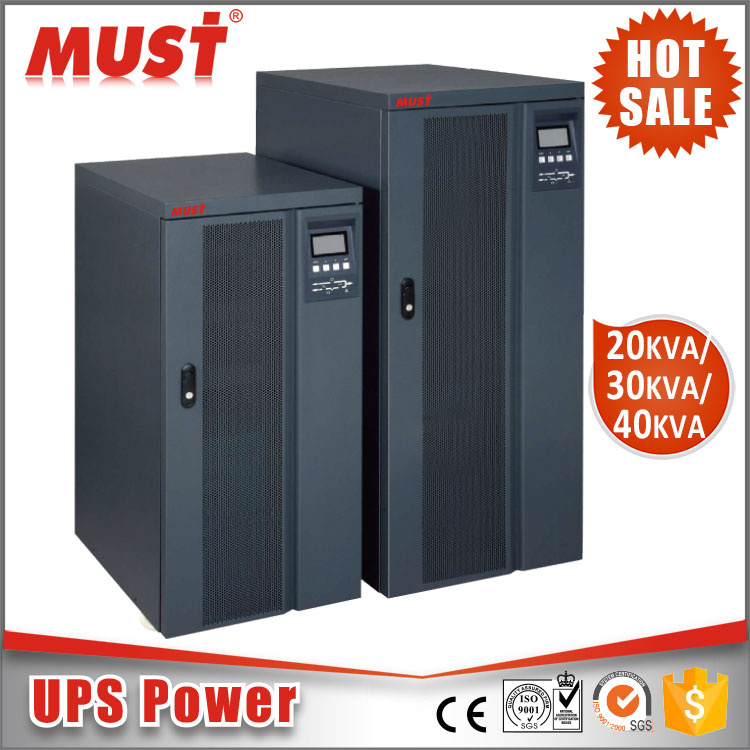

Ups power: 20-40kva three phase in and out online high frequency designFeature:
1.20-40kva ups high reliability:
Full digitalized dsp-base micro-processor control;
2. Three phase in and out ups better ac-ultilization
Power factor correction + SCR/silicon ac-dc rectifier module for high input p. F. 0.99
3. Data center ups power system in high efficiency, stability and power-saving
Three phase in and out ups' three individual phase 100% dsp-base igbt dc-ac inverter
4. Intelligent monitor high power ups' operation ac-mode, battery-mode, static bypass-mode,
Manual maintenance bypass-mode, ECO mode, EPO Emergent power off mode
380volt three phase in and out ups' three individual phase controller real time monitor ups operation,
And battery charge, discharge;
5. N+X parallel redundant ups design for flexible on-demand power expansion, hot-redundancy,
Max 8 units(6 or 7 for parallel, 2 or 1 unit for redundancy)
Standard with parallel kits, need only external parallel cable to finish N+X configure.
| MODEL | 3C3 EH 20KS | 3C3 EH 30KS | 3C3 EH 40KS |
| CAPACITY | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW |
| INPUT |
| Phase | three phase + N + G |
| Voltage | 210 - 475VAC |
| Frequency Range | 40 - 70Hz (50Hz or 60Hz automatically) |
| THDI | 3% |
| Power Factor | >0.99 |
| BATTERY |
| Type | 28/30/32 cell Vrla sealed lead acid battery |
| Backup time | Depends on capacity of external battery |
| OUTPUT |
| Voltage | 380 x (1±1%) VAC |
| Frequency | 50/60Hz |
| Phase | three phase |
| Power Factor | 0.8 |
| Over load | <125% 10min; 125-150 1min; >150% 0.5min |
| EFFICIENCY |
| AC mode | 94% |
| Battery mode | 94% |
| ECO mode | 98% |
| Fan speed control intelliqently function | yes |
| DISPLAY |
| LCD | UPS work status and operation instruction: input voltage, output voltage, current, frequency,battery voltage, charge/discharge current, and fault status |
| LED | UPS work status |
| Alarm | Buzzer and light flash |
| Communication | RS232, RS485, AS400, SNMP, EPO |
| ENVIRONMENT |
| Temperture | 0 - 40°C |
| Humidity | ≤93% [ (40±2) °C, Non - condensing ] |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
| MUST Factory Certifications |
FAQ| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: 12 Months warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6: Does the inverter connect with solar system?
A6:Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..
Q7: What kind of certificate you have ?
A7: Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, SAA, UL, etc.
