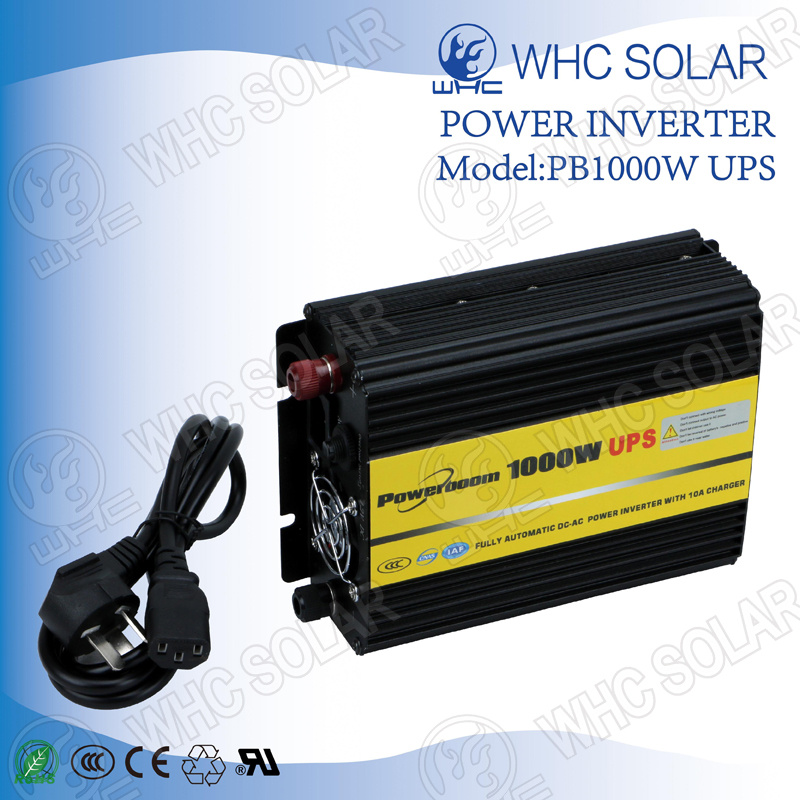

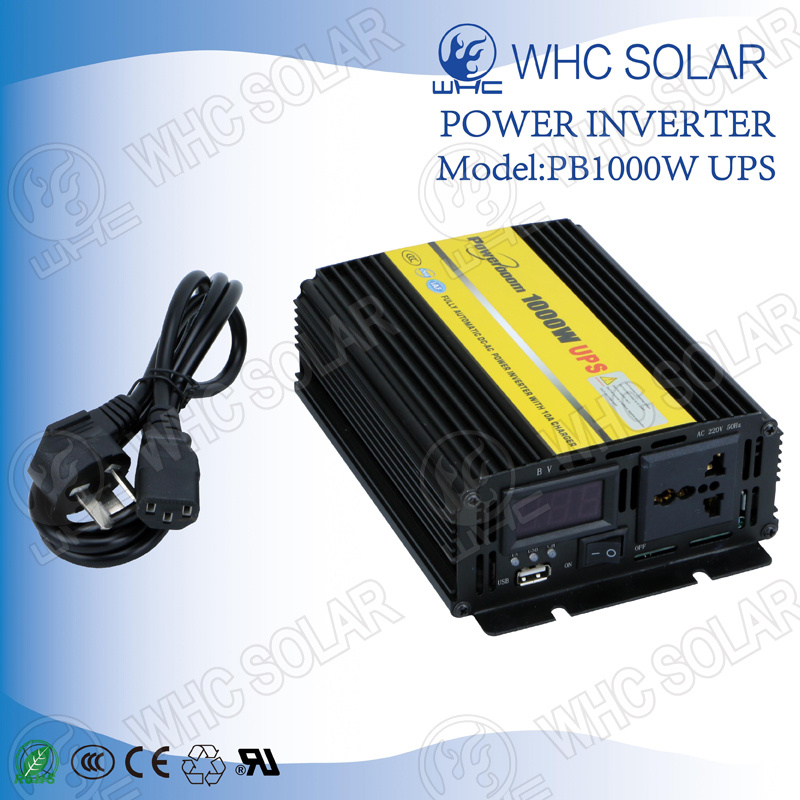

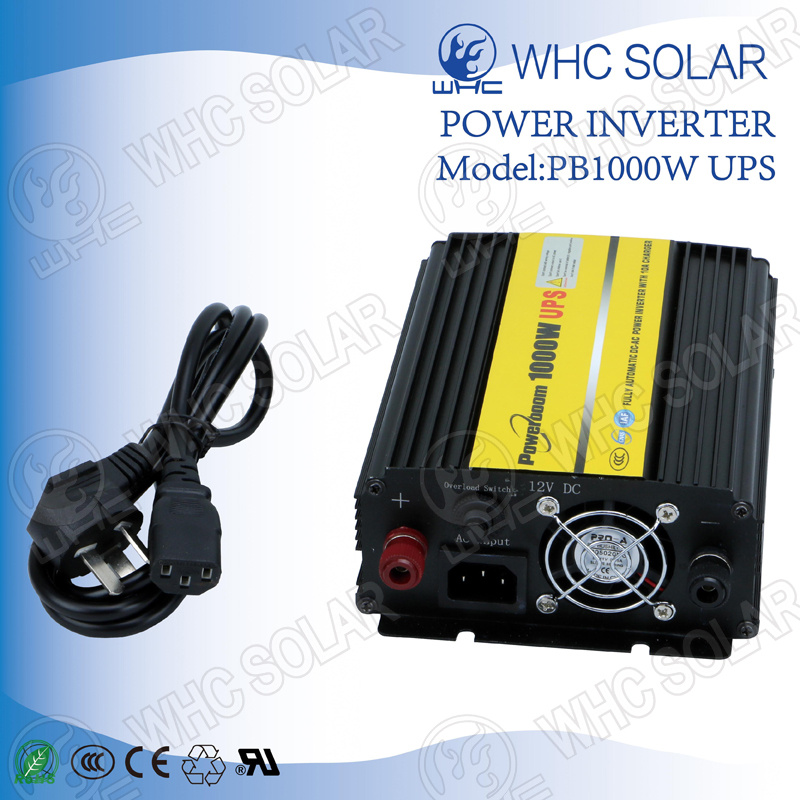

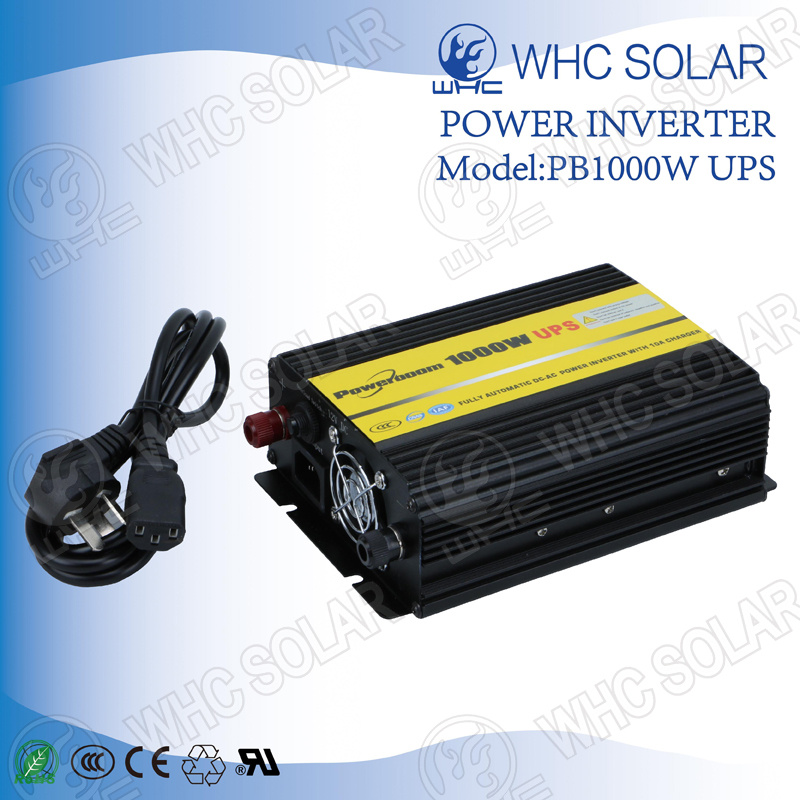

High Frequency UPS 1000W Solar Power Inverter
| Price: |
US $ 32.8-35.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PB1000C |
| Product Name: |
High Frequency UPS 1000W Solar Power Inverter |
| Color: |
Black |
| Net Weight: |
1.08 Kg |
| Gross Weight: |
1.51 Kg |
| AC Voltage: |
220V |
| Packing Size: |
275*202*120 mm |
Product Description
High frequency UPS 1000W solar power inverter
Product Description
Product characteristic1,POWERBOOM series of intelligent high-power belt charging
2,UPS function inverter power supply (inverter), high-performance power output, easy to use, connected to the car cigarette lighter or battery, you can DC12V or DC24V DC power supply, AC220V or AC110V AC power output, so that your car can also have home AC power, in the car to enjoy the convenience of home appliances and mobile business office.For your car equipment:Notebook computers, digital cameras, cell phone chargers, lighting fixtures, power tools, printers, fax machines, electric shavers, camcorders, audio, DVD players, televisions, electric fans, refrigerators, etc.Electrical equipment to provide a stable and reliable AC power.And high power with charge
3,UPS function inverter power supply high peak output, high load, with battery charging function, can drive large-scale electrical equipment, the most suitable for home, industrial, marine, communications, military and other fields;Is your family emergency, Driving out of travel, wild camping, mobile office good companion
Product FeaturesSolar Inverter with Charger:1. Fixed sine wave output
2. Instantaneous power up to 1000 W
3. Efficiency up to 92%
4. Intelligent control of the cooling fan function
5. Protection of various types:Battery low voltage shutdown / output short circuit / overload / overvoltage / over temperature / battery low voltage alarmCharger:1. Maximum charge current 6A
2. 80% efficiency
3. Mains input overload protection
4. Anti-voltage, lightning strike
5. Charging mode:3-stage charging method (constant current, constant voltage, floating charge)Product Parameters| Model | PB-1000C |
| Inverter Output | Rated Power(Typ.) | 1000W |
|
| | AC Voltage | 220V |
| | Frequency | 50HZ±0.5HZ |
| | Waveform | Square Wave under rated power(THD<3%) |
| Inverter Input | Battery Voltage | 12V |
|
| | Voltage Range(Typ.) | 10V-15V |
| | DC Current(Typ.) | 45A |
| | Load Loss | ≤0.3A |
| | Shutdown mode current | ≤55mA |
| | Max Efficiency(Typ.) | ≥92% |
| | Battery Type | Lead Acid Battery |
| Battery Output Protection | fuse | 35A*2 |
| | Battery Low Voltage Alarm | 10.5V±0.5V |
| | Battery low voltage shutdown | 9.5V±0.5V |
| | Battery high voltage protection | 15.5V±0.5V |
| | Battery reverse protection | Through internal insured |
| Output Protection | Over Temperature | 65ºC±5ºC |
| | | Green indicator light off, with alarm sound |
| | Output Short Circuit | Bright red indicator light, cancel the normal output after canceling the short circuit |
| | Over Load(Typ.) | ≥ 500W |
| | | Traffic lights alternately flash, repeated switch output, reduce the load and return to normal output |
| Charge Input | Rated Voltage | 220V |
| | Rated Efficiency | 50/60HZ±0.5HZ |
| | Full load efficiency | ≥80% |
| Charger Method | The output voltage is three-stage charging | Constant current charging current 6A charging indicator is orange |
|
| | | Constant voltage charging voltage 14.4V charging indicator is orange |
| | | Floating charge voltage 13.5V Charging indicator is green |
| Charge Input Protection | fuse | 2A*1 |
| | Over Load | 4A overcurrent protector |
| | Mains overvoltage / lightning strikes | Varistor |
| Output Protection | Short Temperature Protection | Yes |
| Conversion | Time to turn on electricity | ≤20mS |
| | Reverse reversal mains time | ≤20mS |
| USB | Output Voltage | 5V |
| | Output Current | 850mA |
| Enviroenment | Operating Temperature | 0-40ºC |
| | Operating Humidity | 10-90%RH,No Cold Storage |
| | Storage Tmperature and Humidity | 20ºC~60ºC 5-95%RH |
| Others | Weight | Net:1.08 Kg Gross:1.51 Kg |
| | Size | 203*140*64 mm(L*W*H) |
| | Packing | 275*202*120 mm(L*W*H) |
| Remarks | Unless otherwise specified, all specifications are measured at 25 ° C ambient temperature. |
Product Details
Company Information
FAQ1. Q:Are you a factory or trading company?
A:We are a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
3. Q:Do you have other products design for sale?
A:More products and designs please visit our website: http://www.whcsolar.cc
4. Q:What is your company's payment method?
A:Usually is T/T, Sample orders we recommend Western Union.
5. Q:What is your delivery time?
A:Usually 14-20 days.According to the product and quantity,delivery time will have different.
WHC SOLAR Technology Co., Ltd. is a collection development, production, and sales of photovoltaic tech enterprises, It's the first one in China dedicated solar home systems research and development, production and sales of photovoltaic enterprises, the company since its inception in 2005 established the quality of priority, the concept of brand management, and the use of simple, easy to maintain, reliable quality as a product design, which won a number of national patent and passed CE, RoHS, ISO9001: 2008 quality management system certification. Our main products include: Solar Power Systems, Solar Panels, Solar Controller, Solar Inverter, Solar Battery, Solar Energy kits etc. WHC SOLAR has advanced production testing equipment and strong R & D team, professional QC team and excellent business sales team. The company currently produces the vast majority of products covered by the requirements of customers on the use of solar home systems, and products in the industry with the most comprehensive and professional characteristics. Sold to: Africa, South America, India, Nepal, Cambodia, Bangladesh, Vietnam, the United States, Japan, Korea, and other countries and regions. WHC SOLAR as committed to providing customers: Reliable products, efficient service, as well as more specialized solutions. We can provide OEM & ODM, and product design and packaging services according to customer needs.
