| Prod Model: |
HIGH-FREQUENCY-UPS-SYSTEM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Method: |
Double Conversion |
| Waveform: |
Pure Sine Wave |
| Input: |
110V-520V |
| Output: |
Single Phase or Three Phase |
| Hz: |
50Hz or 60Hz |
| Power Factor: |
Above 0.95 |
| Parallel Function: |
Yes, up to 32 Units |
| Thd: |
<3% |
| Battery Monitoring System: |
BMS |
| Snmp: |
Yes |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Chadi |
Product Description
high frequency UPS 10kva 20kva 30kva 40kva 50kva 60kva 80kva 100kva 120kva 150kva 160kva 200kva 250kva 300kva 350kva 400kva 450kva 500kva 600kva 700kva 800kva UPS SYSTEM
CHADI UPS / Tetai Co., Ltd
Etablished in 1985, CHADI has grown into one of the pioneer suppliers of power supply system in China and undertook numerous projects for China National Defense, governments, police departments, banks, hospitals, telecom companies, Beijing Olympics,Shanghai Expo and etc..Since 1998, Beijing metro system has used CHADI power system for the communication system and hereafter the page of using foreign brands has been turned.CHADI people are keenly devoted to the research and development in the Uninterruptible Power Supply field and winning long standing reputation with reliable quality and worry-free service.
Back to the history before 1985 when CHADI's former roll was China State-owned Power Transformation Corporation, this group had been the first company and the biggest company working on the field of power transformation and power supply in China.
CHADI Milestones
In 2015, CHADI UPS is listed on the OTC market of Guangdong Shares Exchange Center
In 2014, Carrying on the UPS projects for Beijing Metro Yanfang Line and Line 8
In 2013, CHADI achieved annual turnover of 100 million USD
In 2012, CHADI is listed in OTC stock market
In 2010, CHADI UPS reliably performed in Shanghai Expo
In 2010, CHADI moved from its premise from Xiabei to Han Science Park
In 2009, CHADI UPS served for Harbin World University Games
In 2008, CHADI UPS powered up China Rocket Project Shenzhou 7
In 2007, CHADI UPS equipped to Beijing Olympics
In 2005, CHADI is authorized as the Power Lab for master graduates
In 2003, CHADI is officially awarded as National high-tech Enterprise
In 2001, CHADI UPS were applied in Hong Kong Metro
In 2000, CHADI BRAND established service network through the country
In 2000, CHADI represents as Municipal Research Center
In 1999, CHADI operates ISO9001 supervised by TüV Rheinland
From 1998 till now, CHADI provided UPS for Beijing Metro Lines
In 1997, CHADI engineered heavy duty UPS for Navy force and Air force
In 1996, CHADI became a licensed supplier to National Defense
In 1995, CHADI joint venture with Italy CHANGE
In 1993, CHADI carried cooperation with China Satellite Launching Base
In 1985, CHADI rebuilt from China Power Transformation Corporation

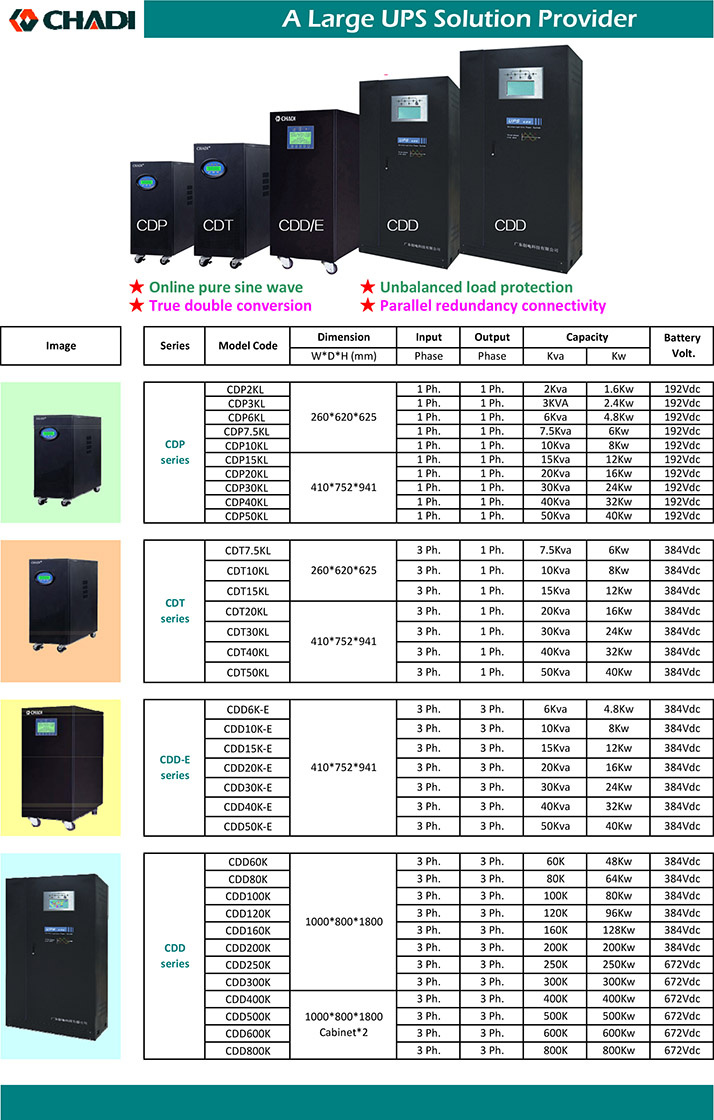

CDP Series
1. One phase in one phase out
2. Loading capacity from 2Kva to 50Kva
3. Isolated transformer input, dramatically absorb and resist to electricy surge
4. Isolated transformer outputWe use very thick plywood case with pallet base to
5. True double conversion,full time online and pure sine wave, power factor >0.9, THD<3%
6. 5 switches: Input Switch, Output Switch, Bypass Switch, Maintainance Switch and Battery Switch.Auto restart when power grid recovers
Functions:
Auto Restart, ECO Mode, DSP Controlling System, Battery Protection, Maintainance Mode, Bypass Mode, Self-Diagnosis,Faulty Alarms , RS232 Port ,Parallel Connections
CDT Series
1. 1 phase in 3 phase out
2. Loading capacity from 7.5Kva to 50Kva
3. Isolated transformer input, dramatically absorb and resist to electricy surge
4. Isolated transformer outputWe use very thick plywood case with pallet base to
5. True double conversion,full time online and pure sine wave, power factor >0.9, THD<3%
6. 5 switches: Input Switch, Output Switch, Bypass Switch, Maintainance Switch and Battery Switch.Auto restart when power grid recovers
Functions:
Auto Restart, ECO Mode, DSP Controlling System, Battery Protection, Maintainance Mode, Bypass Mode, Self-Diagnosis,Faulty Alarms , RS232 Port ,Parallel Connections
CDD-E Series
1. Triple phase in triple phase out
2. Loading capacity from 6Kva to 50Kva
3. Isolated transformer input, dramatically absorb and resist to electricy surge
4. Isolated transformer outputWe use very thick plywood case with pallet base to
5. True double conversion,full time online and pure sine wave, power factor >0.95, THD<3%
6. 5 switches: Input Switch, Output Switch, Bypass Switch, Maintainance Switch and Battery Switch.Auto restart when power grid recovers
Functions:
Auto Restart, ECO Mode, DSP Controlling System, Battery Protection, Maintainance Mode, Bypass Mode, Self-Diagnosis,Faulty Alarms , RS232 Port ,Parallel Connections
CDD Series
1. Triple phase in triple phase out
2. Loading capacity from 30Kva to 800Kva
3. Isolated transformer input, dramatically absorb and resist to electricy surge
4. Isolated transformer outputWe use very thick plywood case with pallet base to
5. True double conversion,full time online and pure sine wave, power factor >0.95/0.98, THD<2.5%
6. 5 switches: Input Switch, Output Switch, Bypass Switch, Maintainance Switch and Battery Switch.Auto restart when power grid recovers
Functions:
Auto Restart, ECO Mode, DSP Controlling System, Battery Protection, Maintainance Mode, Bypass Mode, Self-Diagnosis,Faulty Alarms , RS232 Port ,Parallel Connections , 7" Touch Screen
Brief Introduction of CHADI three phase industrial UPS
Microprocessor Control
By means of program control of innovative software, the complicated hardware circuitry is inlaid in the powerful microprocessor. Apart from reducing size, it also takes from the defective rate of UPS.
High Input Power Factor
Owe to the adoption of PFC technology at power input terminal, the input power factor is more than 0.95, thus which completely eliminates the influence to power network, so they are new generation green power.
Parallel Connectivity
Parallel connectivity is available up to 32 units, which further improves the reliability and compatibility of the UPS. This system ensures more sensitive and reliable operations of the UPS to continue feeding the load through parallel connectivity and if one unit is out of order the other will still operate and ensures a continuous supply without any interruption.
Automatic Self-diagnosis
When the UPS is powered on, it immediately performs an inspection of the components such as the inverter and the battery as well as the load, so as to detect any problem in time to avoid causing any negligence or loss.
Remote Monitoring Function
The UPS is equipped with and Intelligent Slot (SNMP slot) to allow communication among various operation systems and perform remote monitoring UPS.

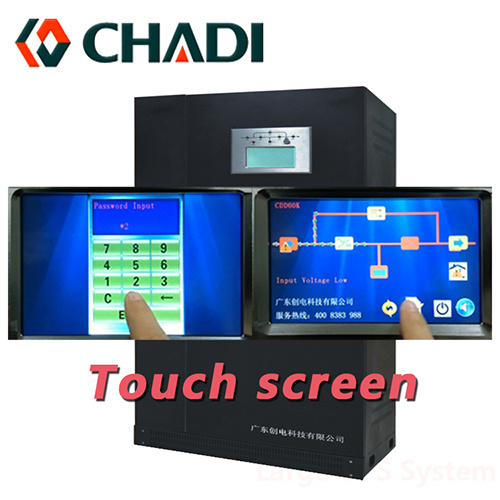

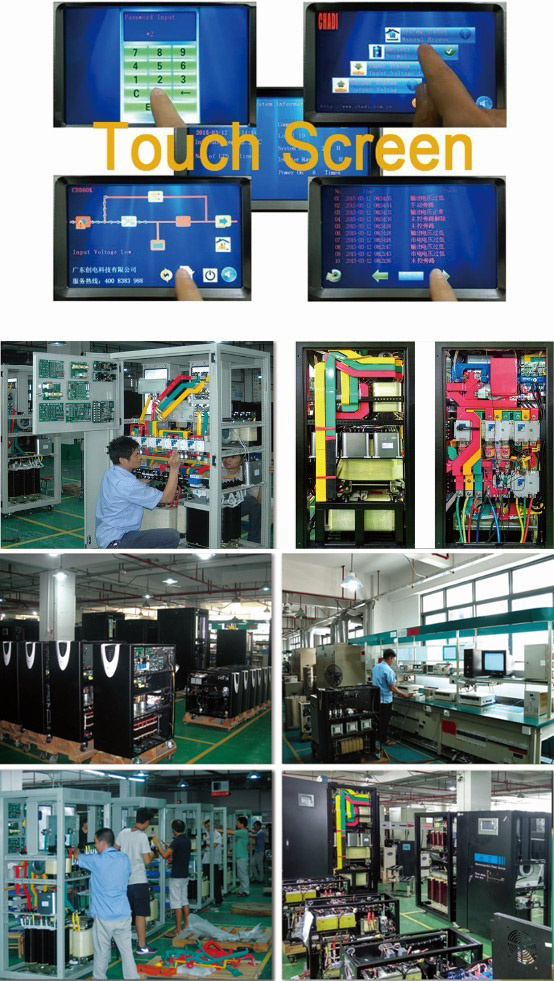

Touch Screen LCD Control
User can easily get UPS working status at any time through large-scale LCD screen display, and operate conveniently with its instruction.
Technical Data sheet of CHADI three phase industrial UPS
| MODEL | 60K | 80K | 100K | 120K | 160K | 200K | 250K | 300K | 400K | 500K | 600K | 800K |
| Rated Power | 48kw | 64kw | 80kw | 96kw | 128kw | 160kw | 200kw | 240kw | 320kw | 400kw | 480kw | 640kw |
| INPUT |
| Rated Voltage | 3 phases, 5 wired system 380V±25%/280V±25% |
| Frequency | 50Hz/60Hz ±5%(optional±10%) |
| Power Factor | ≥0.95 |
| OUTPUT |
| Rated Voltage | 3 phases 380V±1% |
| Frequency | 50/60Hz±1% (inverted tense) |
| Phase Precision | 120±10 |
| Degree of 3-phase Imbalance | <±1%(under balance load voltages);<±3%(under 50% imbalance voltages);
<±5%(under 100% imbalance loads) |
| Distortion Factor | Pure since wave,linear loads ≤2.5%;non-linear loads≤3% (full loading tense) |
| Overload Capacity | Over load 125% can last 10 minutes, over load 150% can last 20 seconds |
| Wave Crest Coefficient | 5:1 |
| BATTERY(EXTERNAL EXTRA) |
| Rated Voltage | 384VDC(optional192VDC,220VDC,480VDC) | 672VDC(optional192VDC,220VDC,480VDC) |
| Battery Nos. | 12Vdcx32 nos. | 12VDCx56 nos. |
| Battery Voltage | 12 Vdc |
| Back-up Time | extra battery(Extra position battery(standby time is determined by battery capacity)) |
| SYSTEM |
| Transfer Time | AC←→battery 0 ms;Invert←→bypass < 4 ms |
| Ingress Protection | IP20 |
| Conversion Efficiency | ≥90%(inverted and full loading);≥97%(ECO mode) |
| Noise | 58db(1 meter) | 63db(1 meter) | 66db(1 meter) | 70db(1 meter) |
| ENVIRONMENT |
| Temperature | 0ºC~45ºC |
| Humidity | 0~93% RH,non-condensing |
| Altitude | <2000m |
| SIZE |
| W×D×H(mm) | 800×600x1500 | 1000x800x1800 |
| cabinet X 1 | cabinet X 1 | cabinet X 2 |
| WEIGHT |
| N. Weight (kg) | 425 | 485 | 495 | 515 | 680 | 850 | 920 | 980 | 1100 | 1200 | 1500 | 2000 |
| * Product specifications are subject to change without further notice |
