| Prod Model: |
Modular Star Series 10-200Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charger Voltage Precision: |
1% |
| Frequency Window: |
40-70Hz |
| Thd: |
< 3% |
| Power Factor: |
> 0.99 |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

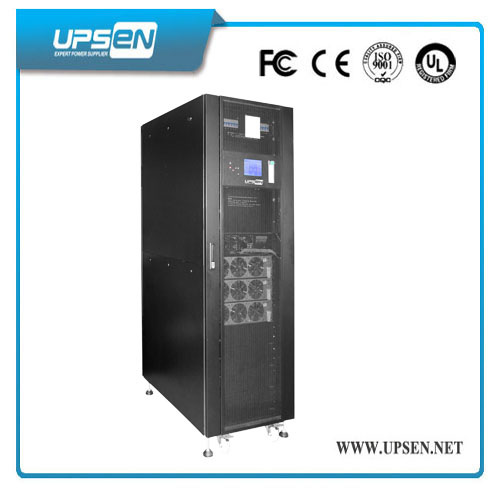

High frequncy backup 380Vac 3in/3out Modular Online UPS
Model: Modular Online UPS Power Melody Star Series (1ph in/1ph out, 3ph in/3ph out)
Key Features
1:Incredible low noise system design.
2:UPS with Modular design and hot swappable.
3:Double DSP controller for individual power module.
4:Large touch screen LCD with plenty of information.
5:Totally front access, top and bottom cable connection.
6:Inbuilt power distribution for input and output connection.
7:Friendly human machine interface with touch screen.
8:Integrated IGBT module with improved performance and reduced size.
9:IGBT modules rather than discrete components are applied in the power module.
10:Digital control for the whole parts including rectifier, inverter, charger and discharger.
11:Each individual module is configured with independent controller, avoid single point failure risk.
12:N + X redundancy, the capacity can be upgraded and expanded online based on user needs.
13:True onlin double conversion completely isolates the load from various grid faults and pollution.
Applications
Communication, Telecom, Large Data Rooms, SMT, Medical Equipment, Industry, Hospital ICU, CT ,Dsa, Nmr, Color Doppler Imagining etc.
Technical Specification
| MS Series 10K-200Kva |
Capacity |
10-200KVA |
Main Input |
Input voltage |
380V/400V/415V(line to line) |
Input frequency |
50/60Hz |
Power factor |
> 0.99 |
Input cuurent THD(Total Harmonic Distortion) |
< 3% |
Input voltage window |
-40%~+25% |
Frequency window |
40-70HZ |
Battery |
Battery voltage |
± 240VDC |
Charger power |
20%*Power |
Charger voltage precision |
1% |
Bypass |
Bypass voltage |
380V/400V/415V, three phase |
Bypass voltage window |
-20%-+15%, full load, settable |
Bypass overload capabiltiy |
150%, long time operation |
180%, shut down after 10 minutes |
> 180%, shut down after 200ms |
Output |
Output voltage |
380V/400V/415V, three phase |
Voltage precision |
± 0.5% (balance load), ± 1% (unbalance load) |
Voltage THD(Total Harmonic Distortion) |
THD< 1%(linear load), THD< 3%(nonlinear load) |
Power factor |
0.8 |
Phase tolerance |
120° ± 0.5° (balance and unalance load) |
Crest factor |
3: 1 |
Overload capabiltiy |
110%, transfer to bypass after 1hour |
125%, transfer to bypass after 10 minutes |
150%, transfer to bypass after 1 minute |
> 150%, transfer to bypass after 200ms |
System |
System efficiency |
Normal mode: 95% |
ECO mode: 99% |
Battery mode efficiency |
95% |
Display |
LCD+LED, Touch screen and keyboard |
IP class |
IP20 |
Interface (Communication Ports ) |
RS232, RS485, Dry contacts, SNMP card, EPO, Generator interface |
Installation/Connection |
Top or bottom cable connection |
Operation temperature |
0-40C |
Storage temperature |
-25~70C |
Relative humidity |
0-95% (non-comdensing) |
Noise(dB) |
< 55dB |
Weight(KG) |
6-module cabinet |
150KG |
10-module cabinet |
180KG |
Module |
10KVA: 20KG |
15KVA: 21KG |
20KVA: 22KG |
Dimension(W*D*H)(mm) |
6-module cabinet |
600*900*1600 |
10-module cabinet |
600*900*2000 |
Module |
400*600*133 (10KVA/15KVA/20KVA) |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
