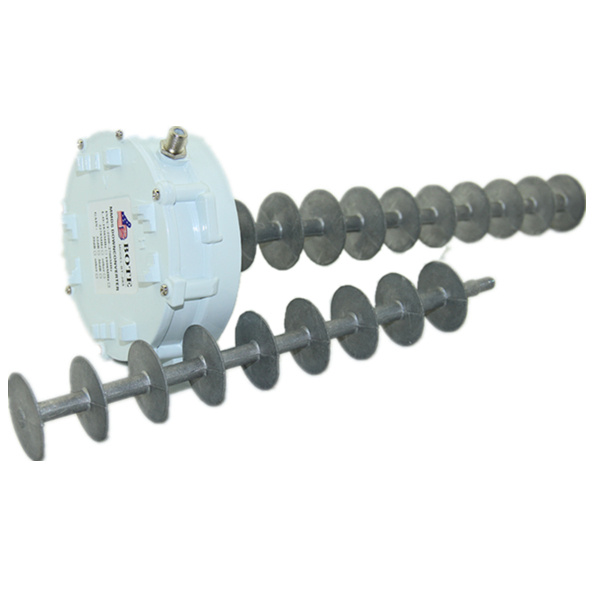

High Gain 2.5-2.7GHz MMDS Downconverter Yagi Antenna

Name: High Gain 2.5-2.7GHz MMDS Downconverter Yagi Antenna
Brand: all-electronics-online.com
SKU: 777378815
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 7.62/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT-280A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range:	2.5-2.7GHz
L.O Frequency:	1547,1638,1838,1926,1998,2030,2033,2278,2065,2388m
Gain:	32-50dB (Can Choose)
Noise:	1.0dB
Sealed:	100% Hermetic
Usage:	TV Antenna
Operating Wavelength:	Microwave
Material:	Al
Directionality:	Omnidirectional Antenna
VSWR:	<1.5

Product Description

1. Specification

Input Frequency	2500-2700Mhz
Noise Figure	1.8dB@32dB,1.4dB@36dB,1.1dB@42dB
Image Rejection	≥50dB
VSWR	1.5:1
IF Rejection	≥80dB
PCS Rejection	≥100dB
WCS Rejection	≥50dB
3 order intermodulation	≤-50dB
Conversion Gain	32dB±2dB,36dB±2dB, 42dB±2dB(as customers' requirement)
L.O Leakage Antenna Port	≤-85dBm
L.O Leakage IF-Port	≤-50dBm
L.O Phase Noise	-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset
Output P1Db	+14dBm(typical)
Gain Flatness Over Entire Range	≤±1.5dB
Gain Flatness	≤0.2dB/CHANNEL
IF Output Impedance	75ohms
DC Current consumption	14v-24v
DC Input Voltage	14v-24v
Spurious in IF Band	≤-100dBm
L.O Frequency	1547,1638,1838,1926,1998,2030,2033,2278,2065,2388MHz... (as customers' requirement)
L.O Stability	≤±30KHz
Operating Temperature	-40oC to +70oC
Input Type	BT280/:Integrated Dipole Antenna
Lightning Protection	Meets IEEE Standards
100% Hermetic	Sealed

2. Package
1). 25 pieces per carton
2). Carton size: 70*31*49cm, 0.106CBM
3). Carton weight: 21.6kg

3. FAQ:
1). Are you a factory or trading company?
Re: We are a factory with more than 19 years MMDS downconverter and LNB manufacture experiences.

2). What's the Material of your products?
Re:The material all Aluminum.

3).Can you make products as our specification?
Re: Yes, our company have a professional engineers team.We can design the products as your require

4). Can get samples before production?
Re:yes , preproduction samples will be available .

5). How does your factory do regarding about quality control ?
Re:Quality is priority.The products will be checked many times before final packing.
