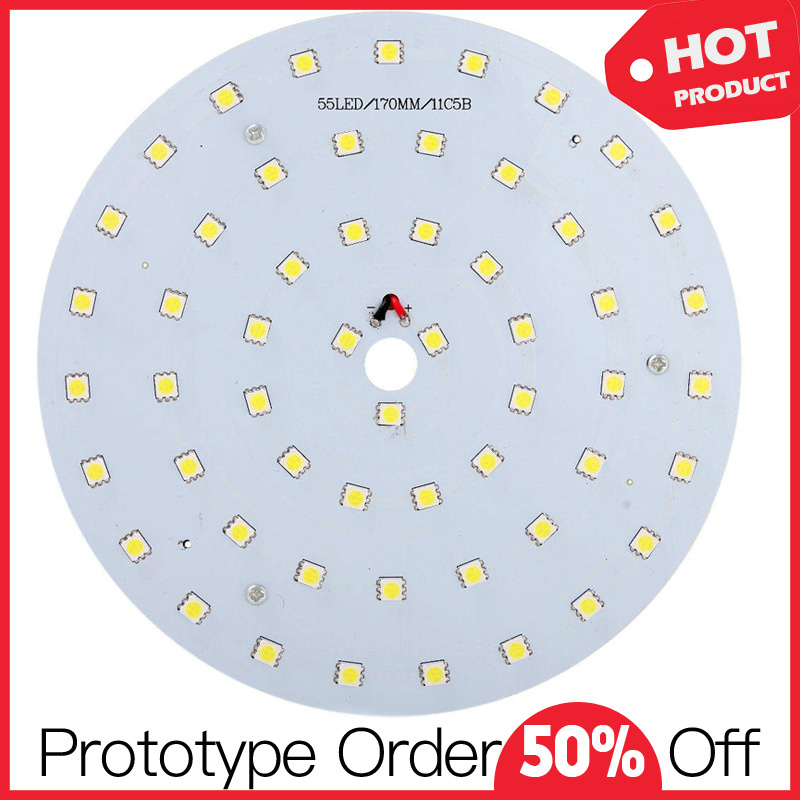

High Heat Tolerance Aluminum PCB Board for LED

Name: High Heat Tolerance Aluminum PCB Board for LED
Brand: all-electronics-online.com
SKU: 809435315
Availability: InStock
Rating: 4.8 (67 reviews)

Price:	US $ 0.08-0.16/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NOD013
Structure:	Double-Sided Rigid PCB
Material:	Epoxide Woven Glass Fabric Laminate
Production Process:	Semi-Additive Process

Product Description

Right Option of Aluminum PCB Manufacturing with Assembly Services

The following table presents some of our Aluminum Core materials:

Items	Performance Index (Measured value)
Peeling strength (n/mm)	1.8
Insulation resistance (ω)	>1*10 g
Breakdown voltage (vdc)	>2 k
Soakable soldering (°C/m)	280°C / 260°C, 1 min, no bubble & delamination
Thermal conductivity (ω/m-k)	>0.8
Thermal resistance (°C/ω)	< 1.2
Combustibility	fv-o
Dielectric constant (1mhz)	4
Dielectric loss angle (tangent)	0.03

Please check our Aluminum core PCB manufacturing capabilities in the following table:

Features	Capability
Quality Grade	Standard IPC 2
Number of Layers	4 - 24layers
Order Quantity	1pc - 10000+pcs
Build Time	2days - 5weeks
Material	Aluminum core (Domestic 1060), Copper core, FR4 covering
Board Size	Min 66mm \| Max 610610mm
Board Thickness	0.8mm - 5.0mm
Copper Weight (Finished)	0.5oz - 10.0oz
Min Tracing/Spacing	4mil/4mil
Solder Mask Sides	As per the file
Solder Mask Color	Green, White, Blue, Black, Red, Yellow
Silkscreen Sides	As per the file
Silkscreen Color	White, Black, Yellow
Surface Finish	HASL - Hot Air Solder Leveling
	Lead Free HASL - RoHS
	ENIG - Electroless Nickle/Immersion Gold - RoHS
Min Annular Ring	4mil
Min Drilling Hole Diameter	6mil
Other Techniques	Countersink holes
Other Techniques	Screw holes

About Us

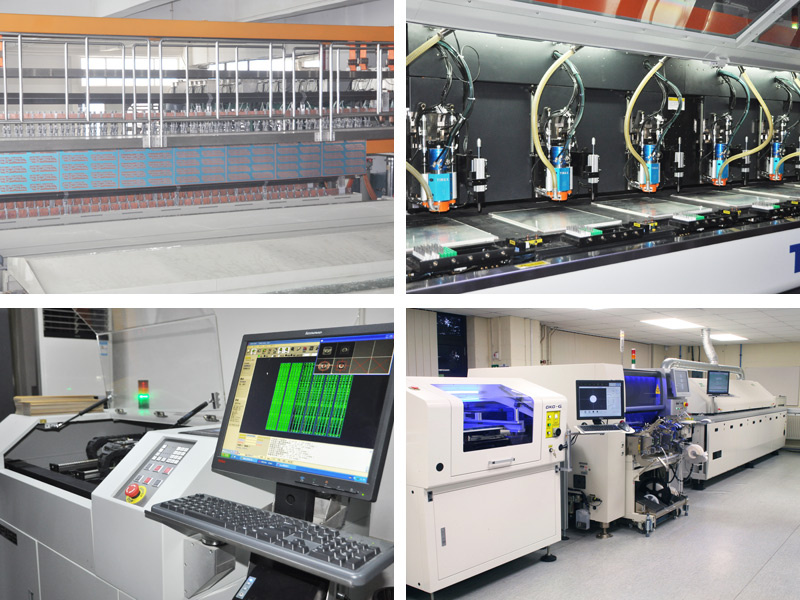

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We are offering PCB manufacturing and assembly services to following big customers all over the world.

Your aluminum PCB demand will be perfectly handled by our advanced production lines and responsive team!

Our experienced, knowledgeable engineering team takes the time to examine every custom PCB design before production to ensure it meets your specifications. Our custom PCB manufacturing capabilities enable you to get high-quality aluminum PCBs done at a competitive price.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
