| Prod Model: |
PDB-F Series 100-300w |
| Output Voltage: |
5-220VDC |
| Output Current: |
0-20A |
| Size: |
196*162*60 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
100-300W |
| Input Voltage: |
70-800VDC |
| Brand: |
Pengtu |
Product Description

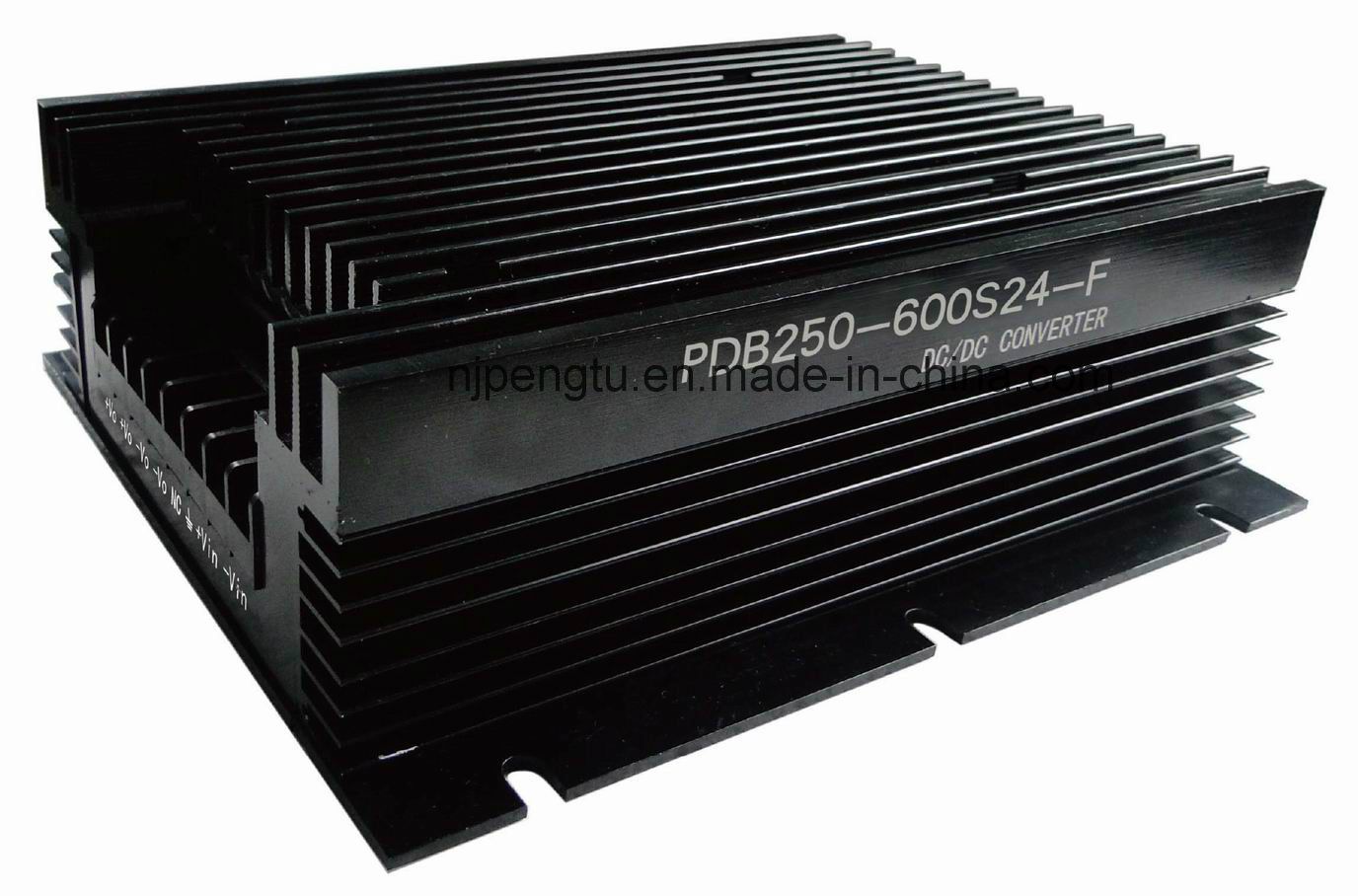

High input voltage 300vdc, 600vdc single output dc converterProduct Description Features l Wide input voltagel Design for high reliability, long lifetimel Under-voltage protection for inputl Full load efficiency up to 92%l High voltage input, high output powerl Wide range of power, easy to upgrade Input Characteristic l Inputvoltage range............ 70 ~ 140 VDC Rated value: 110VDC 200 ~ 400 VDC Rated value: 300VDC 400 ~ 800 VDC Rated value: 600VDC Reverse Protection Fuse Outside Output Characteristic l Voltage set-point accuracy .........±1%l Line regulation(main) .................±0.2%l Load regulation(main) ......….......…±0.4%l Temperature coefficient ..............…±0.01%/ºCl Output current limiting ...............… 120%(Typ)l Dynamic response ............… 400μsl Output current ...............… 5-30Al Output voltage ...............… 5-48Vl Power ..................... 100-300W General Characteristic l Switching frequency ............ 160-200 KHzl Isolation resistance ............ 200 MΩl MTBF ..................… >500000Hl Isolation voltage Input-output:>2000 VDC Input-case: >2000 VDC Output-case: >500 VDC l Environmental Characteristic Case temperature ............ Industry: -25+85ºC; Military I: -40~ +85ºC; Military II: -55~ +85ºC Storage temperature ........... Industry: -45~ +105ºC; Military: -55~ +105ºC Models | Model | Output Lines | Input Voltage (V) | Input Voltage Range (V) | Output Voltage (V) | Output Current (A) | Ripple pk-pk (mv) | Efficieency (Typ) |
| PDB100-110S05-F | Single | 110 | 70-140 | 5 | 20 | 50 | 87 |
| PDB240-110S12-F | Single | 110 | 70-140 | 12 | 20 | 100 | 88 |
| PDB240-110S24-F | Single | 110 | 70-140 | 24 | 10 | 200 | 89 |
| PDB300-110S48-F | Single | 110 | 70-140 | 48 | 6.25 | 400 | 91 |
| PDB100-300S05-F | Single | 300 | 200-400 | 5 | 20 | 50 | 87 |
| PDB150-300S12-F | Single | 300 | 200-400 | 12 | 12.5 | 100 | 89 |
| PDB240-300S24-F | Single | 300 | 200-400 | 24 | 10 | 200 | 90 |
| PDB100-600S05-F | Single | 600 | 400-800 | 5 | 20 | 50 | 87 |
| PDB150-600S12-F | Single | 600 | 400-800 | 12 | 12.5 | 100 | 89% |
| PDB240-600S24-F | Single | 600 | 400-800 | 24 | 10 | 200 | 90% |

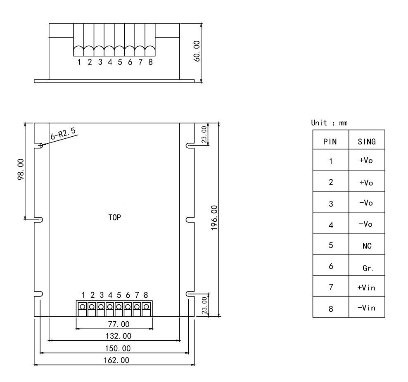

Remarks: Custom-made specifications are acceptable. Mechanical drawing and pin definition
