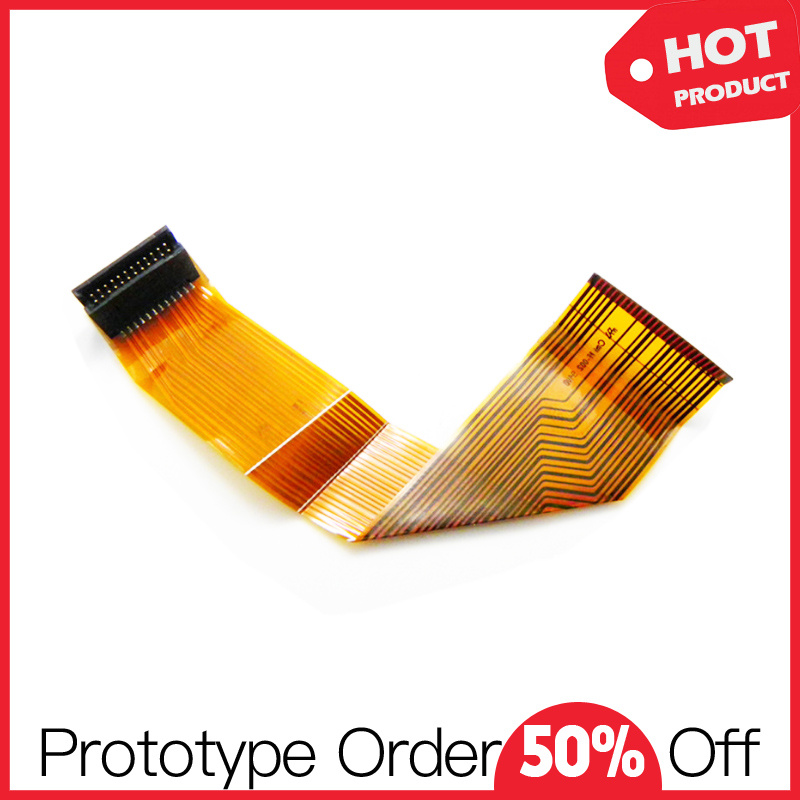

High Pass Rate Multilayer Flexible PCB

Name: High Pass Rate Multilayer Flexible PCB
Brand: all-electronics-online.com
SKU: 809442945
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 1.175-1.36/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NOD032
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste

Product Description

We are in the leading position in terms of the accuracy of equipments, the investment volume and automation. The quality management system, inspection devices and labs are all available. Along with eco-value chain with customers, the value-added services are extended among upstream and downstream business, the one-stop solution is truly realized. Besides, all the products are complying with international environmental standard (RoHS). You will enjoy our flexible PCB manufacturing services without any hassle.

Flexible PCB Manufacturing Capabilities

Material: polyimide

Layer: 1-8

Min line spacing: single-sided board 0.050mm (2mil); double-sided board 0.050mm(2mil)

Min aperture: drilling 0.15mm; punching 0.50mm

Dimensional tolerance: conductor width ±20% W≤0.5mm

±0.05mm H≤1.5mm

±0.05mm P≤25mm

±0.1mm L≤50mm

±0.05mm C≤5.0mm

Surface finishing

Chemical gold plating: Au(0.03-0.15 um); Ni(1-6 um)

Electrical gold plating: Au(>0.10 um); Ni(1-6 um)

Spraying Pure tin: Sn(7-20 um)

Electrical tin plating: Sn(7-20 um)

Soldering resistance: 260ºC/10Sccs

Peeling strength: 1.0Kg+1cn IPCTM6502.4.9
