High Performance 2-8 Core Copper Red Fire Alarm Cable

Name: High Performance 2-8 Core Copper Red Fire Alarm Cable
Brand: all-electronics-online.com
SKU: 744771395
Availability: InStock
Rating: 5 (142 reviews)

Price:	US $ 0.2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fire Alarm Cable (SH-A6001)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	RoHS
Application:	Alarm and Security
Brand:	Fulsan

Product Description

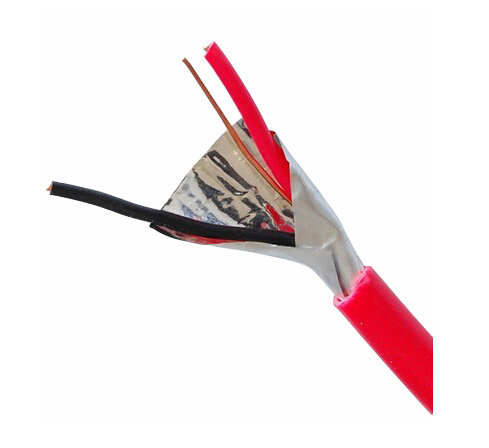

High Performance 2-8 Core Copper Red Fire Alarm Cable

Fire Alarm Cable

1)Structure: 2*1.0mm sq. With shielded
Conductor: 1.0/1.5/2.0/2.5mm sq.
Core: Can 2 cores, 4cores, 6cores.
Conductor: 2*2.5 mm2 Cu.
Shield: Aluminum foil with drain Insulation:
PVC Jacket: Low Smoke Zero Halogen material, LSZH outer sheath. These cables are produced to be able to work between 30 and 180 minutes in fire situation, This cable is available from 0.5 to 2.5 sqmm and from 2 to 5 cores.
A> Conductor: BC
B> Cable core: 2C
C> Insulation: PVC
D> rip cord: Yes
E> Shield: With Al/foil
F> Drain wire: Yes
G> Jacket:
Water resistant and sunlight resistance PVC jacket
2)Standard packing:
100m/rolll, 100m/box; 200m/roll, 305m/wooden drum

Construction: 18 AWG solid bare copper, PVC insulation, color coded, cabled, aluminum / polyester foil tape plus tinned stranded copper drain(22 AWG), yellow PVC jacket, surface printed.
This 2 conductor #18 stranded wire has an insulation thickness of 9 (PVC) mils with the jacket thickness of 15 mils (PVC). The outside diameter is. 162 inches and the net weight of 1000 feet of cable is 22 lbs. The capacitance is 53 picofarads per inch. The colors of the insulation on the 2 solid copper conductors are black and red.

Decription	Conductor Spec.	Insulation		Jacket		Insulatioon
Decription	Conductor Spec.	Nom.Thick (mm)	Nom.Diam. (mm)	Nom.Thick (mm)	Nom.Diam. (mm)	Insulatioon
BCAL/Pet , Polyester	2*1.0	0.6	2..4	1.0	6.8	Box Coil Drum Paper reel Plastic reel Wooden reel
	2*1.5	0.7	2.8	0.8	7.2
	2*2.5	0.8	3.4	1.0	9
	4*0.5	0.4	1.6	1.2	6.2
	4*1.0	0.6	2..4	0.8	7.4
	4*1.5	0.7	2.8	0.8	8.3
	4*2.5	0.8	3.4	1.1	10.3

Established in 1992, Ningbo Fulsan Trading Co., Ltd. is a modern enterprise specialized in research, develop and produce all kinds of telecommunication products. It's main products include HDMI cable, Scart Cable, computer connector, Audio and Video Cable, USB cable, and other accessories. The products are totally exported to the world market especially to US., Europe, Middle East Asia, Russia and has earned high reputation from our customers.

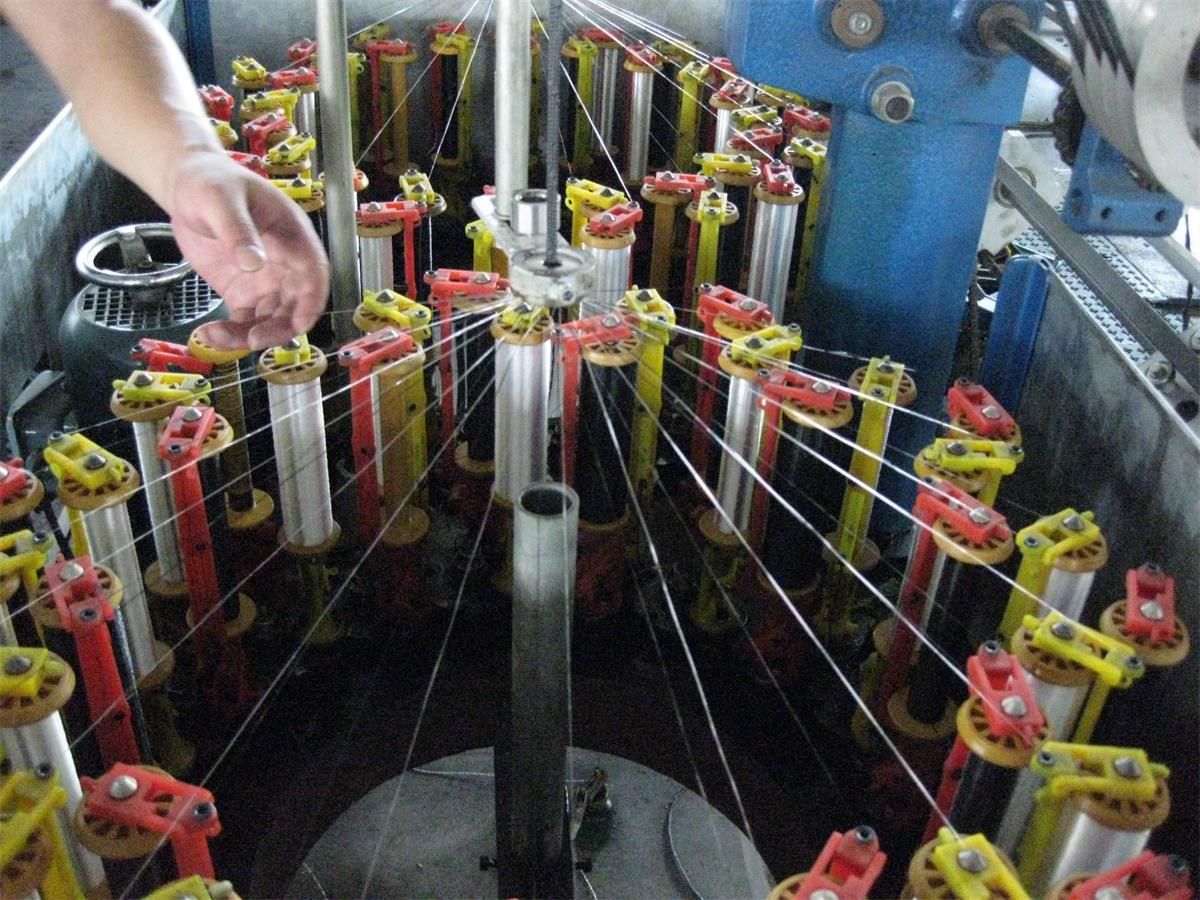

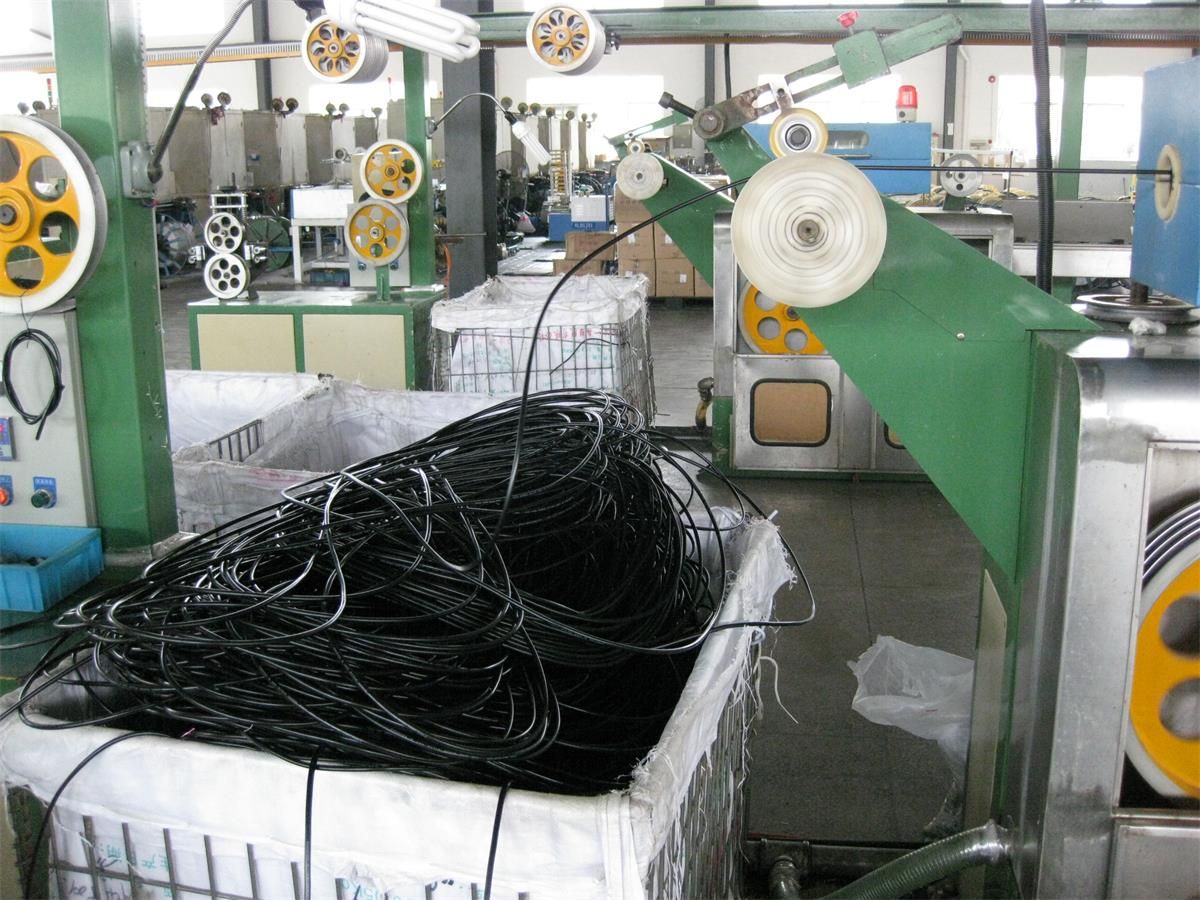

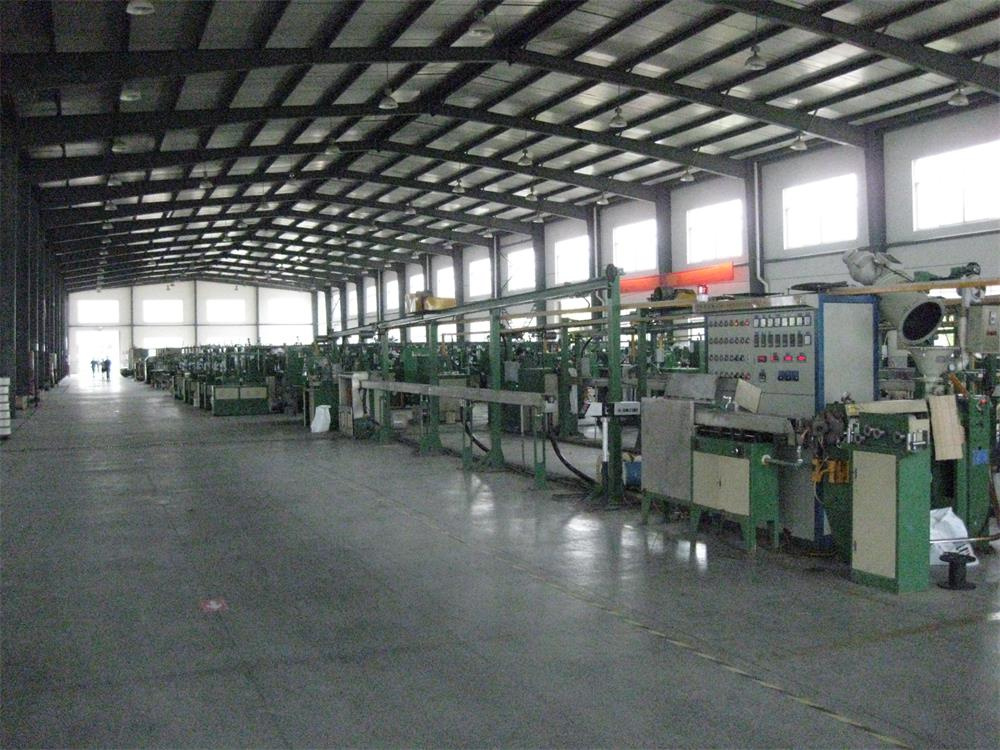

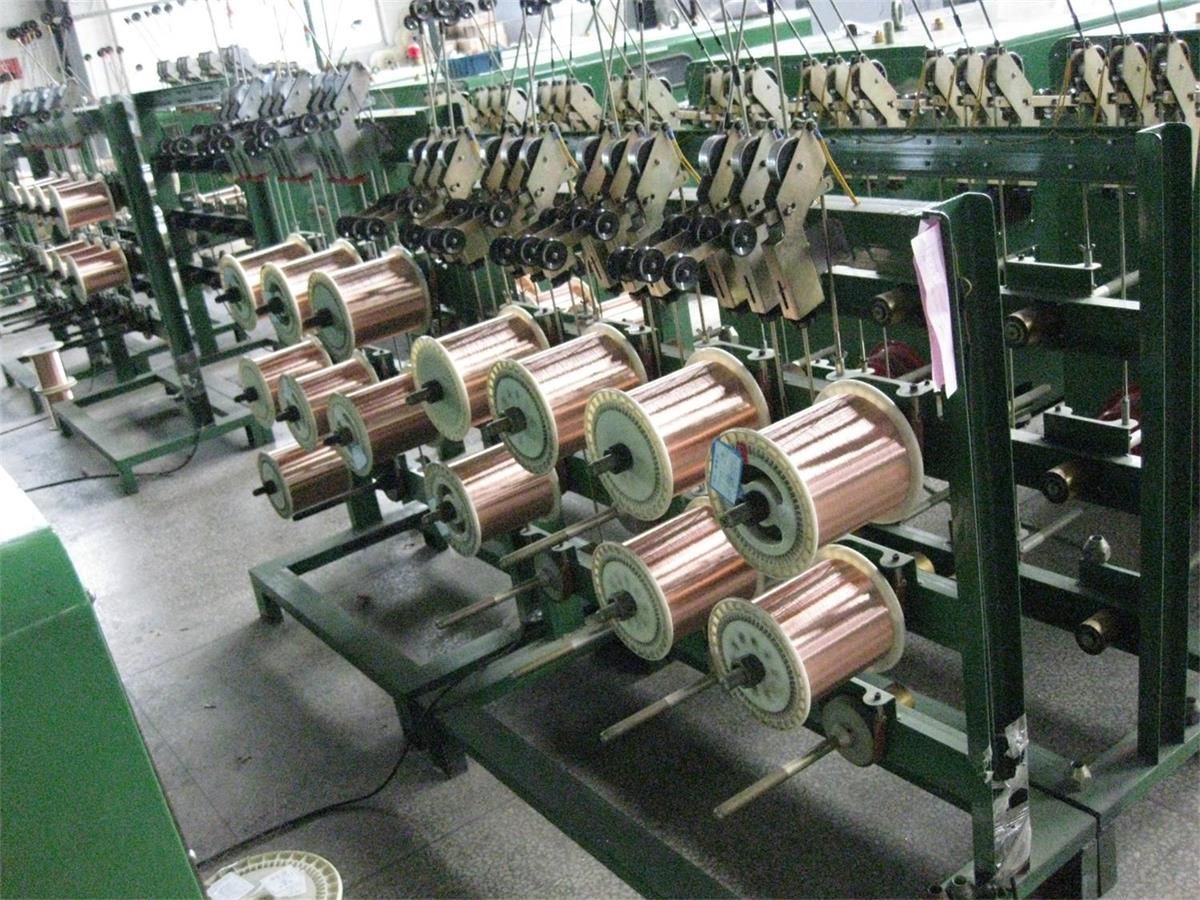

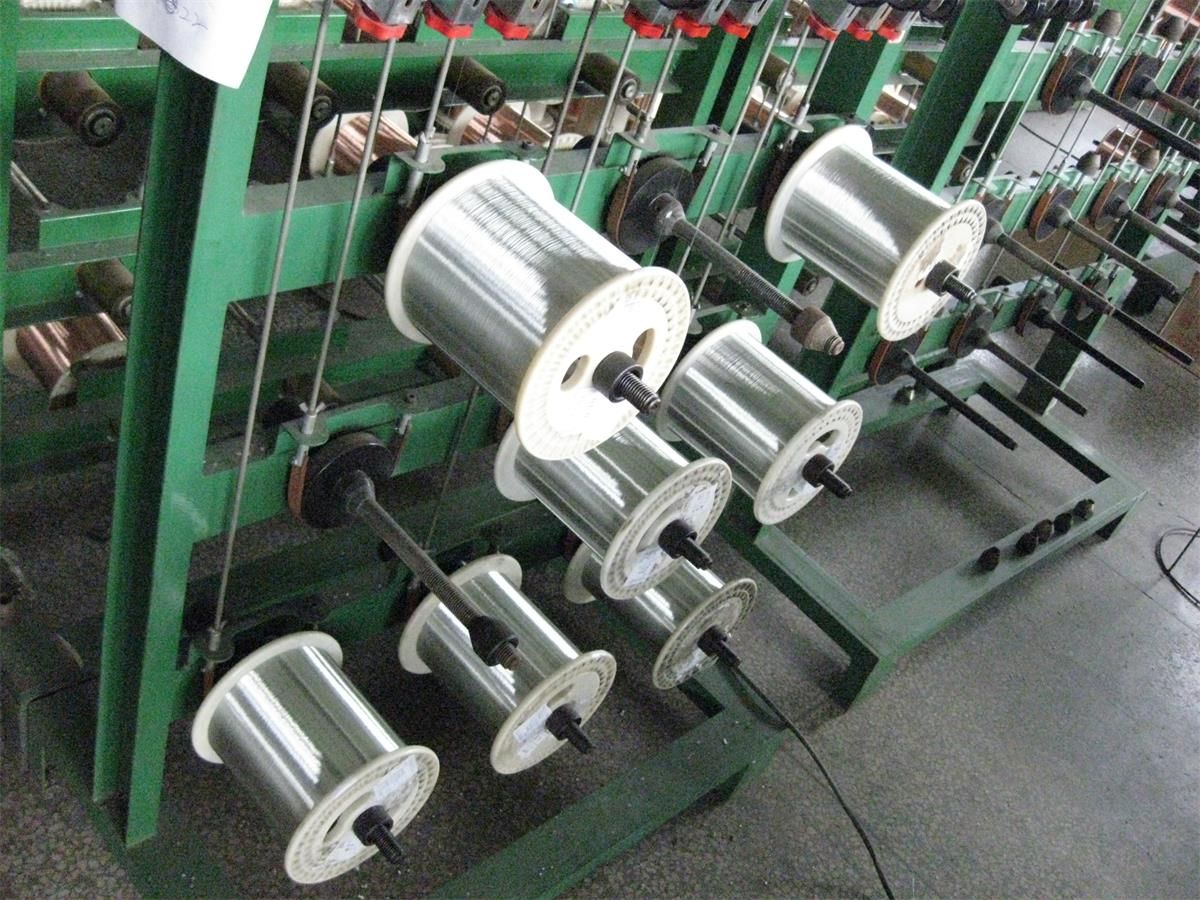

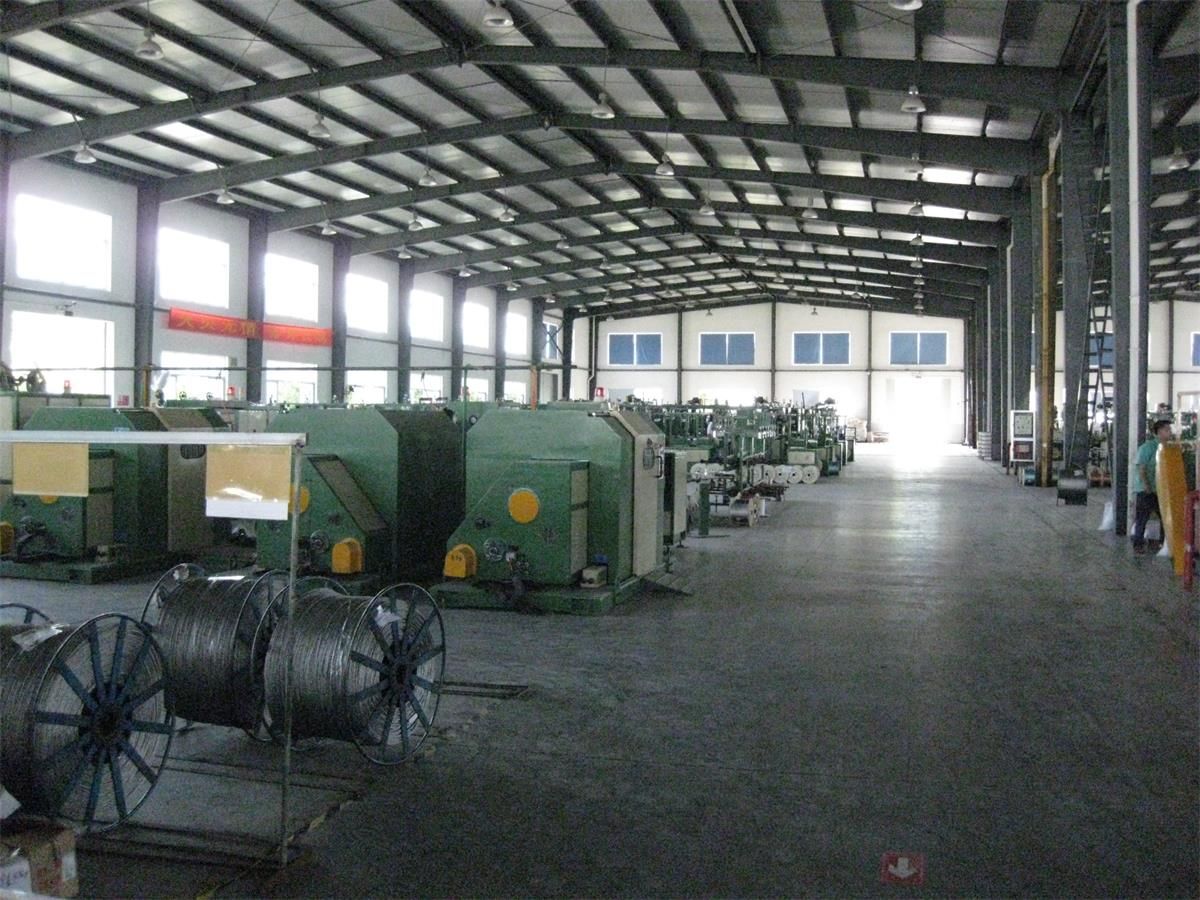

The company owned well-trained and skillful personnel, including outstanding engineer and technician team and managers and quality control team as well as 1200 workers. The company occupied 200, 000 sqms working area and has introduced many modern and advanced manufacturing machines and inspection equipment. The total assets has reached 52 million and was honored as Hi-Tech Enterprise and Strenth model factory by Zhejiang Government.

The principle of our company is " Guided by science and technology, take production and quality as the foundation, investment and management as the guarantee, with the backing of brand and marketing for omnidirectional development"...The company has passed the certification of ISO9001quality system and ISO14001 environment system. All the products are accordance with RoHS Standard while the HDMI cable also got the HDMI Association certification. Our brand " FULSAN" Has won a good reputation among our customers.

Looking into the future, we will always adhere to the managing idea of " Developing the industry, serving and repaying the society". We are willing to advance hand in hand with friends from all walks of life for mutual benefit.
