High Performance 50ohm Coaxial Cable (LMR240-CCS-TCCA)

Name: High Performance 50ohm Coaxial Cable (LMR240-CCS-TCCA)
Brand: all-electronics-online.com
SKU: 765872295
Availability: InStock
Rating: 5 (107 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR240-CCS-TCCA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR240-CCS-TCCA RF Coaxial Cable
Inner Conductor:	1.42 Copper Clad Steel
Dielectric:	3.81 Foam PE
First Shield:	3.94 Bonded Aluminum Foil
Second Shield:	4.52 TCCA Wire Braid
Jacket:	6.10 PVC/PE/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	TCCA Wire Braid
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	Copper Clad Steel
Model:	LMR240-CCS-TCCA
Brand:	Ottocable

Product Description

Communications RF Coax Cable

LMR240-CCS-TCCA

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Copper Clad Steel Foam PE Bonded Aluminum Foil TCCA Wire Braid PVC/PE/LSZH	1.42 3.81 3.94 4.52 6.10	Per customer's requirements: Out conductor could be 96 ,112or 128 TCCA wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)

50±3
79.4
84.0
≥20
≥90
1500.0
-20 to +70
-20 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	10.5 13.0 18.3 25.8 33.6 36.9 39.1 44.6

Application:

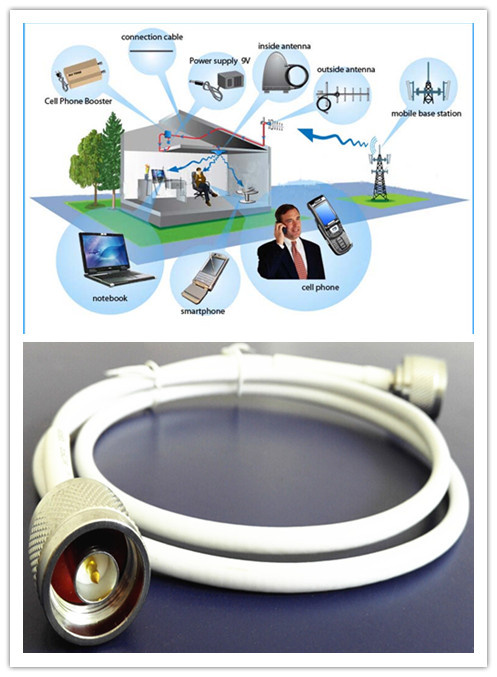

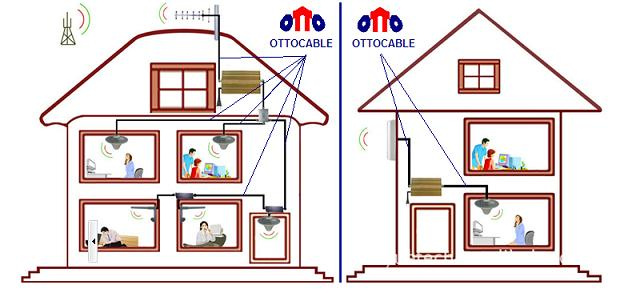

Mainly be used in 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
