High Performance 50ohms Coaxial Cable 4D-Fb

Name: High Performance 50ohms Coaxial Cable 4D-Fb
Brand: all-electronics-online.com
SKU: 619755872
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 0.1-0.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	1.42 Bc/CCS
Dielectric:	3.80 Foam PE
First Shield:	3.94 Bonded Aluminum Foil
Second Shield:	16/6/0.12 Tinned Copper Wire Braid 70% Coverage
Jacket:	6.10 PVC/PE
Ottocable:	4D-Fb
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tinned Copper Wire
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	Bc/CCS
Model:	4D-Fb
Brand:	Ottocable

Product Description

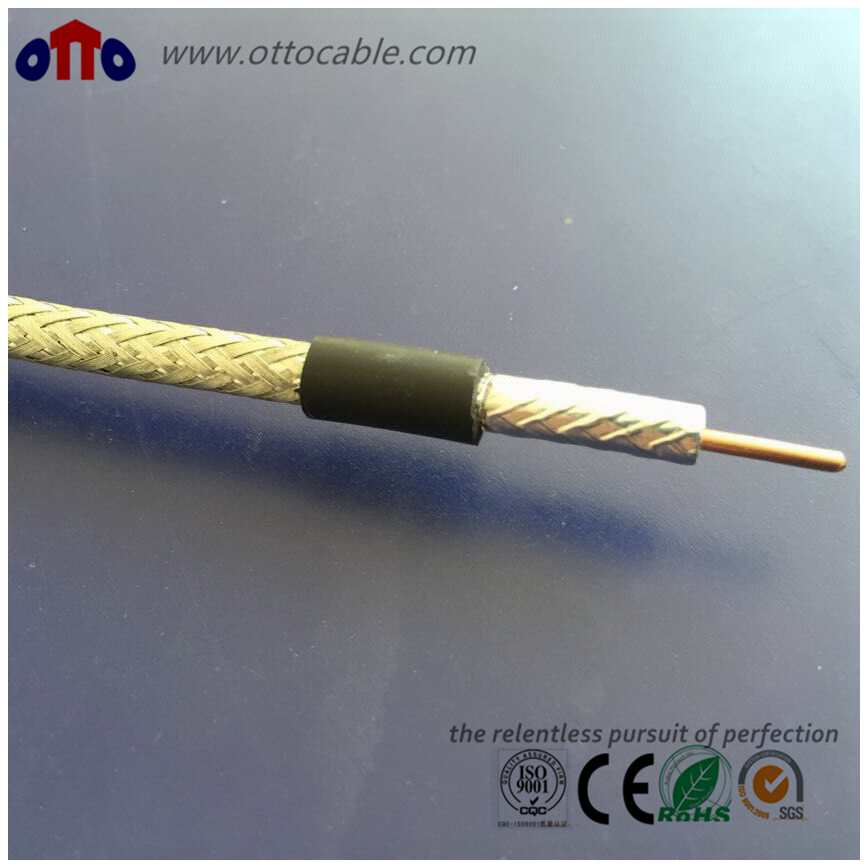

RF Coaxial cable(4D-FB)

Application
Mainly be used in4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Construction
Inner Conductor: 1.42 BC/CCS
Dielectric: 3.80 Foam PE
First Shield: 3.94 Bonded Aluminum Foil
Second Shield: 16/6/0.12 Tinned Copper Wire Braid 70% coverage
Jacket: 6.10 PVC/PE

RF Coaxial cable(4D-FB)
Construction
Item	Material	Diameter(mm)
Inner Conductor	Bare Copper/CCS	1.42
Dielectric	Foam PE	3.80
First Shield	Bonded Aluminum Foil	3.94
Second Shield	Tinned Copper Wire Braid 70% coverage	16/6/0.12
Jacket	PVC/PE	6.10

Electrical Characteristics
Impedance(Ω)		50±3
Capacitance(pF/m)		82±2
Velocity of Propagation(%)		81.0
Dielectric Strenght(kv)		1.6
V.S.W.R		≤1.2
Return Loss		≥20
Screening Effectiveness(dB)		≥85
Min Bending Radius(mm)		30.0
Operating Temperature(0C)		-25 to +70

Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

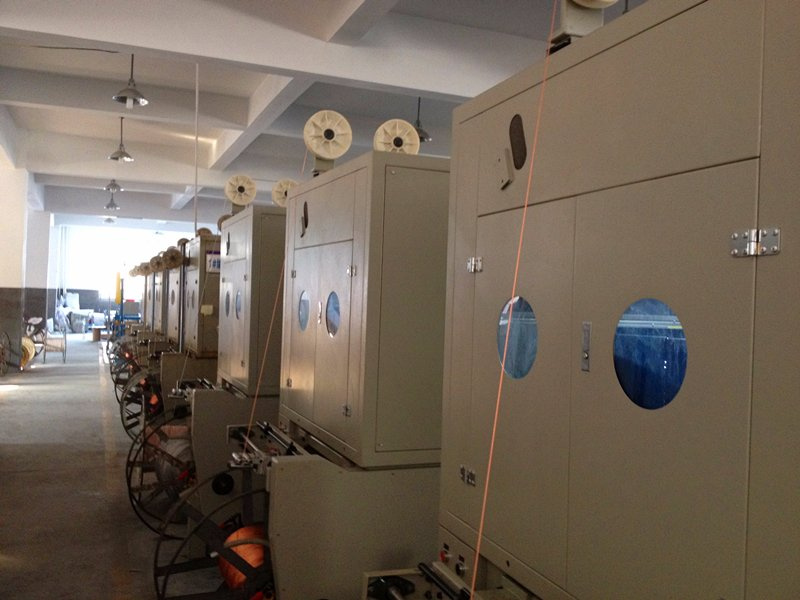

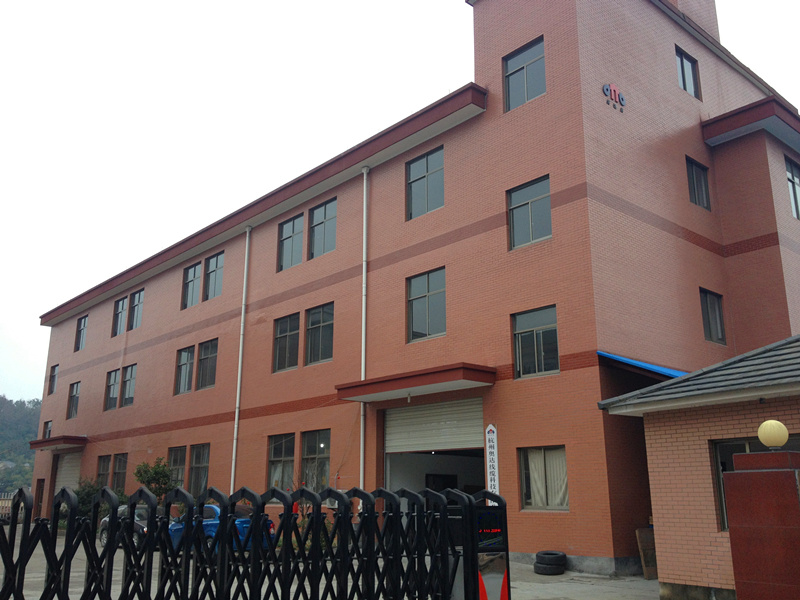

Company Information

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
