High Performance 50ohms Coaxial Cable (7D-CCA-TC)

Name: High Performance 50ohms Coaxial Cable (7D-CCA-TC)
Brand: all-electronics-online.com
SKU: 766120295
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	7D-CCA-TC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	7D-CCA-Tc
Inner Conductor:	2.60 CCA
Dielectric:	7.30 Foam PE
First Shield:	7.40 Bonded Aluminum Foil
Second Shield:	8.00 Tc Wire Braid
Jacket:	9.80 PVC/PE/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Wire Core Material:	CCA
Model:	7D-CCA-Tc
Brand:	Ottocable

Product Description

7D-FB

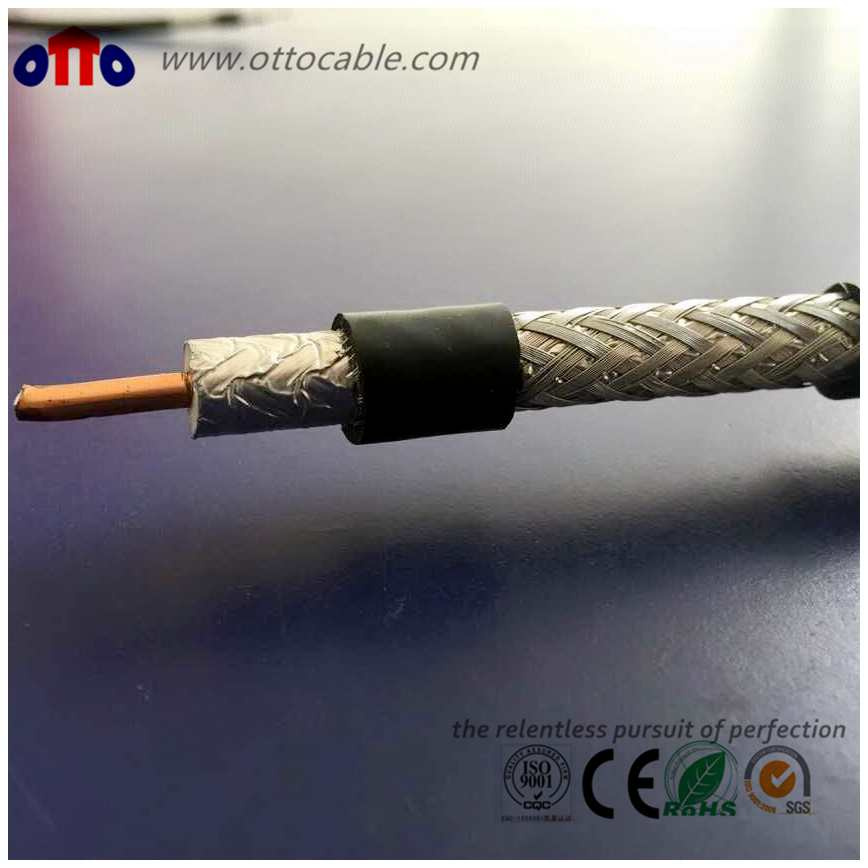

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	CCA Foam PE Bonded Aluminum Foil TC Wire Braid PVC/PE/LSZH	2.60 7.30 7.40 8.00 9.80	Per customer's requirements: The second shield could be 112,128 or 144 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
82.0
1.6
≤1.3
≥20
≥90
45.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
1200 1500 1800 1900 2000 2200 2500 3000	16.8 19.2 21.4 22.2 23.2 23.9 25.6 29.5

More Ideas
1)  If require conventional construction and materials, please click 7D-BC-TC;
2)  If require lightweight and weldable shield,please click 7D-BC-TCCA or 7D-CCA-TC;
3)  If require lightweight and lower price,please click 7D-CCA-AL;
4)  For more 7D-FB assemblies,please click 7D ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

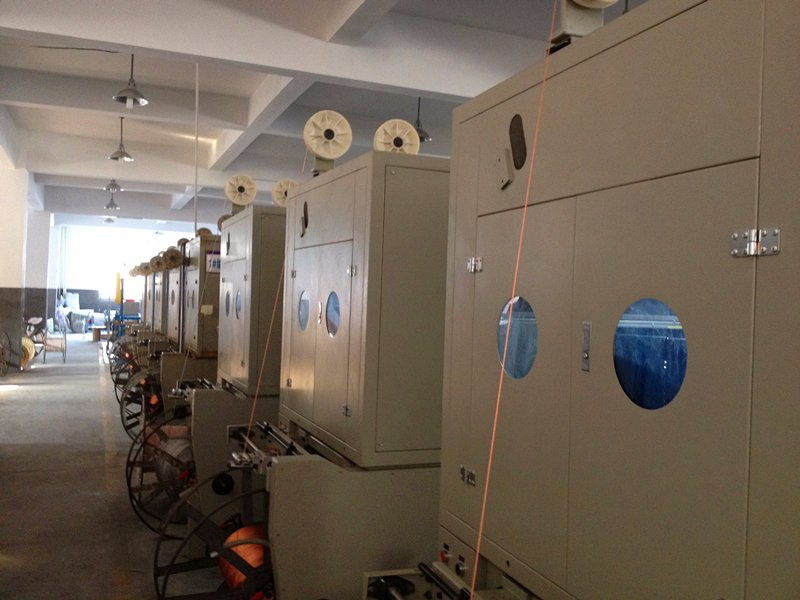

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

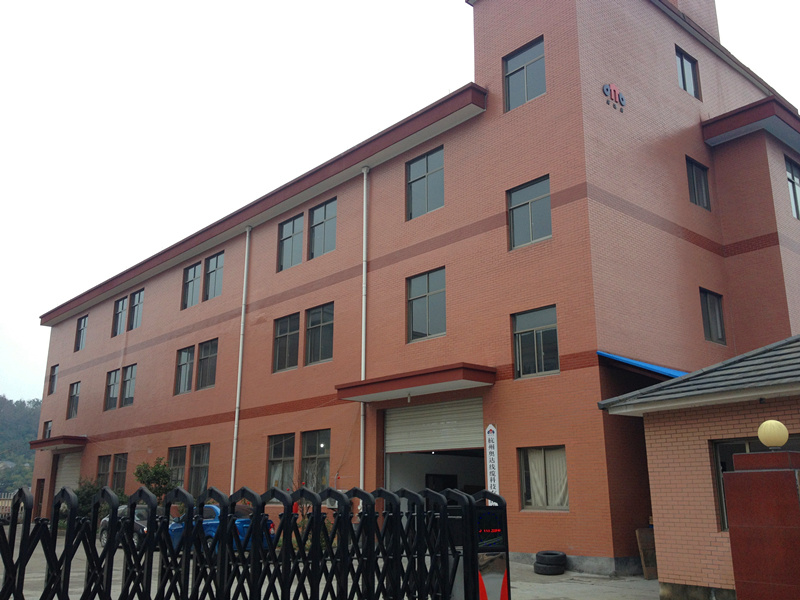

Company Information

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
